Vacuum Switch: Locations

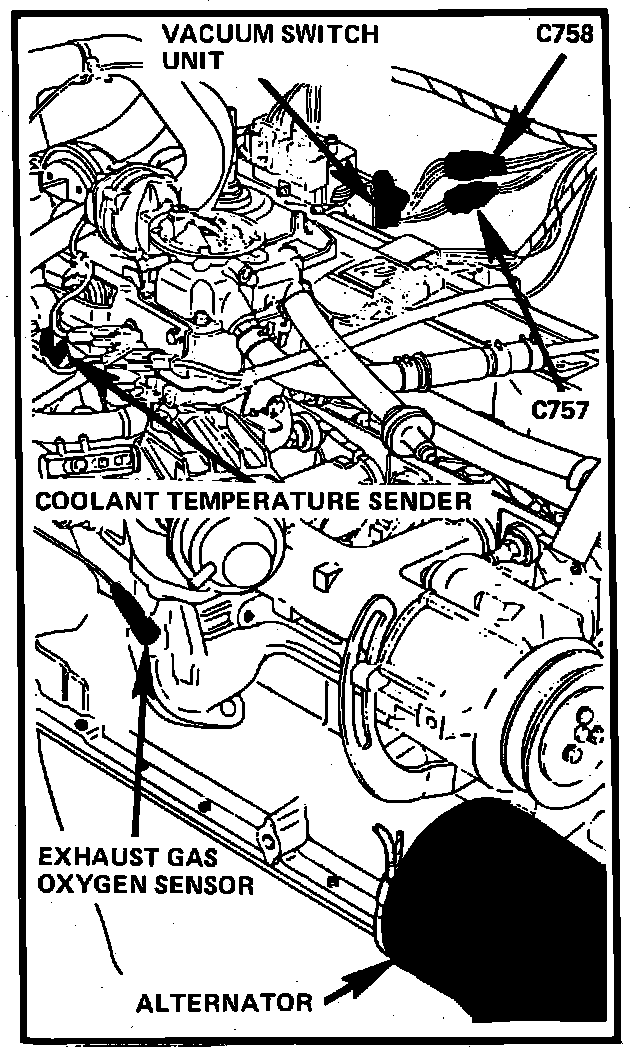

RH Side Of Engine.:




Center Rear Of Engine On Valve Cover

Applicable to: 1982-83 6-300/4.9L Engine

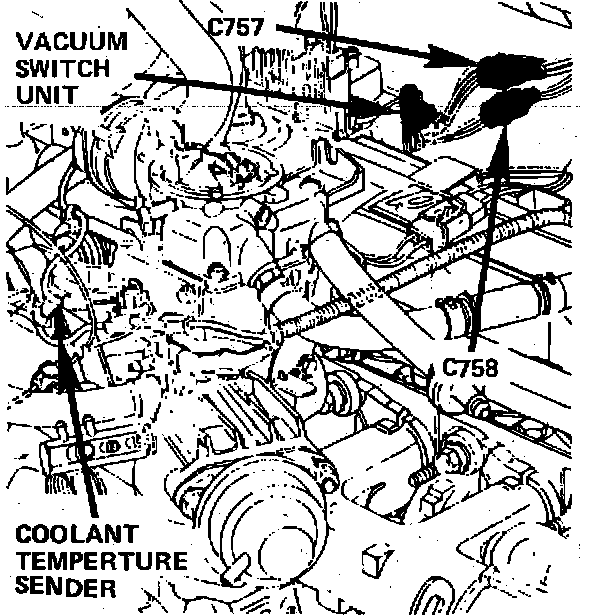

RH Side Of Engine.:




LH Side Of Engine.:




Center Rear Of Engine On Valve Cover

Applicable to: 1981 6-300/4.9L Engine w/MCU

LH Side Of Engine.:




Center Rear Of Engine On Valve Cover

Applicable to: 1982-83 6-300/4.9L Engine w/MCU
