Exploded View Non-Feedback Carburetor

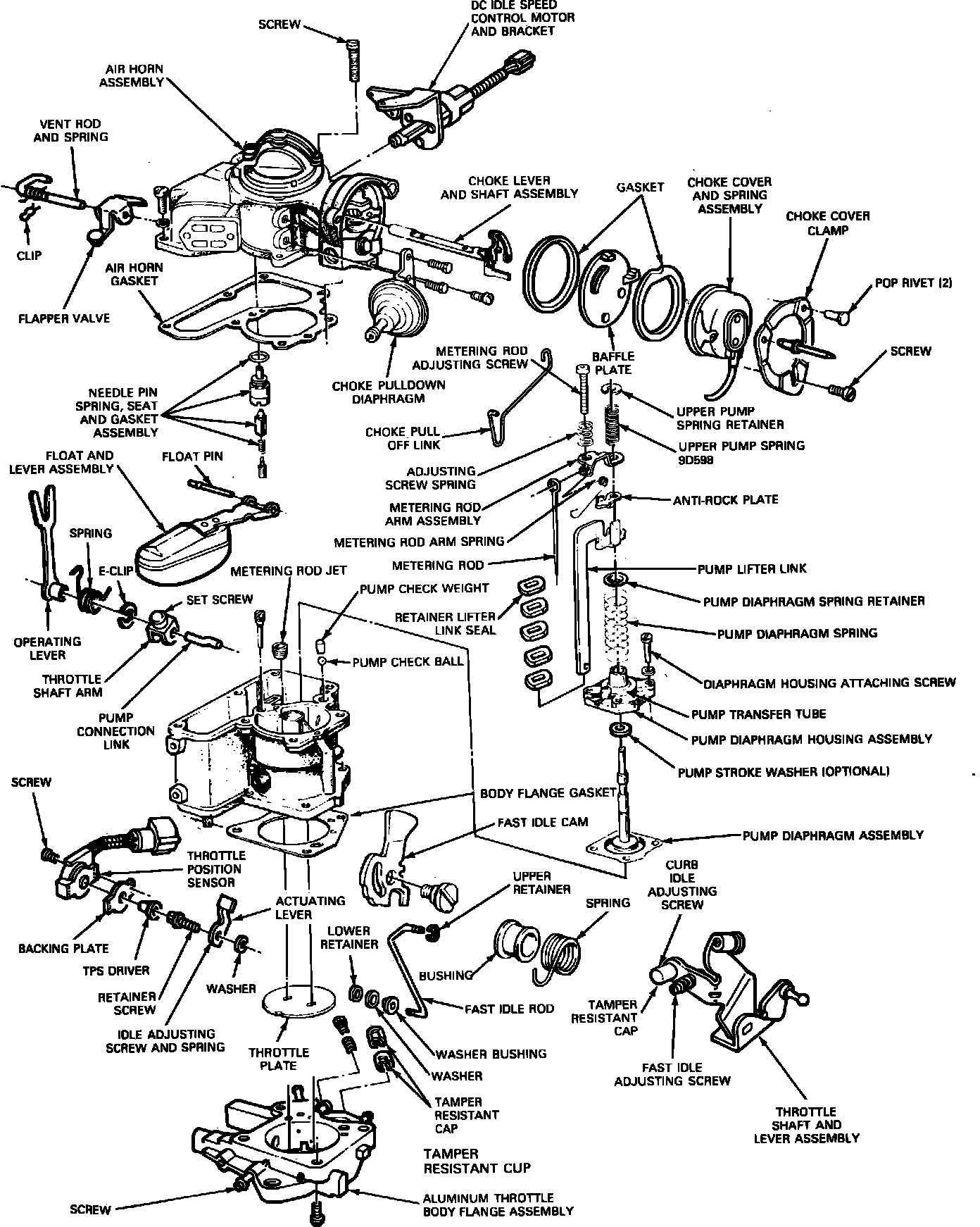

Fig. 1 Carter YFA non-feedback carburetor exploded view. 1983 - 86 shown. 1982 similar.:
