Home >> Ford >> 1983 >> E 100 Van V8-351 5.8L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations >> Engine Compartment Reference Diagrams >> Evaporative Control System Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

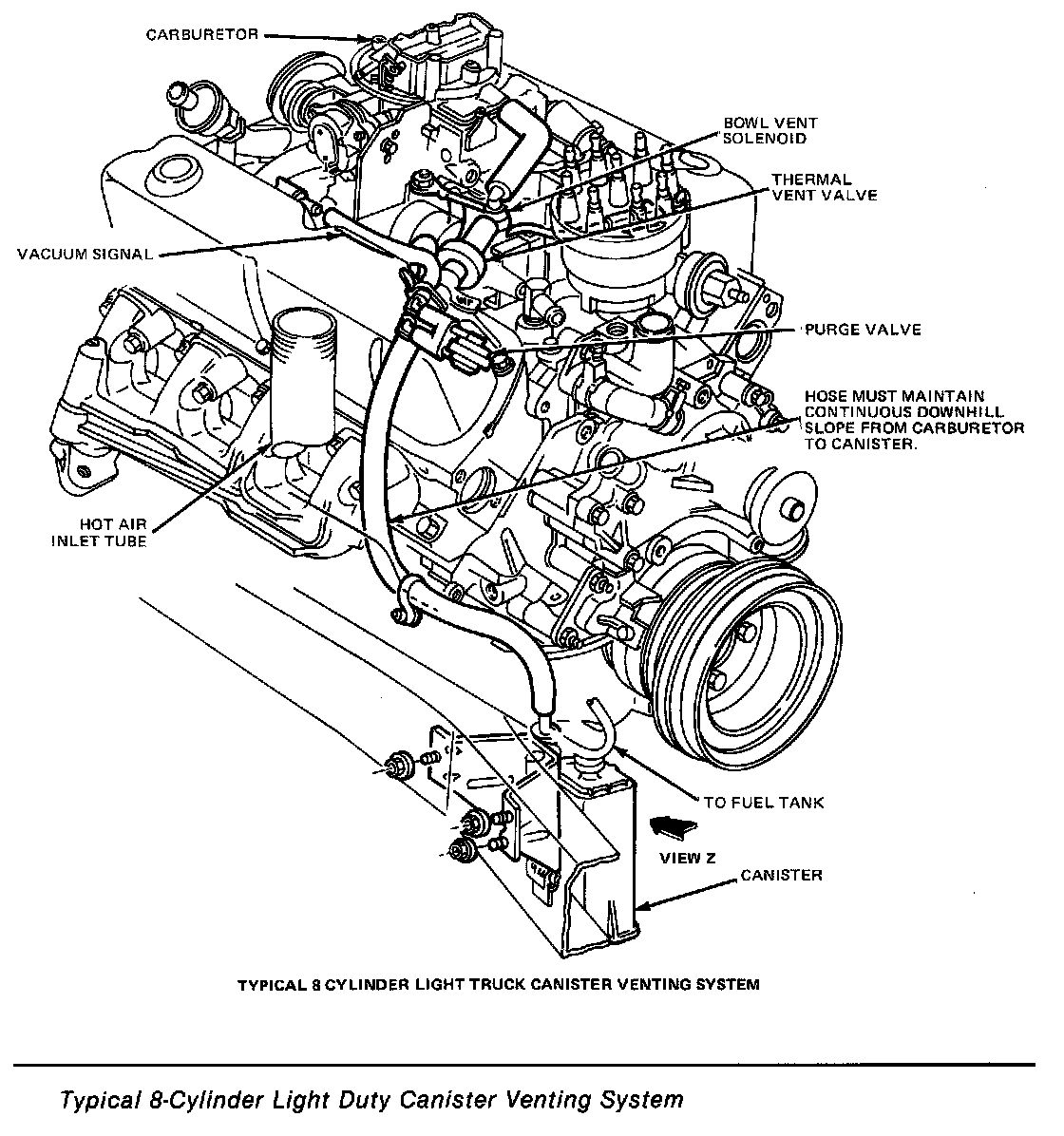

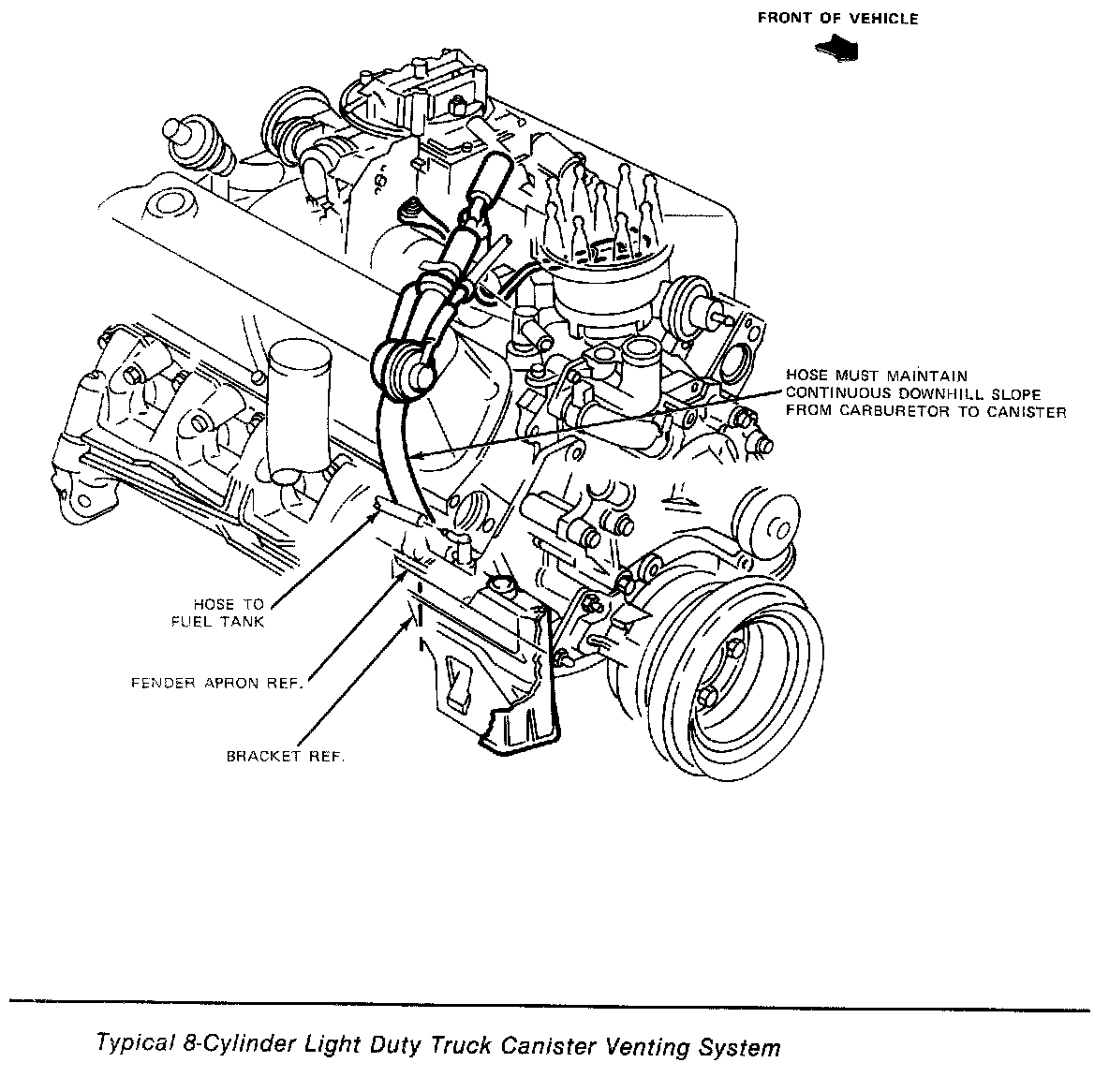

Evaporative Control System Components






1982







1983
