EEC-IV System Component Location

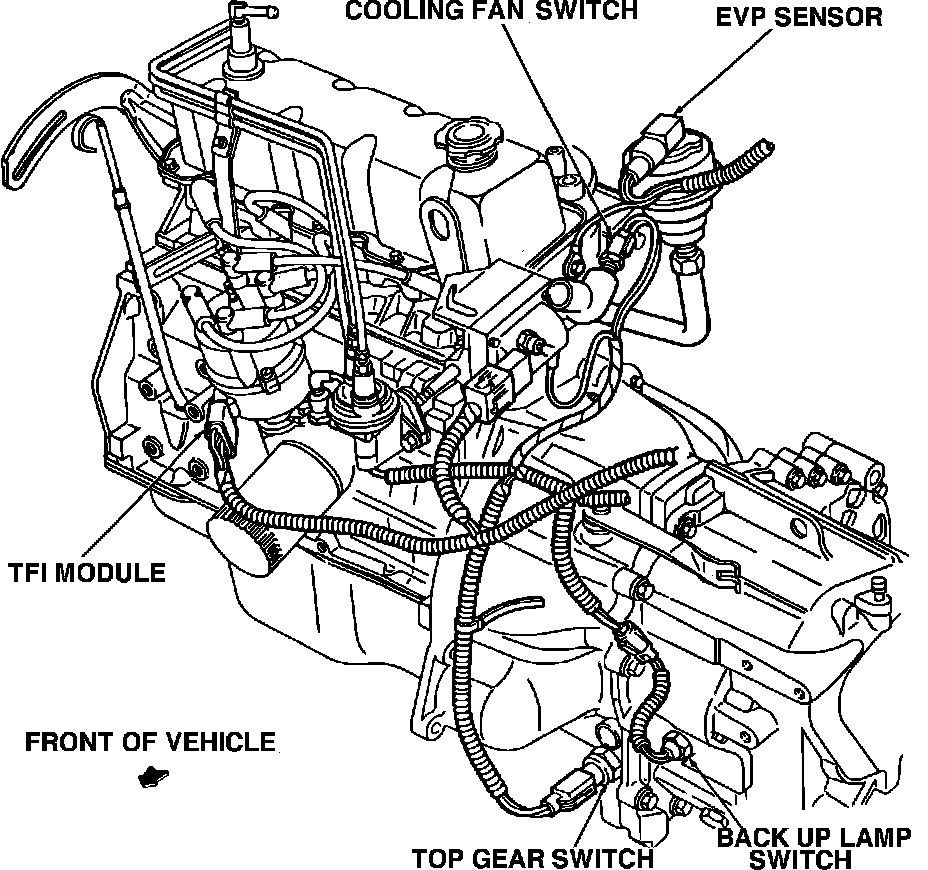

Fig. 1 EEC-IV system component location. 1984 4-140 high swirl combustion engine W/feedback carburetor:
