Timing Component Alignment Marks: Locations

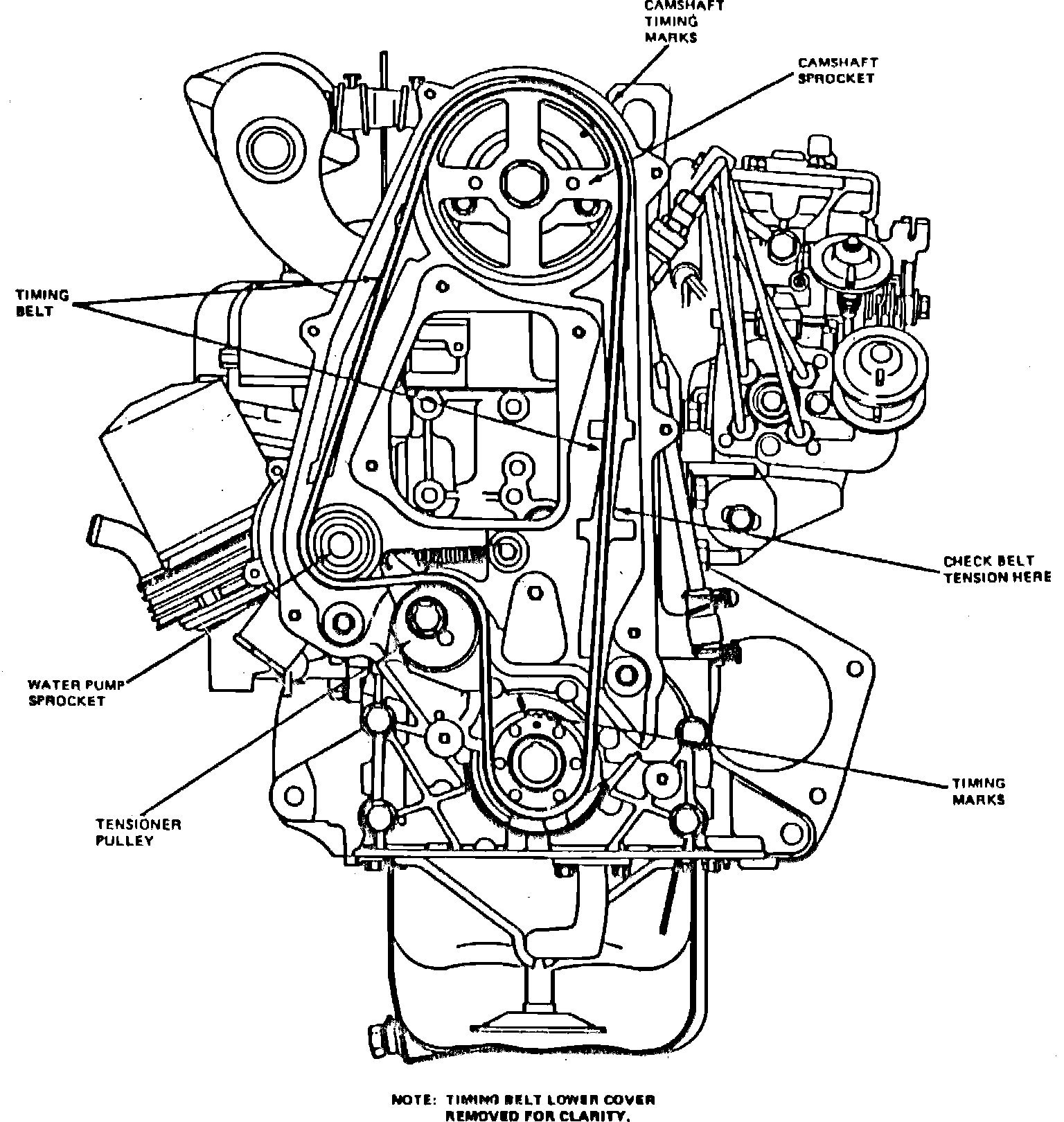

Fig. 14 Front timing belt installation:

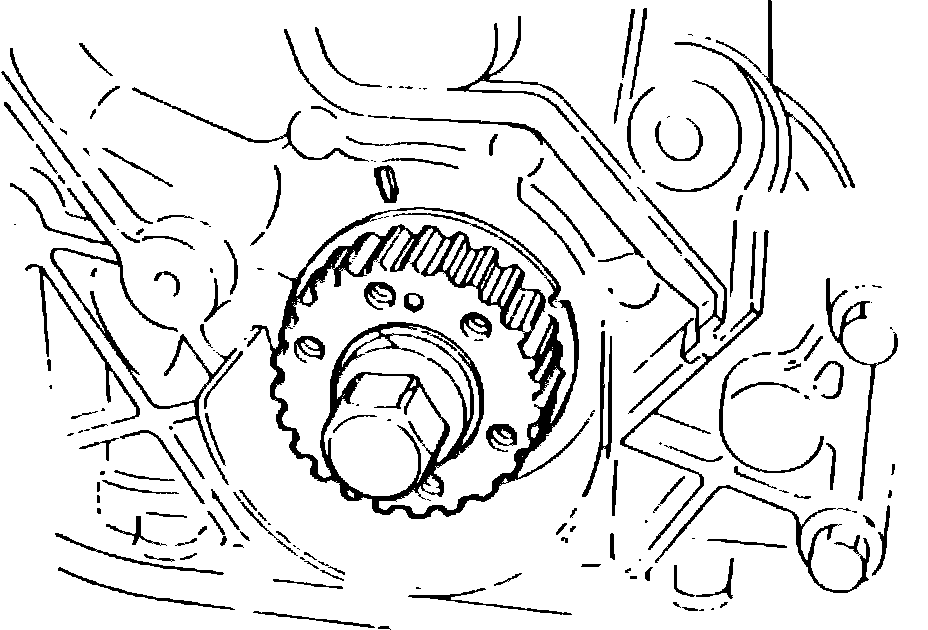

Fig. 15 Crankshaft pulley timing marks:

Fig. 17 Flywheel timing marks:

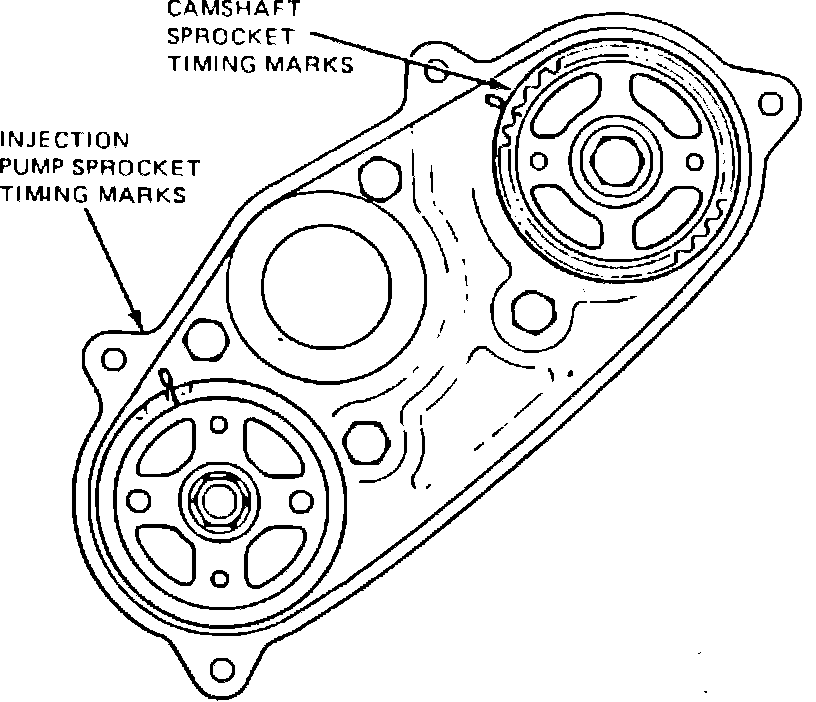

Fig. 18 Camshaft and injection pump timing marks:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
