Control Units

CONTROL UNITS LOCATION

Component Location
Electronic Control Assembly (ECA) Under center of dashboard. See Figure.
Throttle Kicker Module Under left side of dashboard.

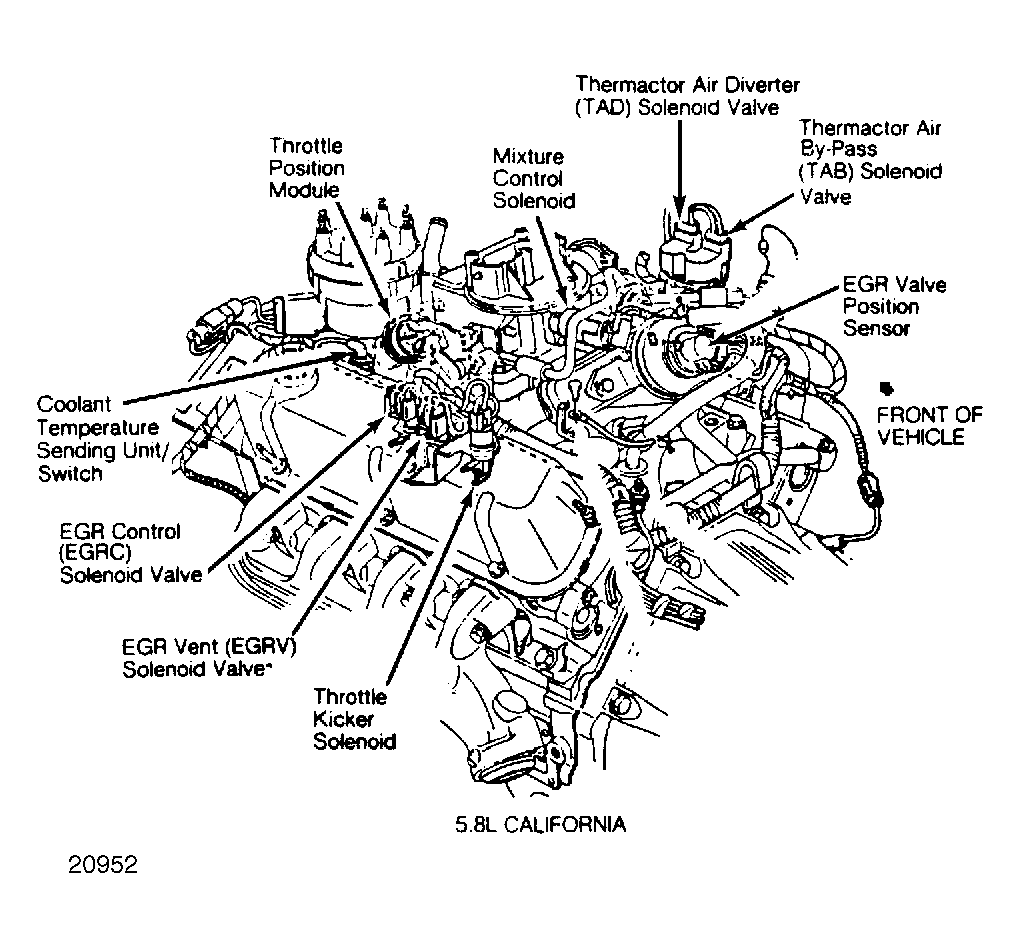

Throttle Position Module (Calif. 5.8L) On left front side of carburetor. See Figure.
