Ignition Timing - Incorrect Decal Instructions

Article No. 86-21-10


IGNITION TIMING - 2.5L - AUTOMATIC TRANSAXLE - INCORRECT EMISSION CONTROL DECAL INSTRUCTIONS


FORD 1986 TAURUS

LINCOLN-MERCURY 1986 SABLE

CALIBRATION: 2.5L

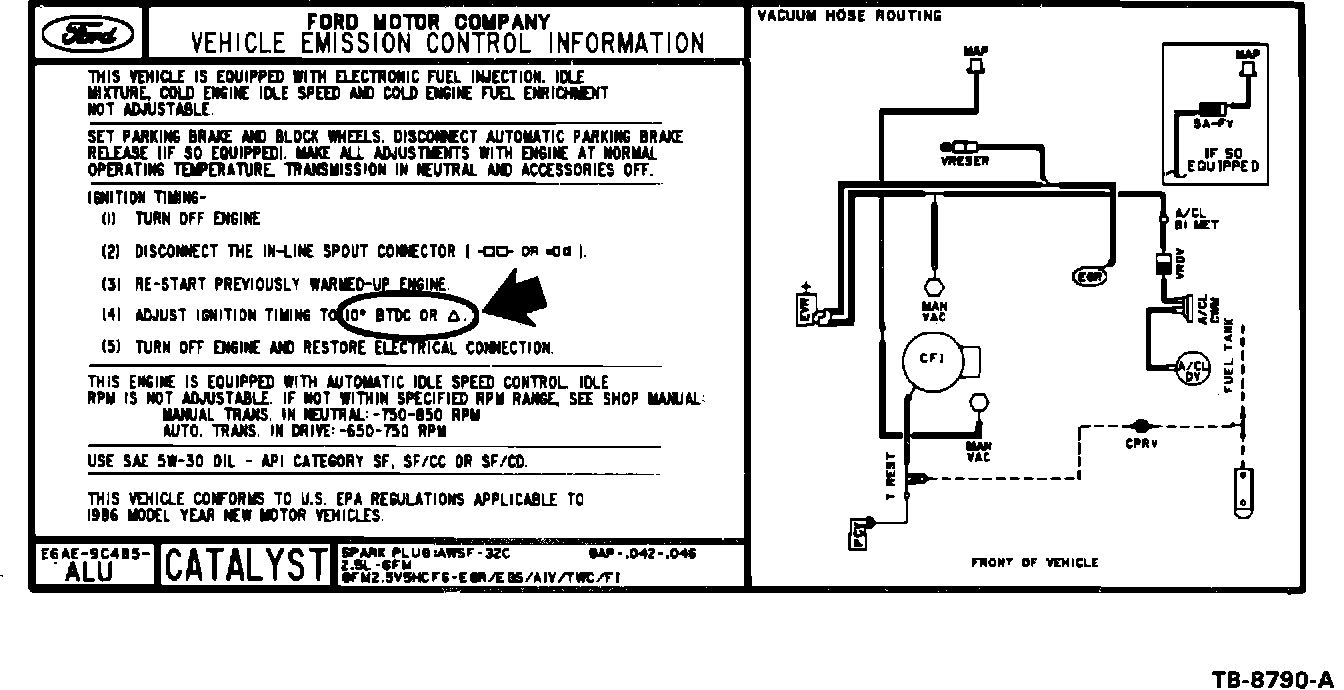

Figure 6:

The vehicle emission control information decal Step 4 says to "adjust ignition timing to 10~ BTDC or the symbol "triangle", Figure 6". Field technicians are not sure as to which of the three symbol "triangles" is 10~ BTDC on the automatic transaxle flex plate. This is because the wrong symbol is used on the decal. The correct symbol should be a "V" not a symbol "triangle". To set the timing to 10~ BTDC, set the timing mark to the deep "V" (10~ BTDC) found on the automatic transaxle flex plate.
NOTE: The following emission decal part numbers are affected:

E6AE-9C485-ALM E6AE-9C485-ALN E6AE-9C485-ALU E6AE-9C485-ALY E6AE-9C485-AML E6AE-9C485-AMM E6AE-9C485-ALP E6AE-9C485-AMP E6AE-9C485-ALV

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
