Engine Control Module

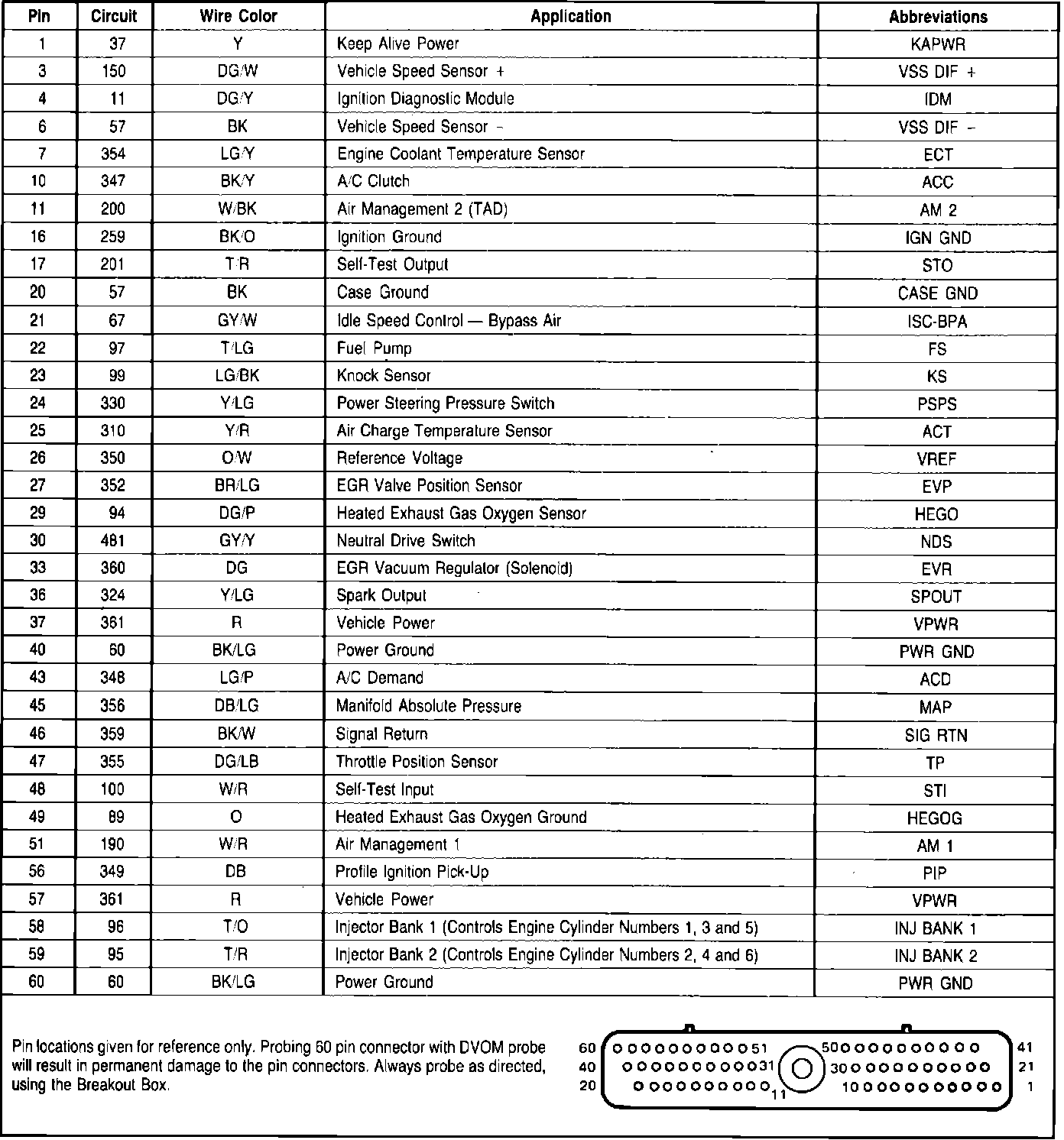

Fig. 210 EEC-IV connector terminal identification. 1987 6-300 Bronco & F Series:
