KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB30 - KB31
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
KB30 - KB31

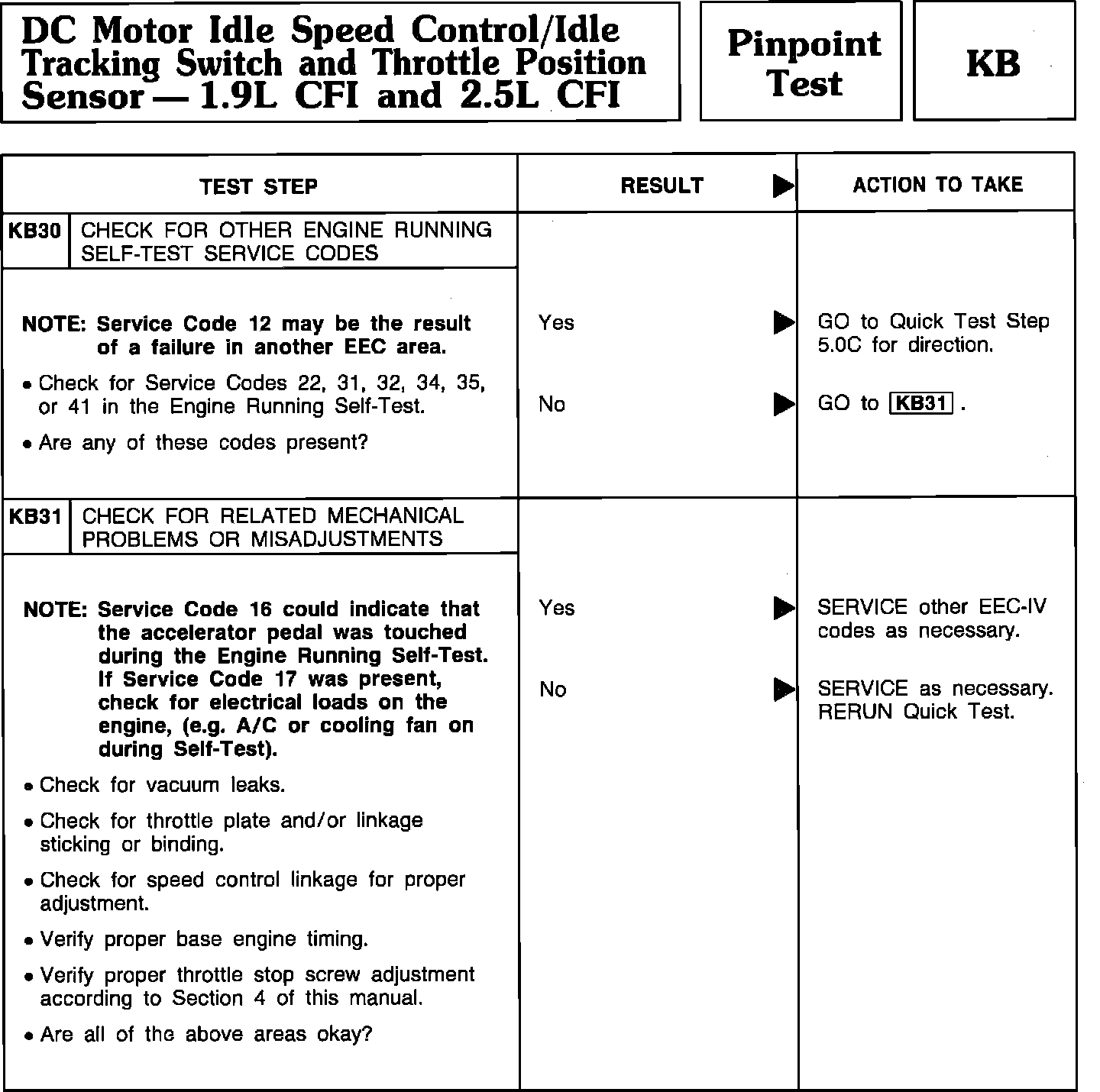

Pinpoint Test KB30 & KB31 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
