Wiring Diagrams

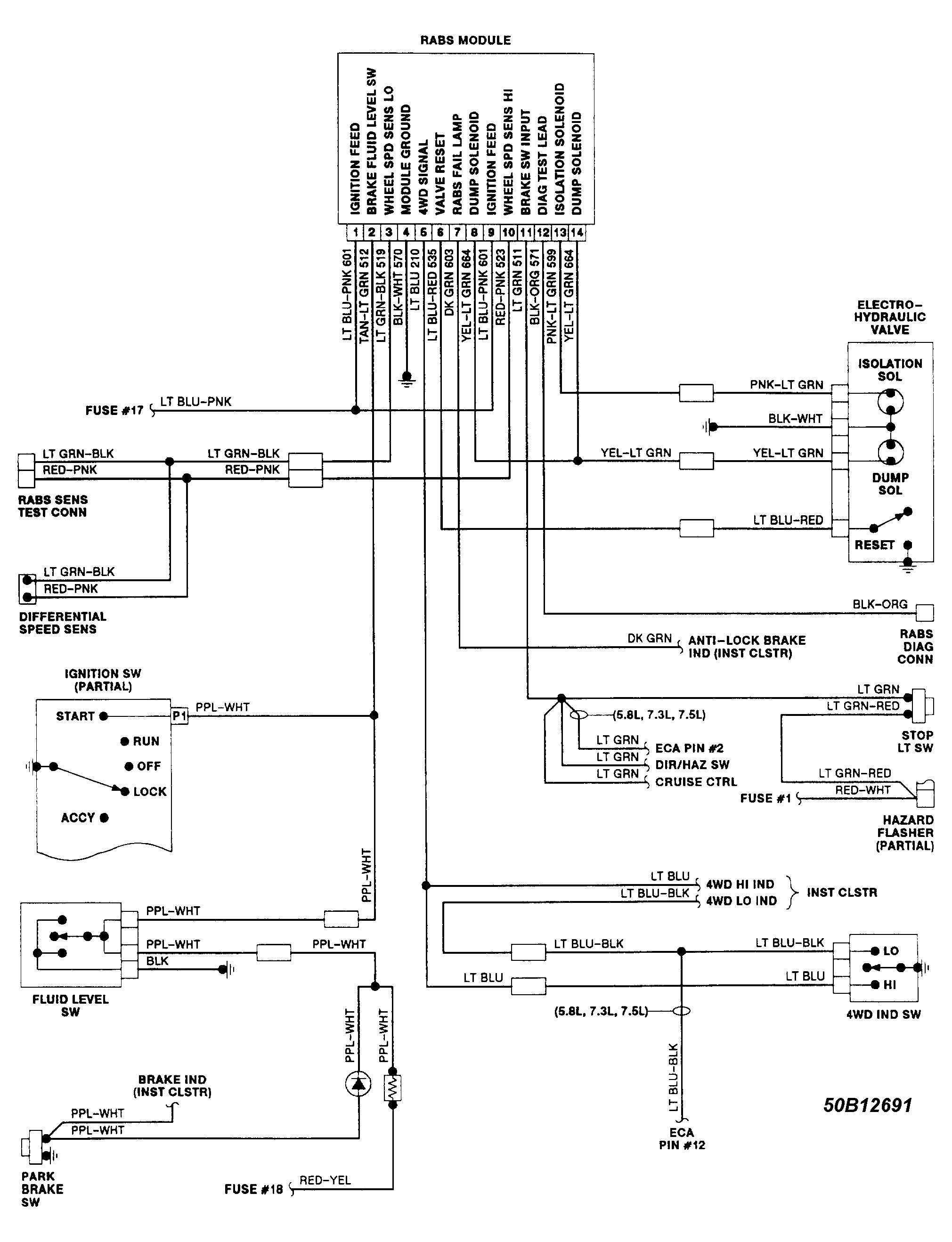

Fig 1: Bronco & F Series Rear Anti-Lock Brake System
G50B12691

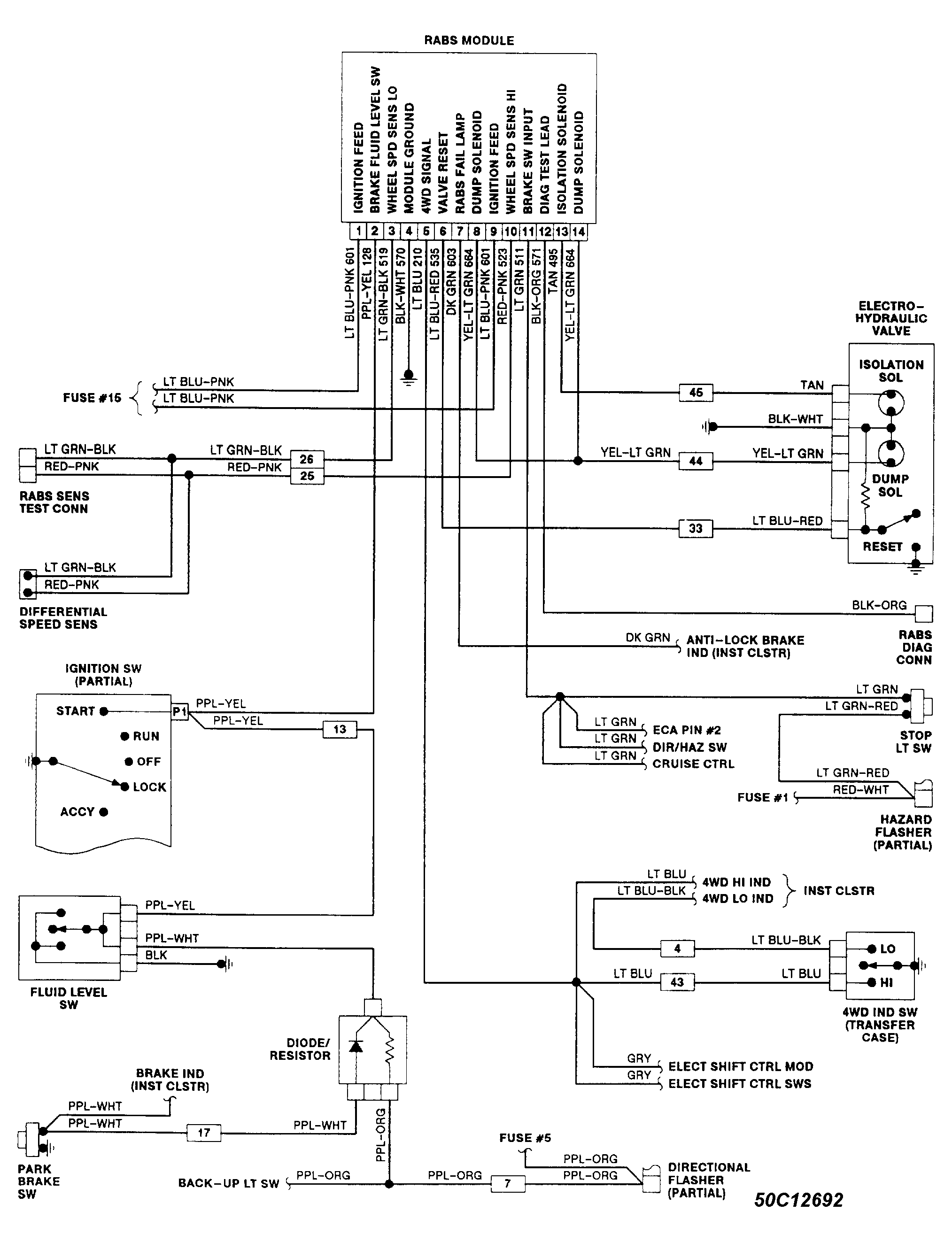

Fig 2: Bronco II & Ranger Rear Anti-Lock Brake System
G50C12692
