Ignition Timing Connector: Locations

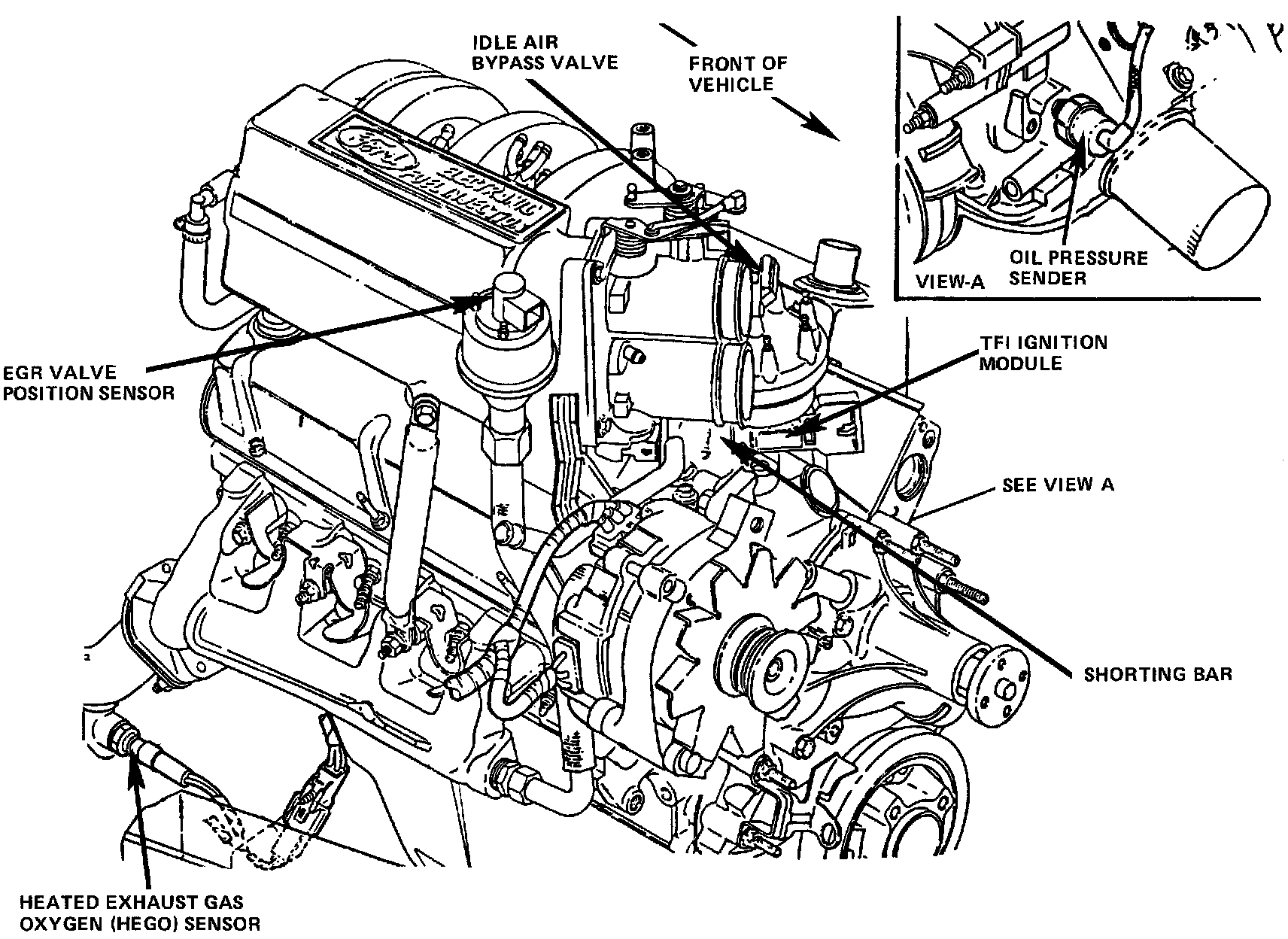

Right Hand Side Of Engine, (5.0L And 5.8L Shown, 7.5L Engine Similar):
The Shorting Bar is located on the engine, near the TFI Ignition Module.
The Shorting Bar is located on the engine, near the TFI Ignition Module.
