Normal Scan Data Values (Includes PIDs)
>>
Diagnostic Reference Values
>>
With Mass Air System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With Mass Air System

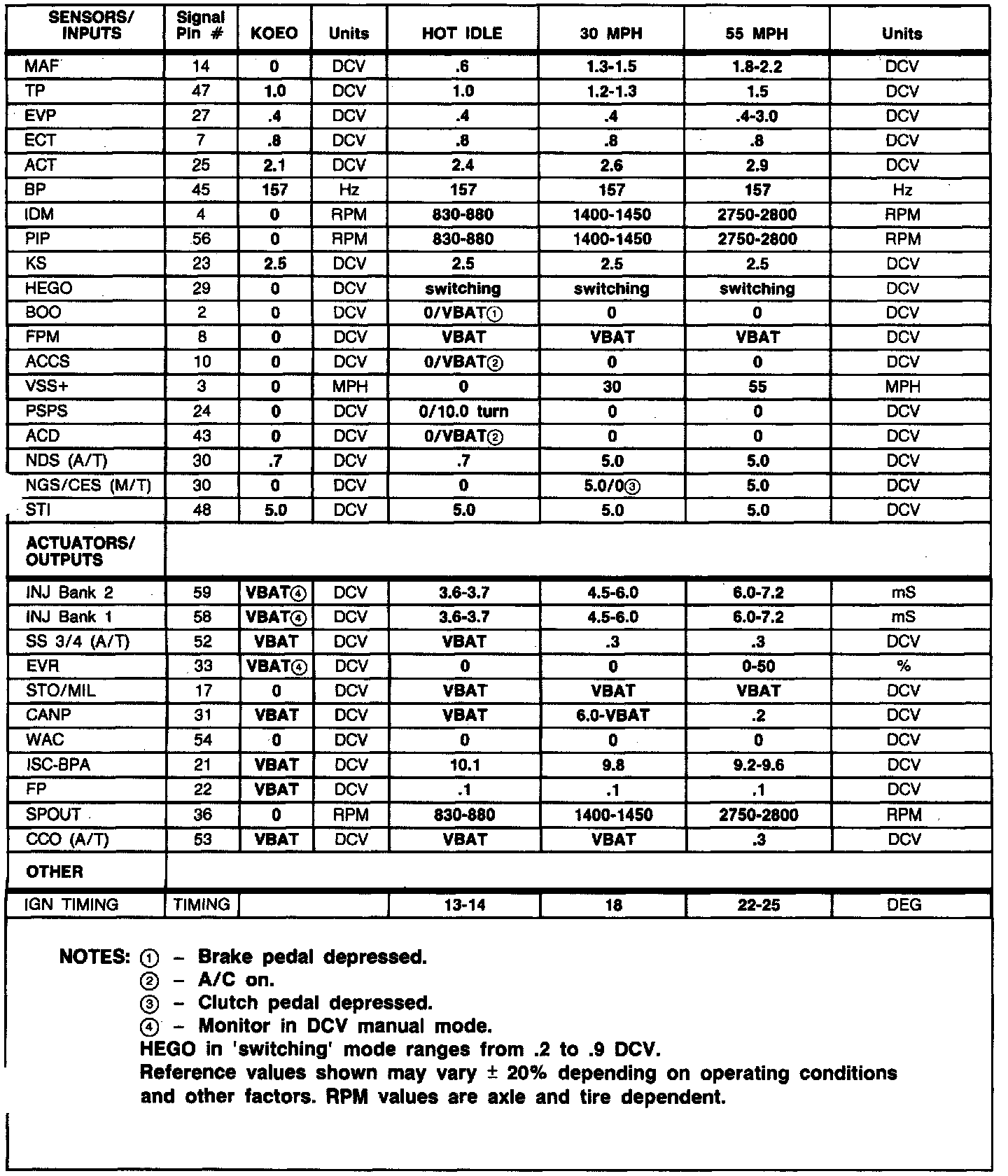

Diagnostic Reference Values:
