A/T Technical Data

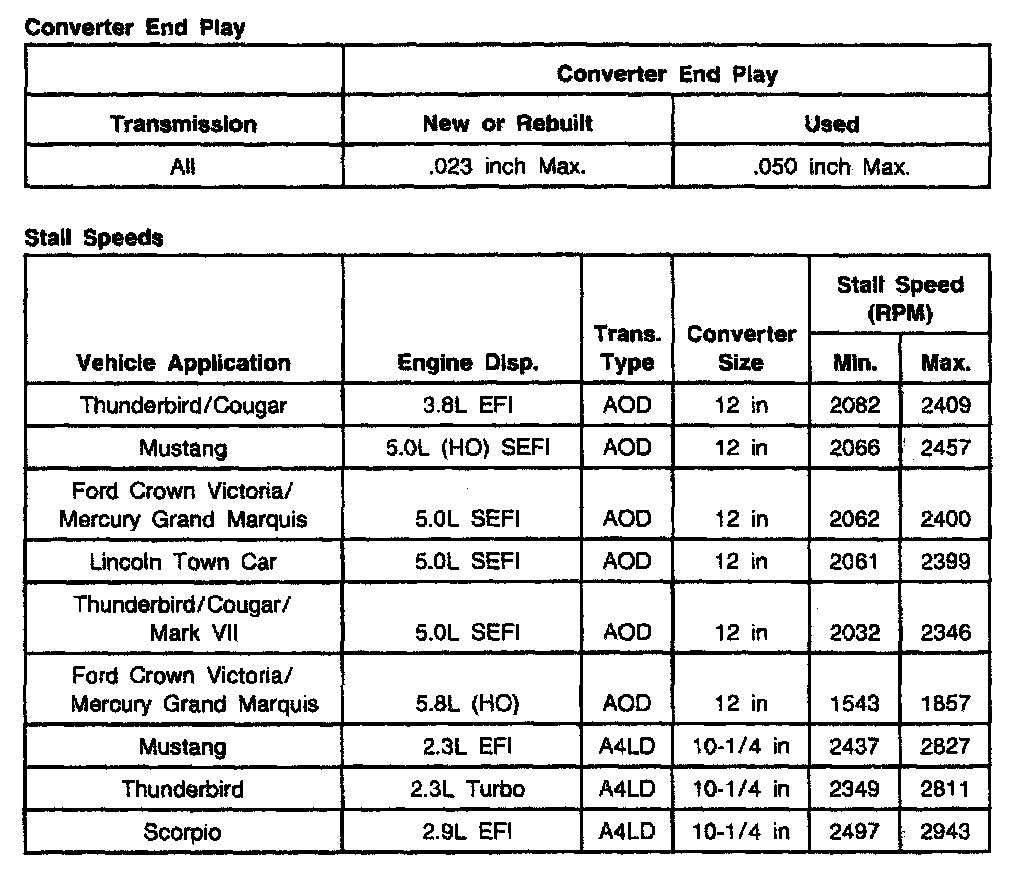

A4LD 4-spd A/T, End Play/Stall Speeds:

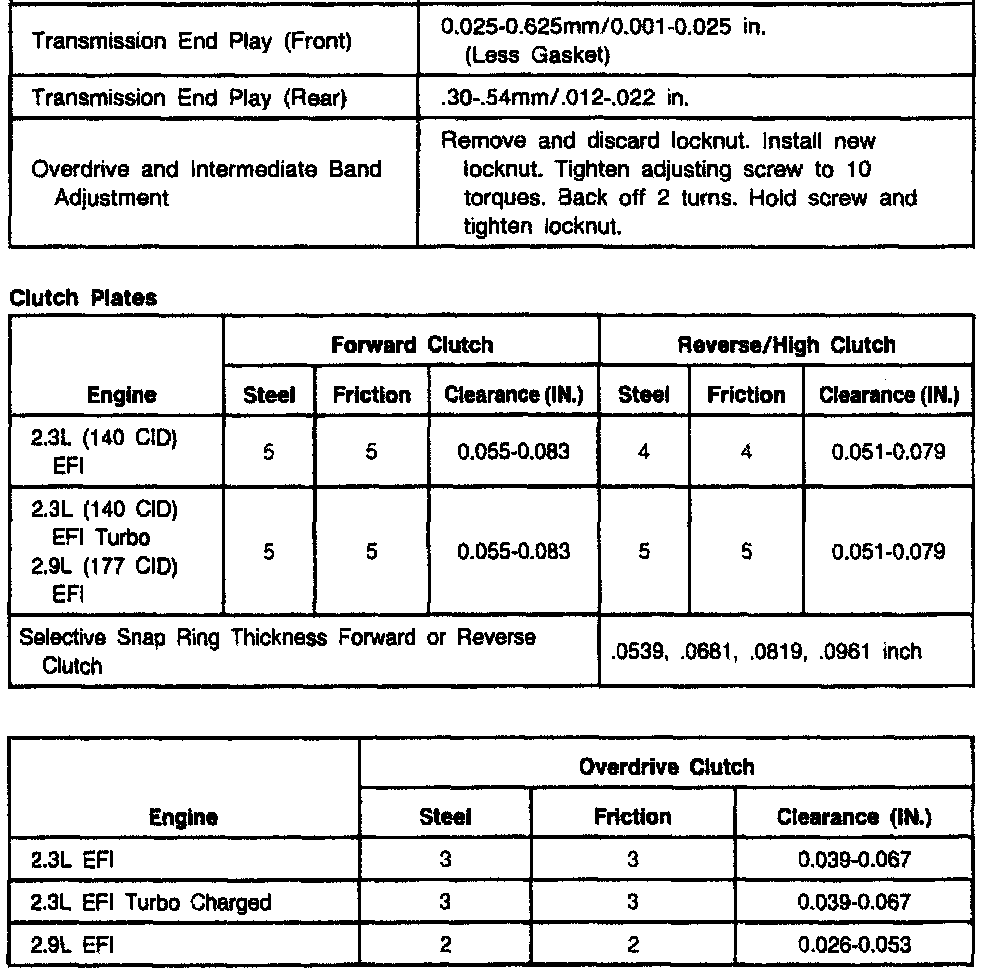

A4LD 4-spd A/T, End Play/Clutch Plates:

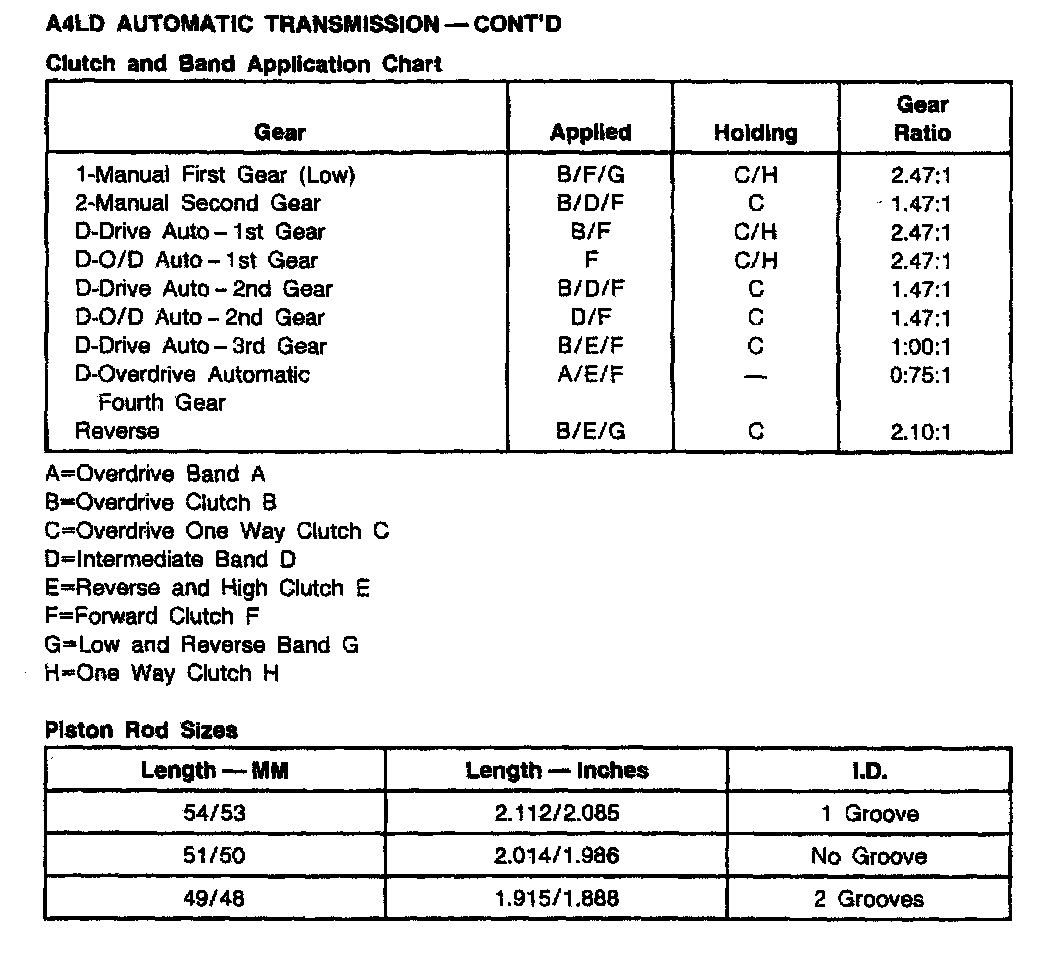

A4LD 4-spd A/T, Clutch/Band Application - Servo Pistons:

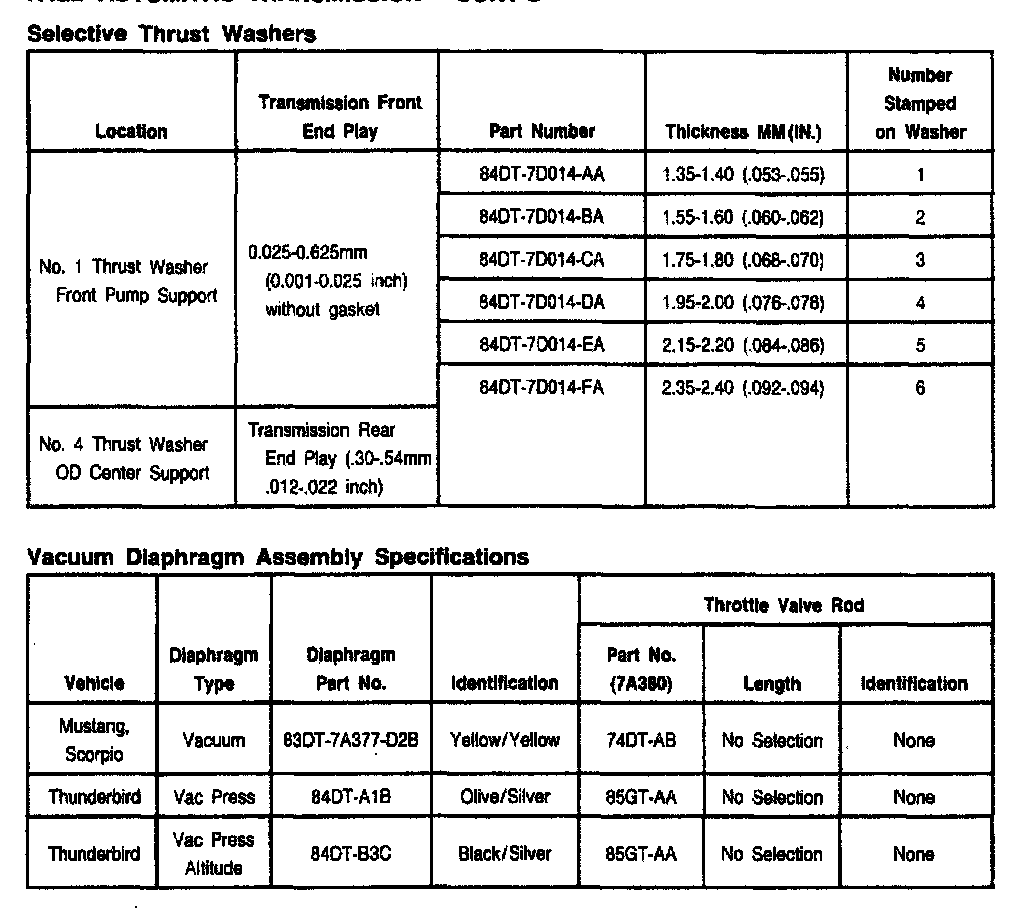

A4LD 4-spd A/T, Thrust/Vacuum Diaphragm:

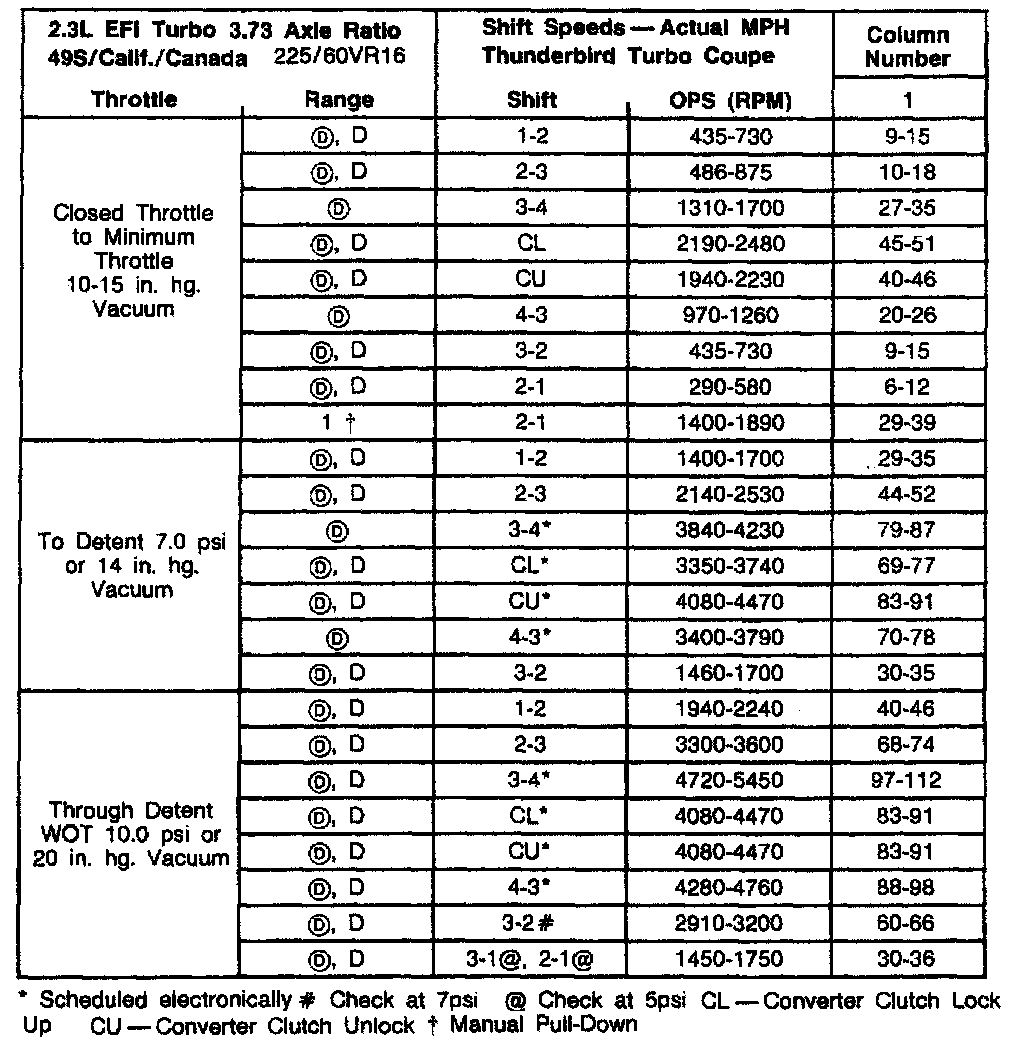

A4LD 4-spd A/T, Shift Speeds (2.3L Turbo T-bird):

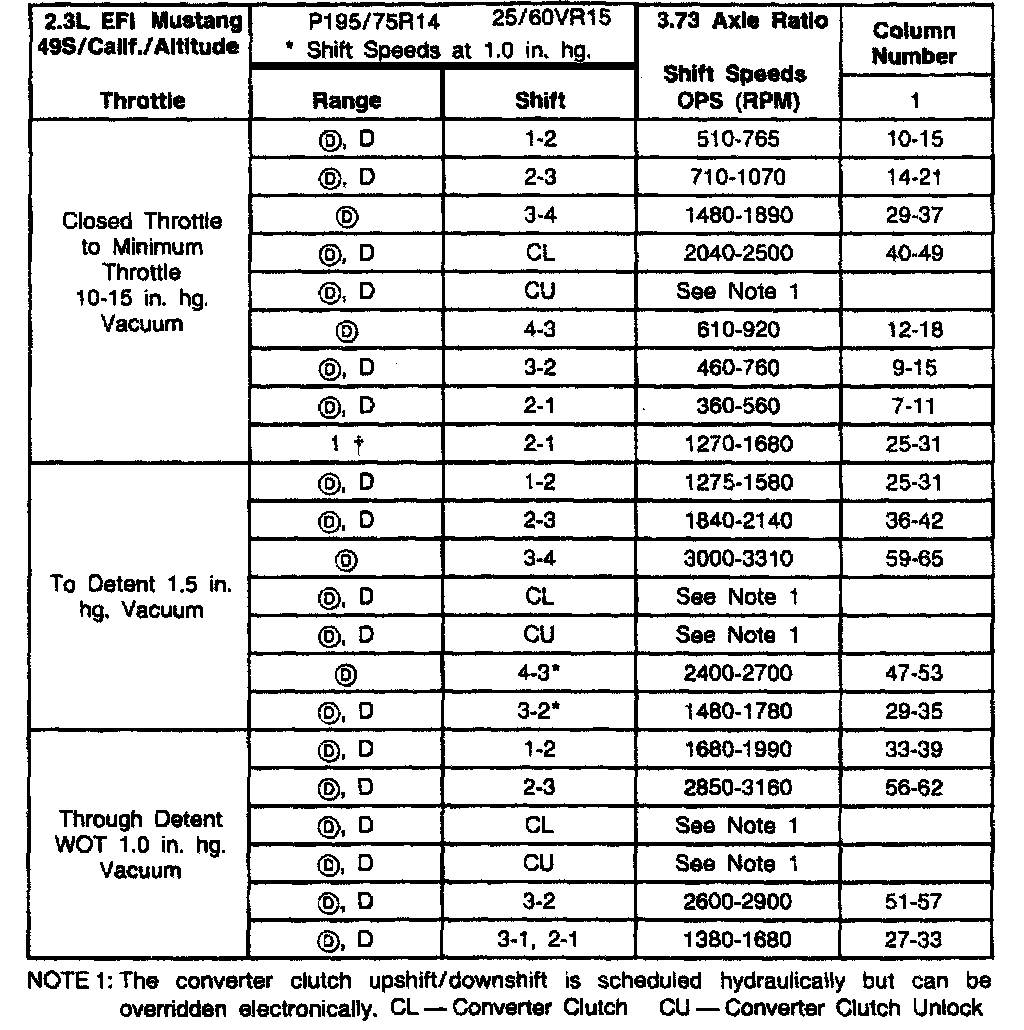

A4LD 4-spd A/T, Shift Speeds (2.3L Mustang):
