A/T Torque Data

A4LD 4-spd A/T, Cooler Line Fittings:

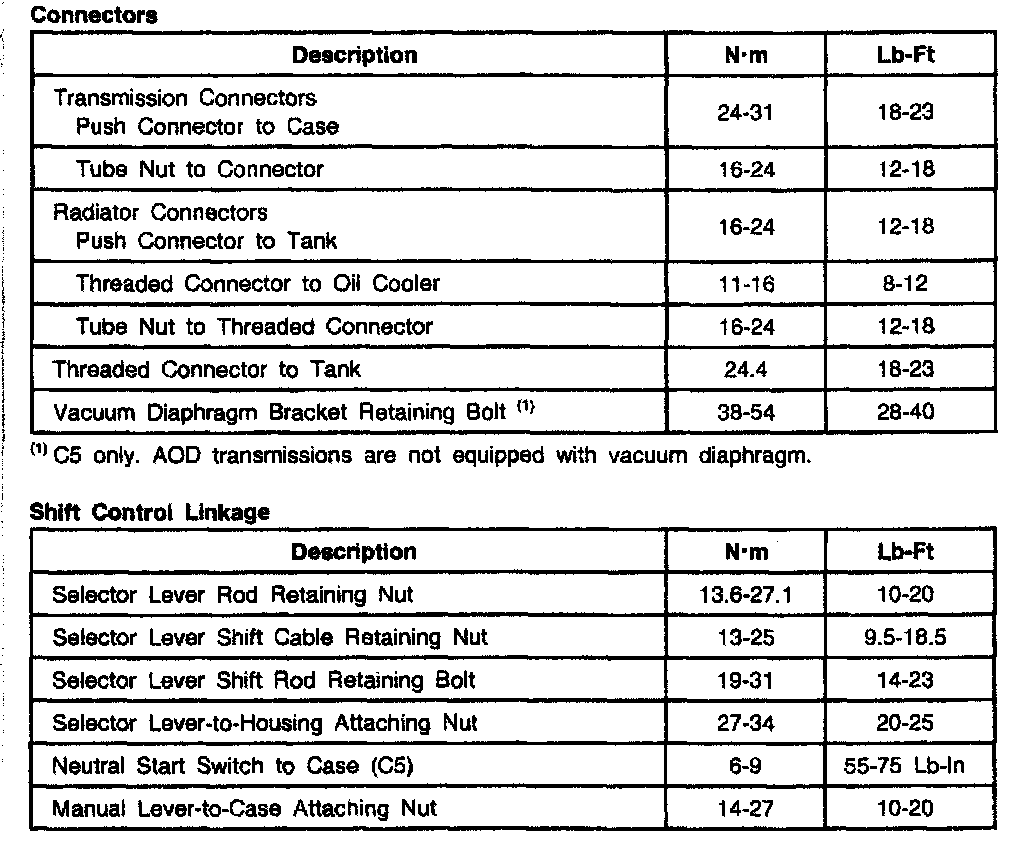

A4LD 4-spd A/T, Connectors/Control Linkage:

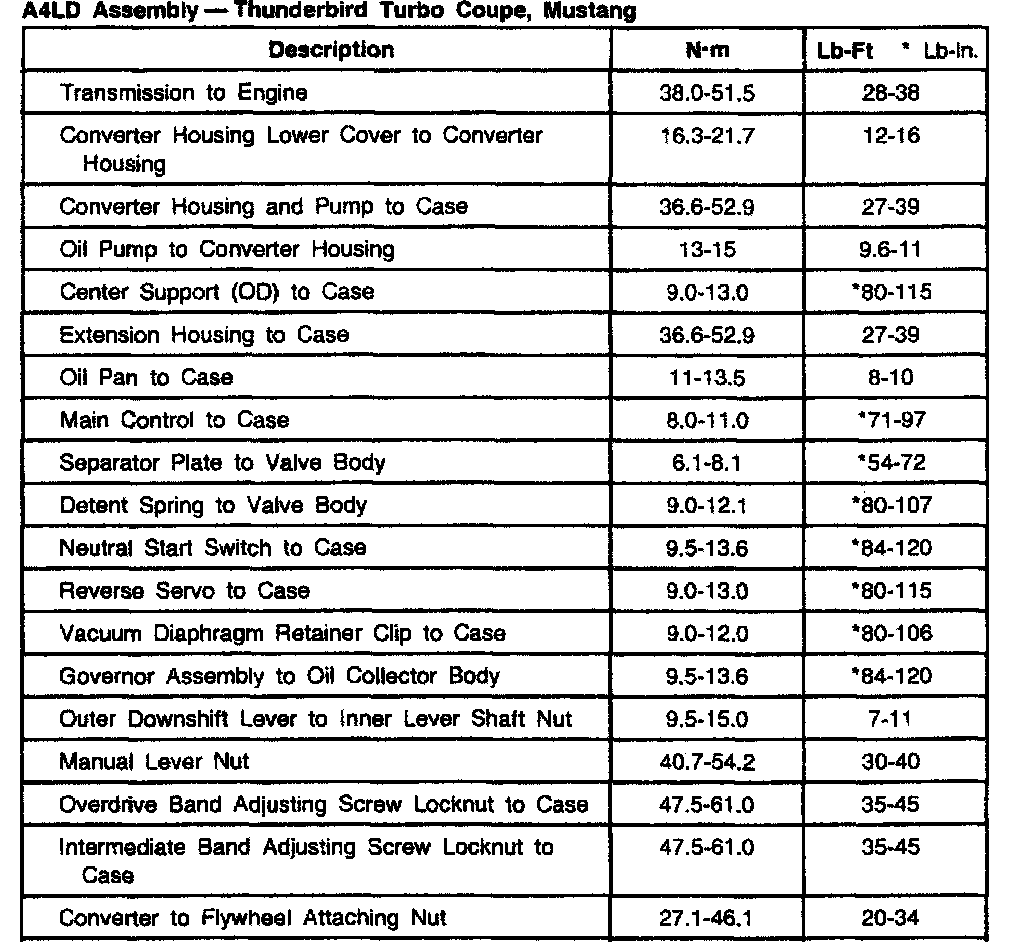

A4LD 4-spd A/T, Transmission Assembly:

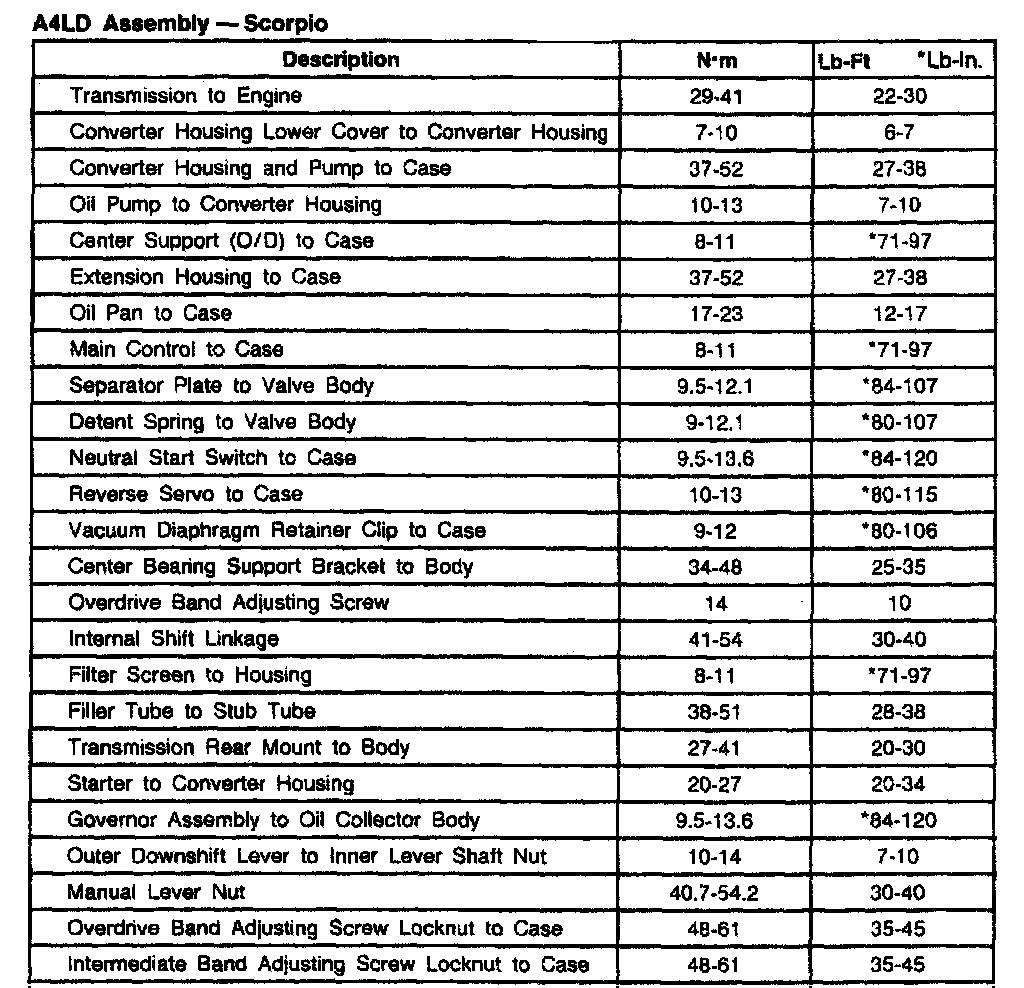

A4LD 4-spd A/T, Transmission Assembly (Scorpio):
