Removal & Installation: Installation

To install, reverse removal procedure. Tighten 3 seat track bolts and one nut to 28-38 ft. lbs. (38-51 N.m).

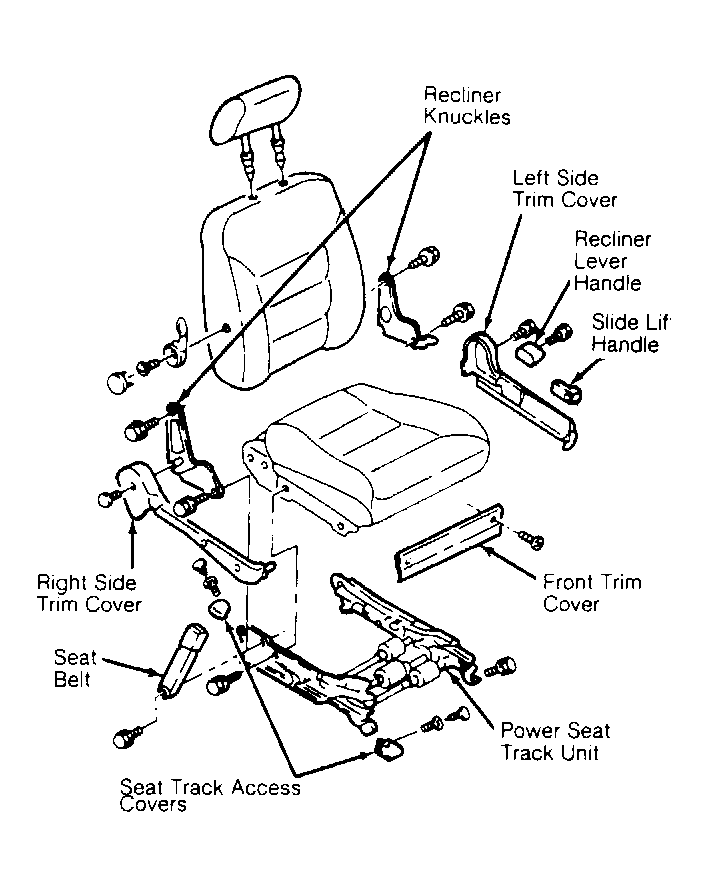

Fig 1: Exploded View of Probe Power Seat
G90C10142Courtesy of FORD MOTOR CO.
