Radiator Cooling Fan Control Module

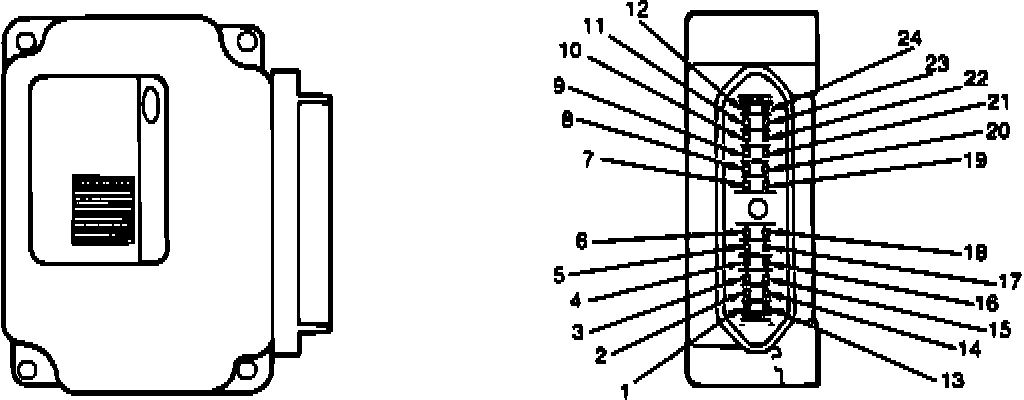

Fig. 6 Integral Relay Control Module Terminal Identification:

The integral relay control module interfaces with the EEC-IV to provide control of the cooling fan. Refer to Fig. 6 for terminal identification.
