X - Integrated Relay Control Module
>>
X - Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

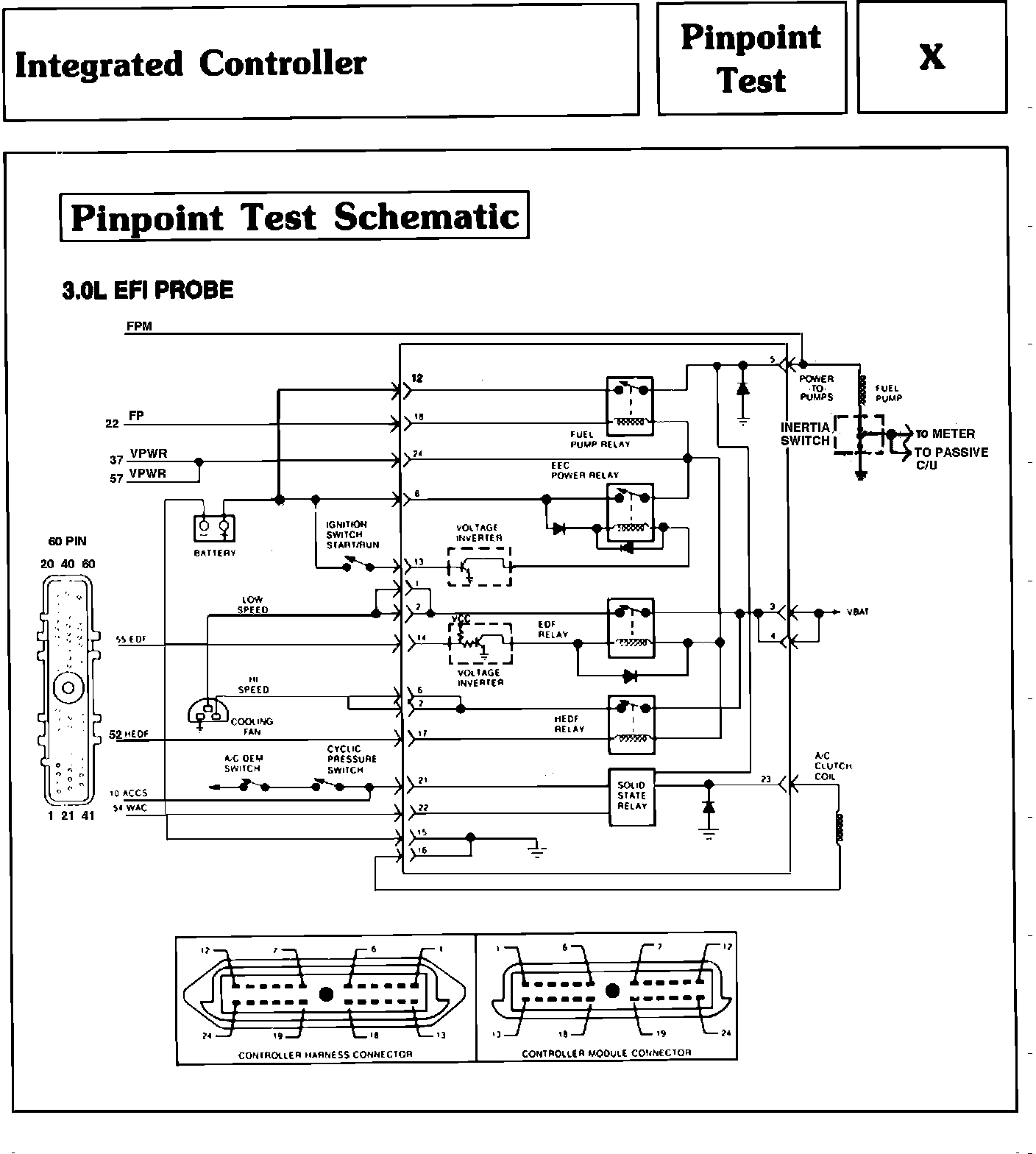

X - Wiring Diagram
Pinpoint Test X - Integrated Controller:
*** UPDATED BY TSB #906B16 03-23-90
