Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse Panel

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

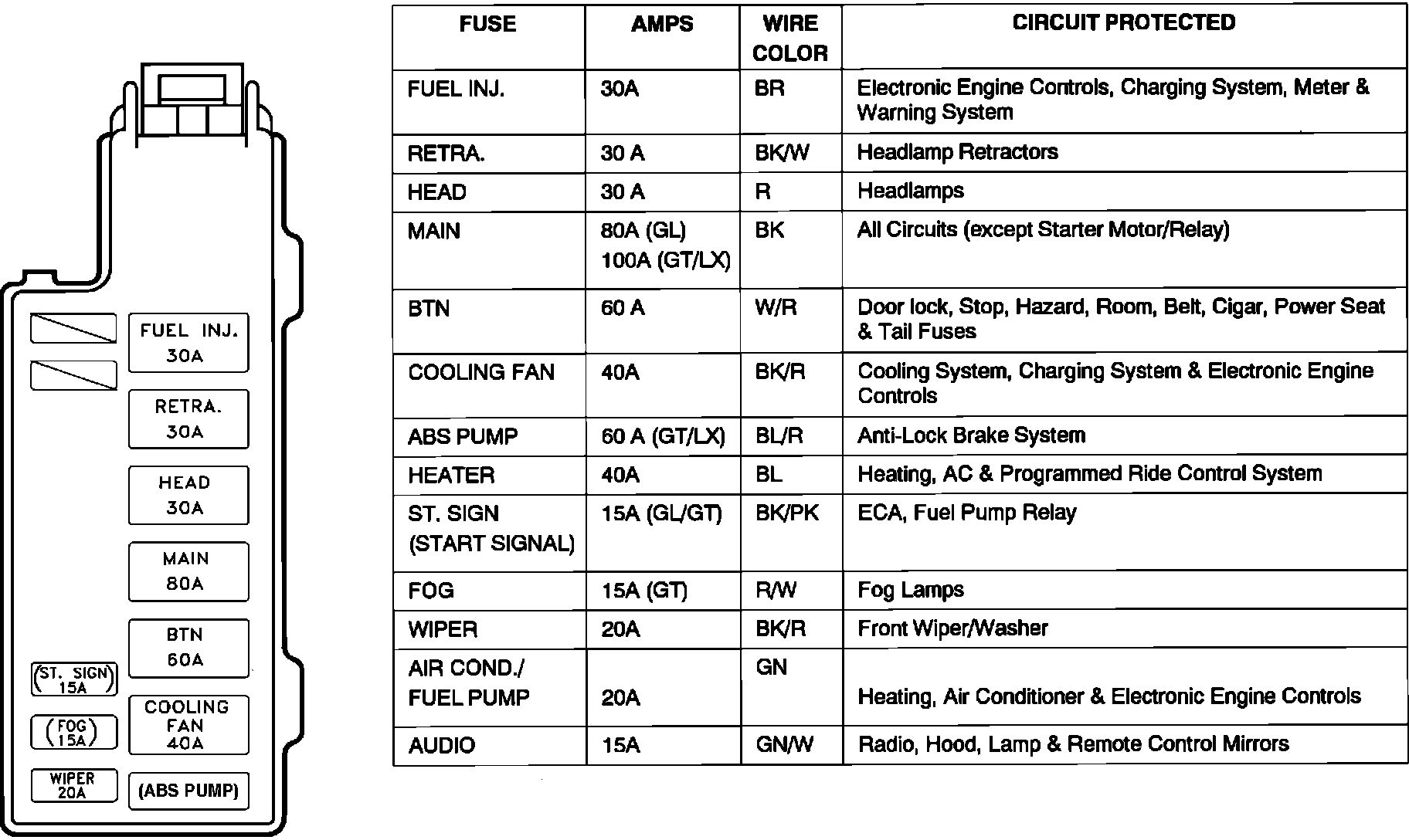

Fuse Panel

Fuse Panel Details:
