Fuse Block: Locations

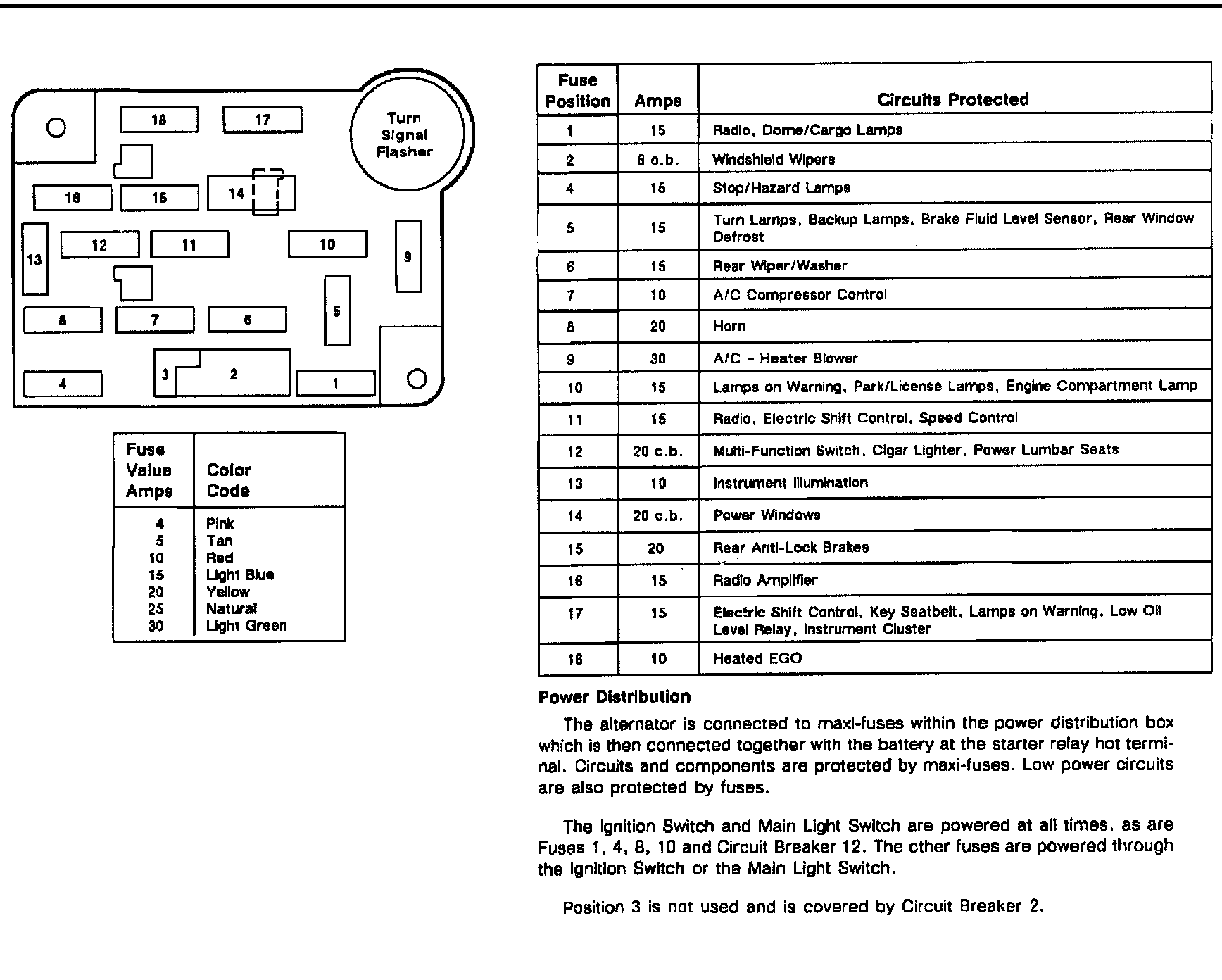

Fig. 1 Fuse Panel:

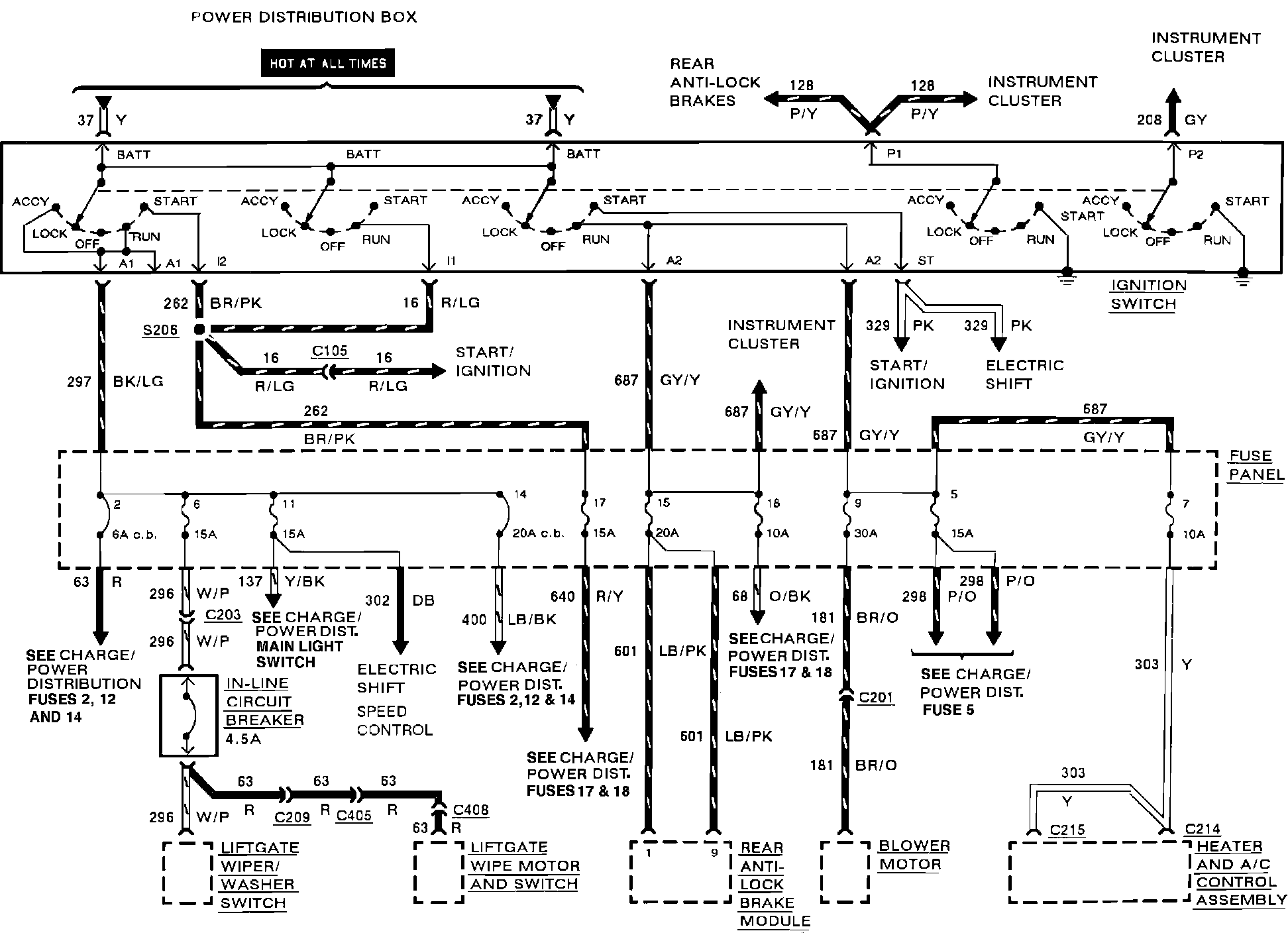

Fig. 8b Charge & Power Distribution:

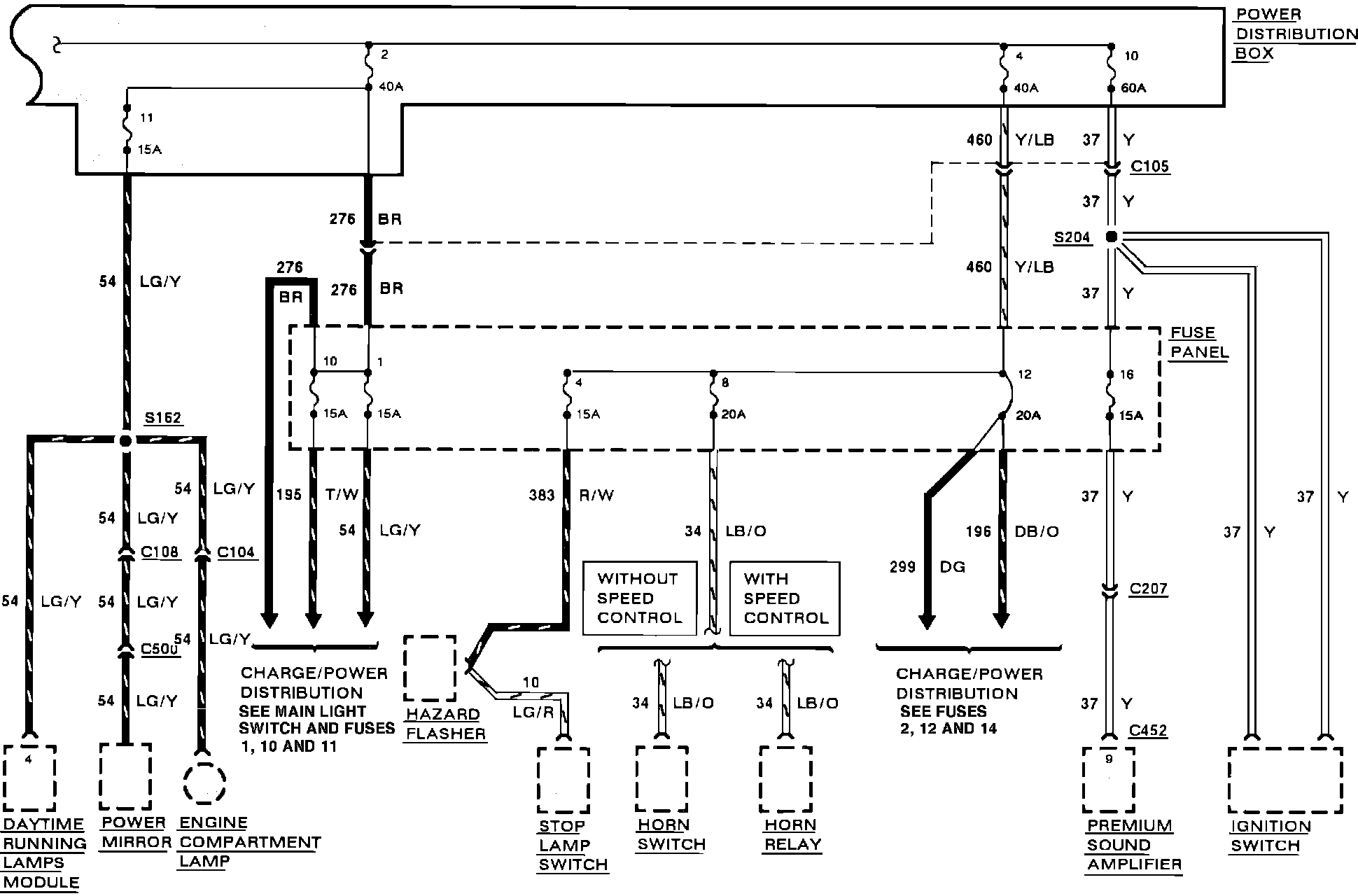

Fig. 8c Charge & Power Distribution:
