Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

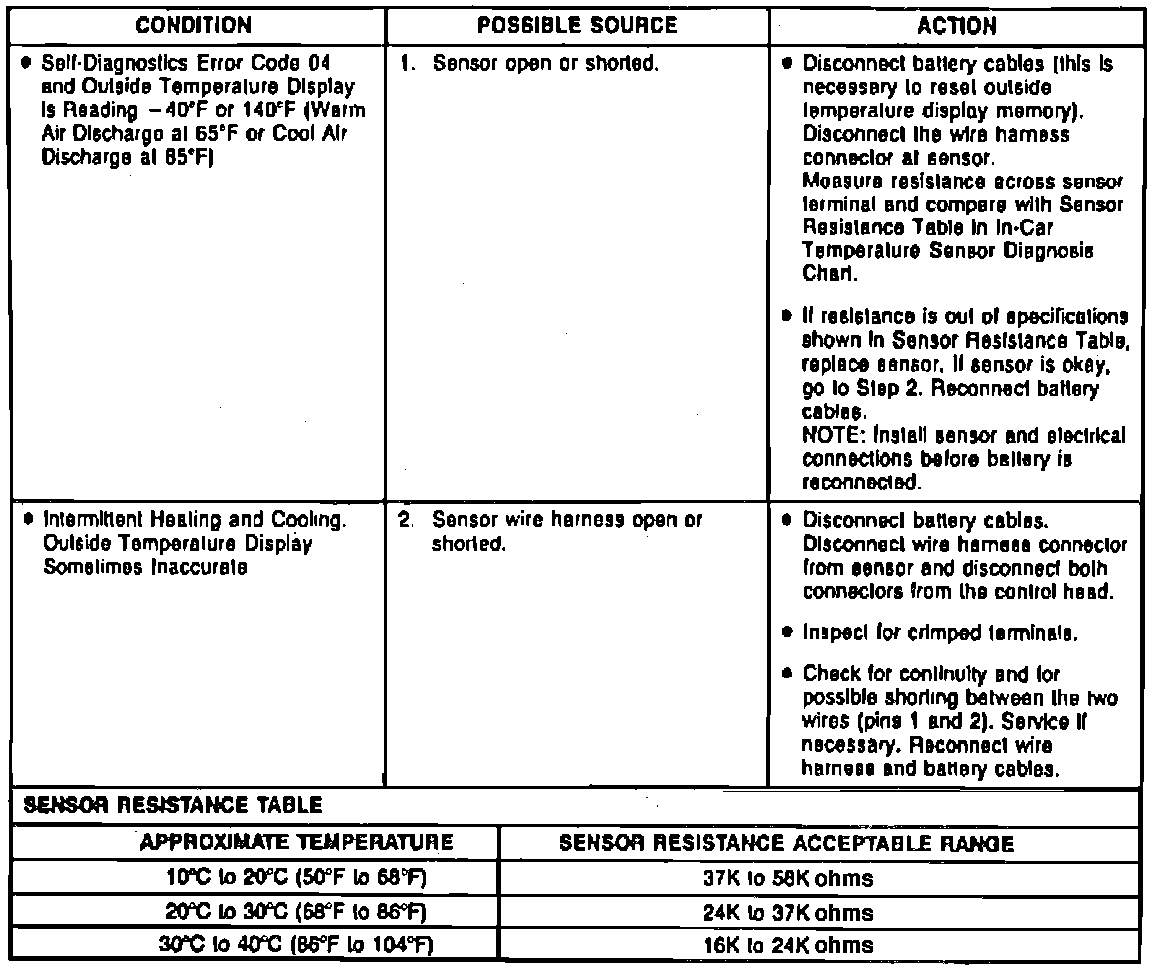

Fig. 7 Ambient Temperature Sensor Diagnosis:
