Stator Coil Open Test

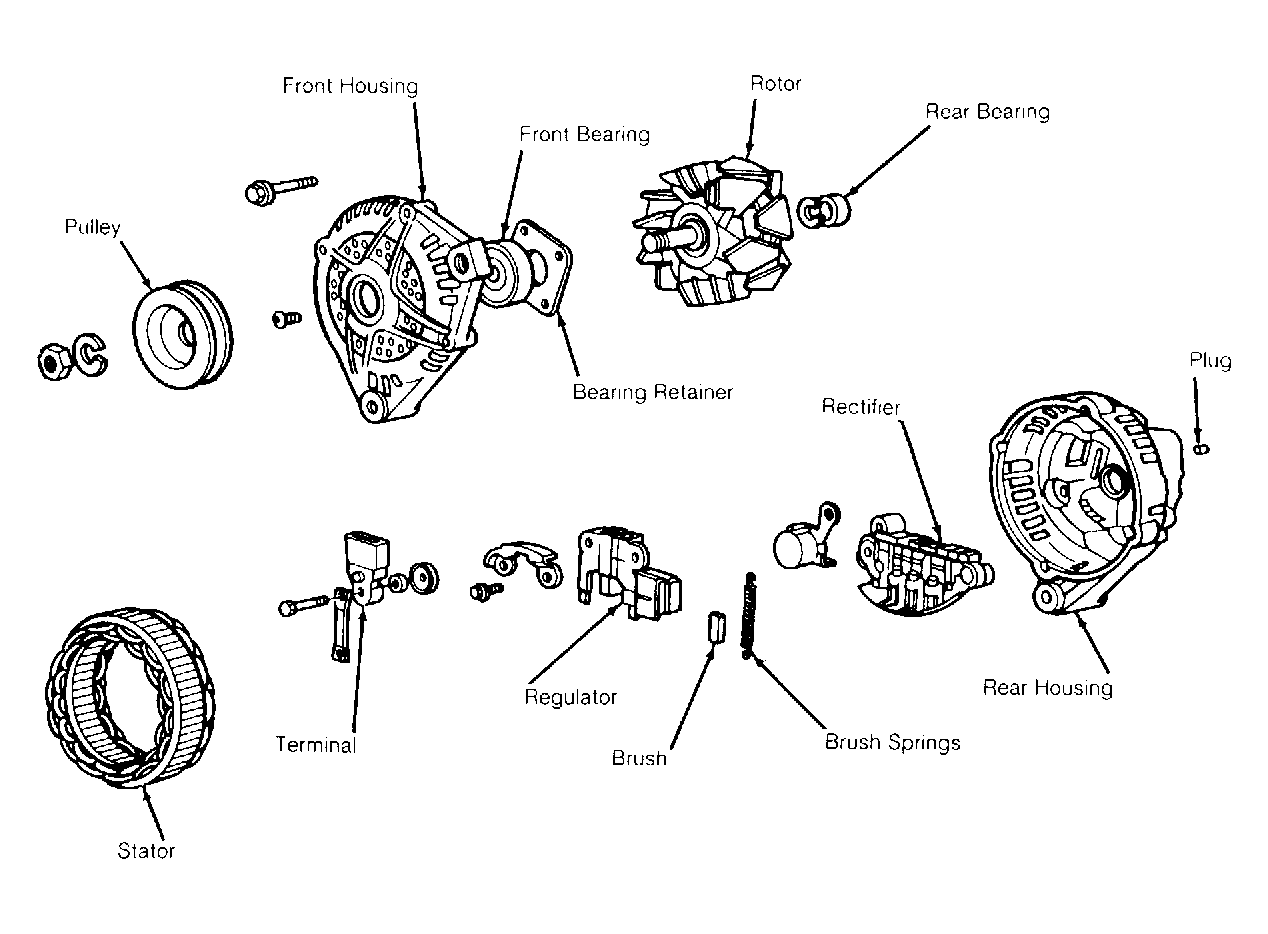

Remove and disassemble alternator. Disconnect stator from rectifier. See Figure. Place ohmmeter in "x1" range. Connect one ohmmeter probe to one stator lead and touch other probe to another stator lead. If no meter movement occurs, an open exists and stator should be replaced. Repeat test for each stator lead.
