Pressure Feedback Exhaust Sensor: Locations

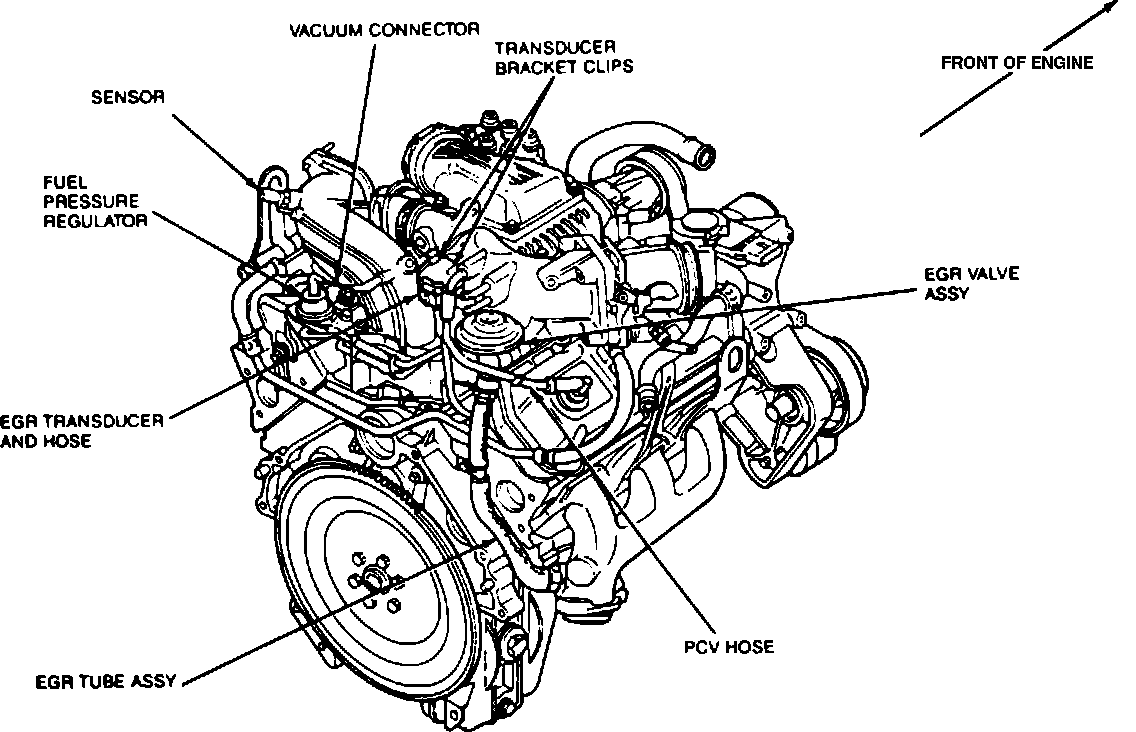

Supercharger Removal/Assembly:

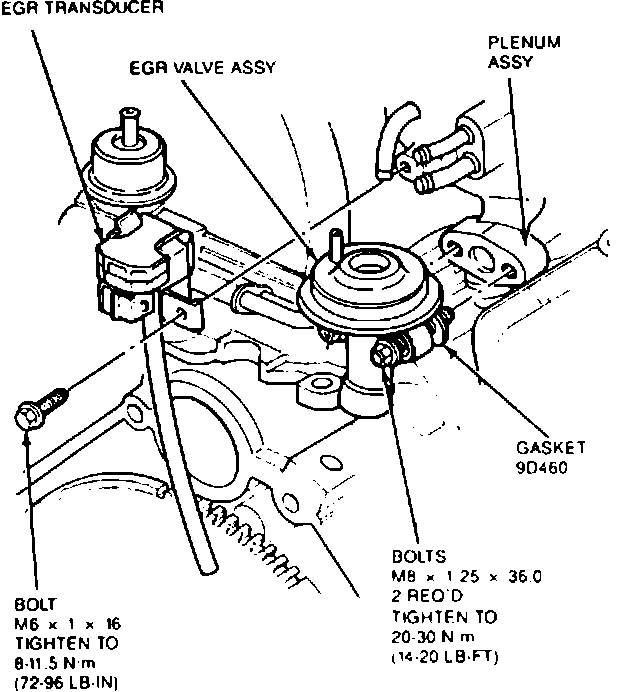

EGR Valve Installation:

The Pressure Feedback Electronic (PFE) Exhaust Gas Recirculation (EGR) Transducer is located at the Top Rear Center of the Engine.
