M/T Technical Data

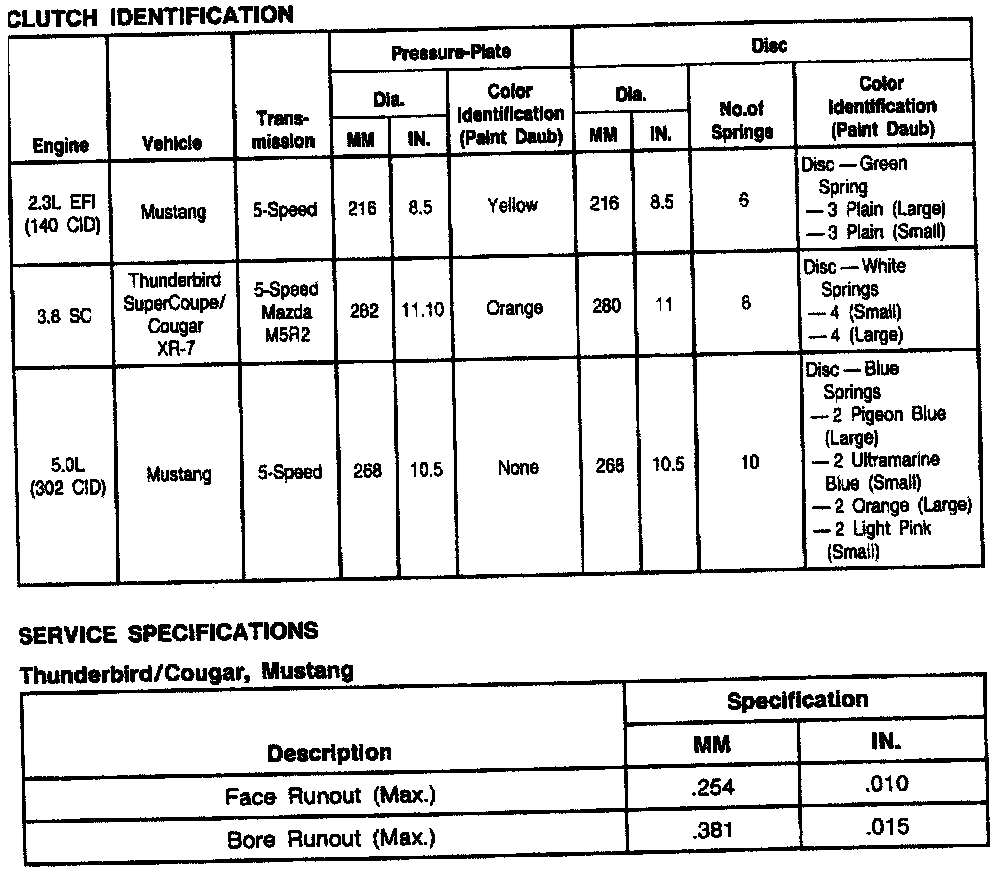

M5R2 5-spd M/T, Clutch/Pressure Plate-Runout:





M5R2 5-spd M/T, Shift Speeds (3.8L SC):





M5R2 5-spd M/T, Gear Ratios:





M5R2 5-spd M/T, Mainshaft Runout/Standards:
