Transmission Position Sensor/Switch: Locations

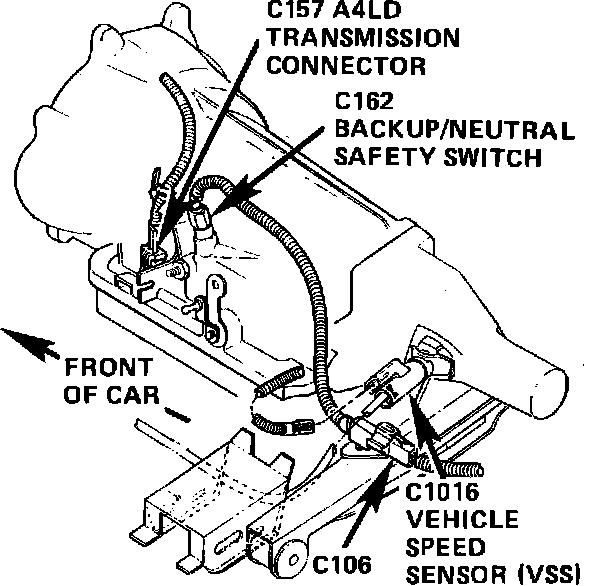

Left Hand Side Of Transmission (A/T):






A4LD TRANSMISSION CONNECTOR
BACKUP/NEUTRAL SAFETY SWITCH
VEHICLE SPEED SENSOR
