Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Air Charge Temperature Sensor Replacement:

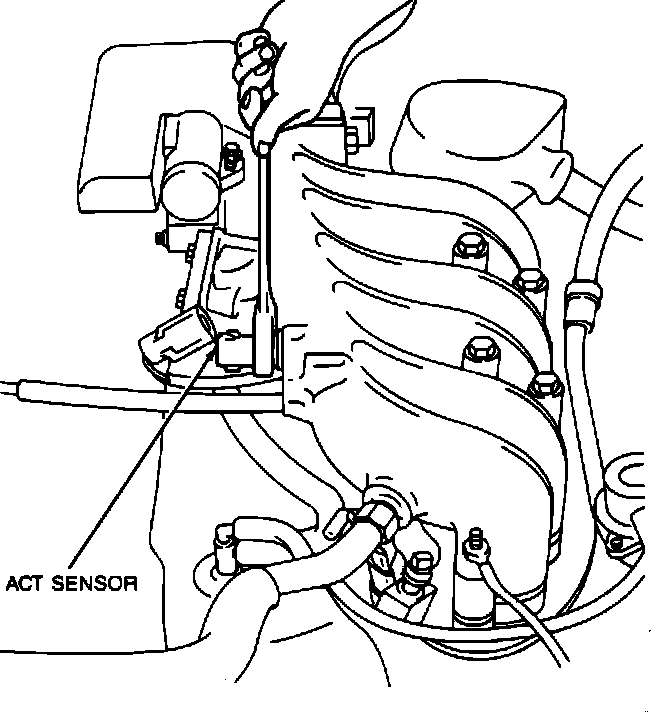

1. Disconnect the Air Charge Temperature (ACT) sensor.

Air Charge Temperature Sensor Replacement:

2. Remove the ACT sensor from the vehicle.
3. Install the ACT sensor, then connect the electrical connector.
