Timing Cover

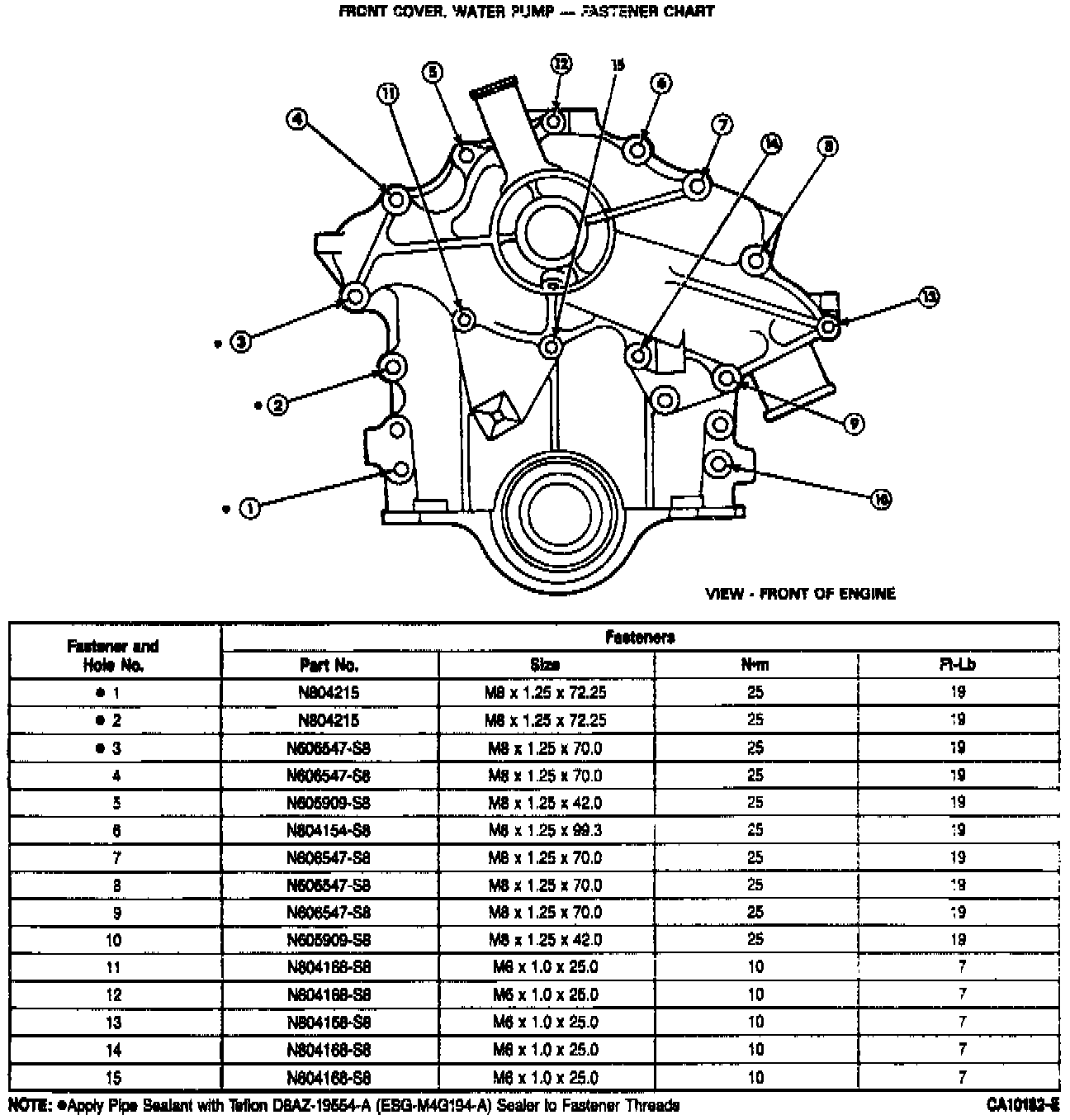

Front Cover, Water Pump Torque Chart:






Timing Cover Bolts 1-10 25 Nm (19 ft lb)
Timing Cover Bolts 11-15 10 Nm (7 ft lb)
