Connector Identification

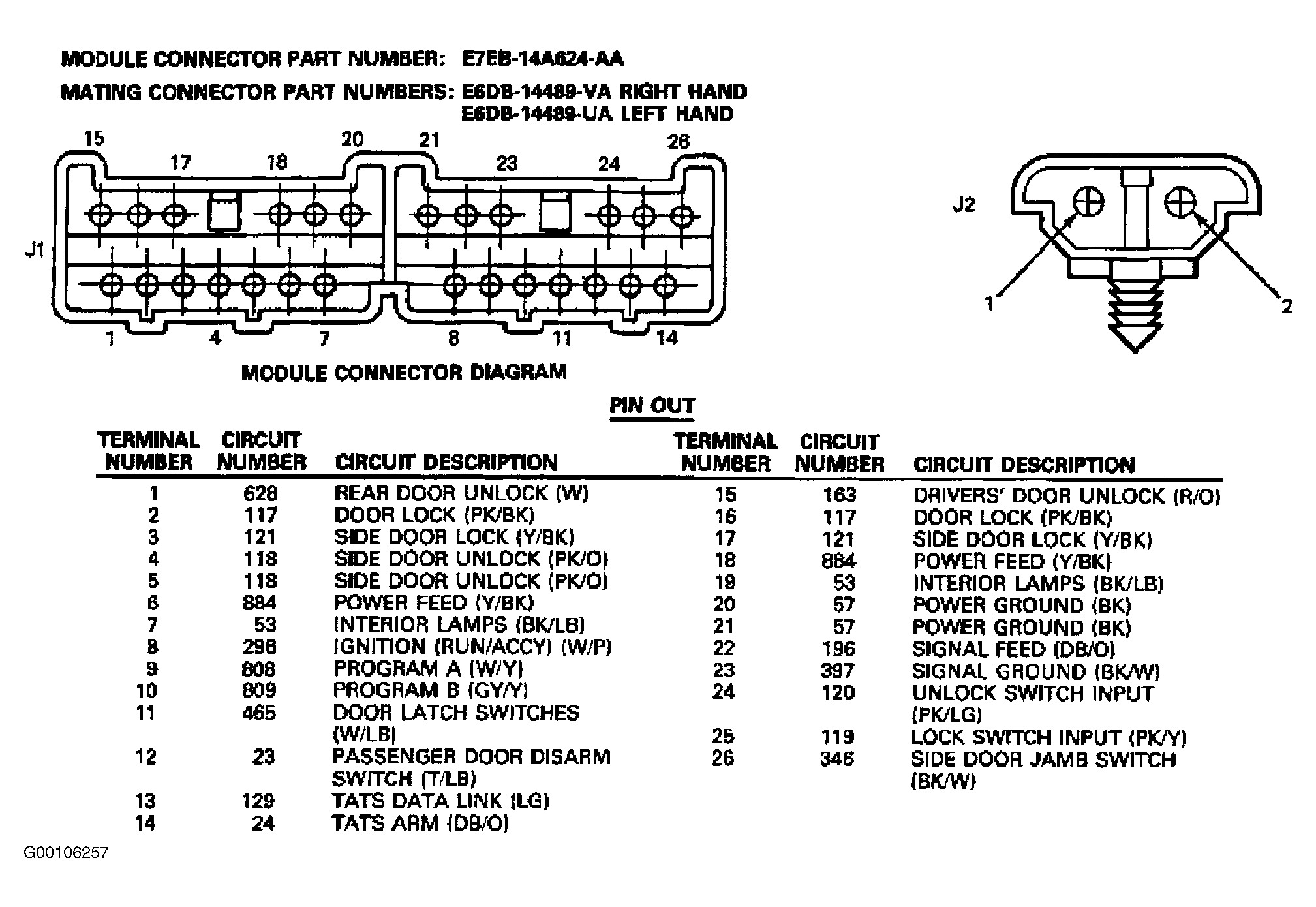

Fig 1: Identifying Remote Convenience Module Connector Terminals
Courtesy of FORD MOTOR CO.
