Transmission Position Sensor/Switch: Locations

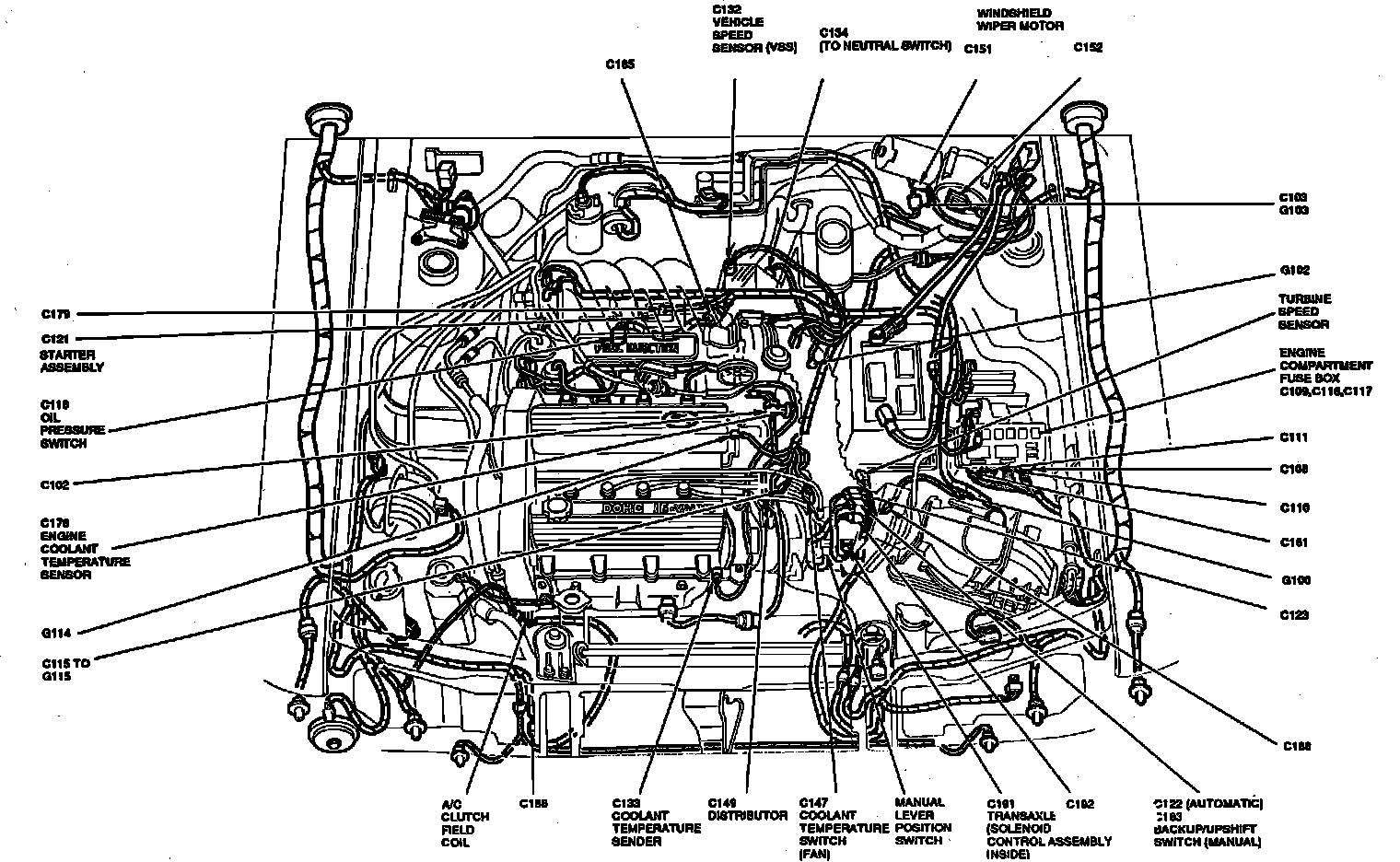

Engine Compartment Components.:




LH Side Of Engine Compartment, Top Of Transaxle

Applicable to: 1992 1.8L

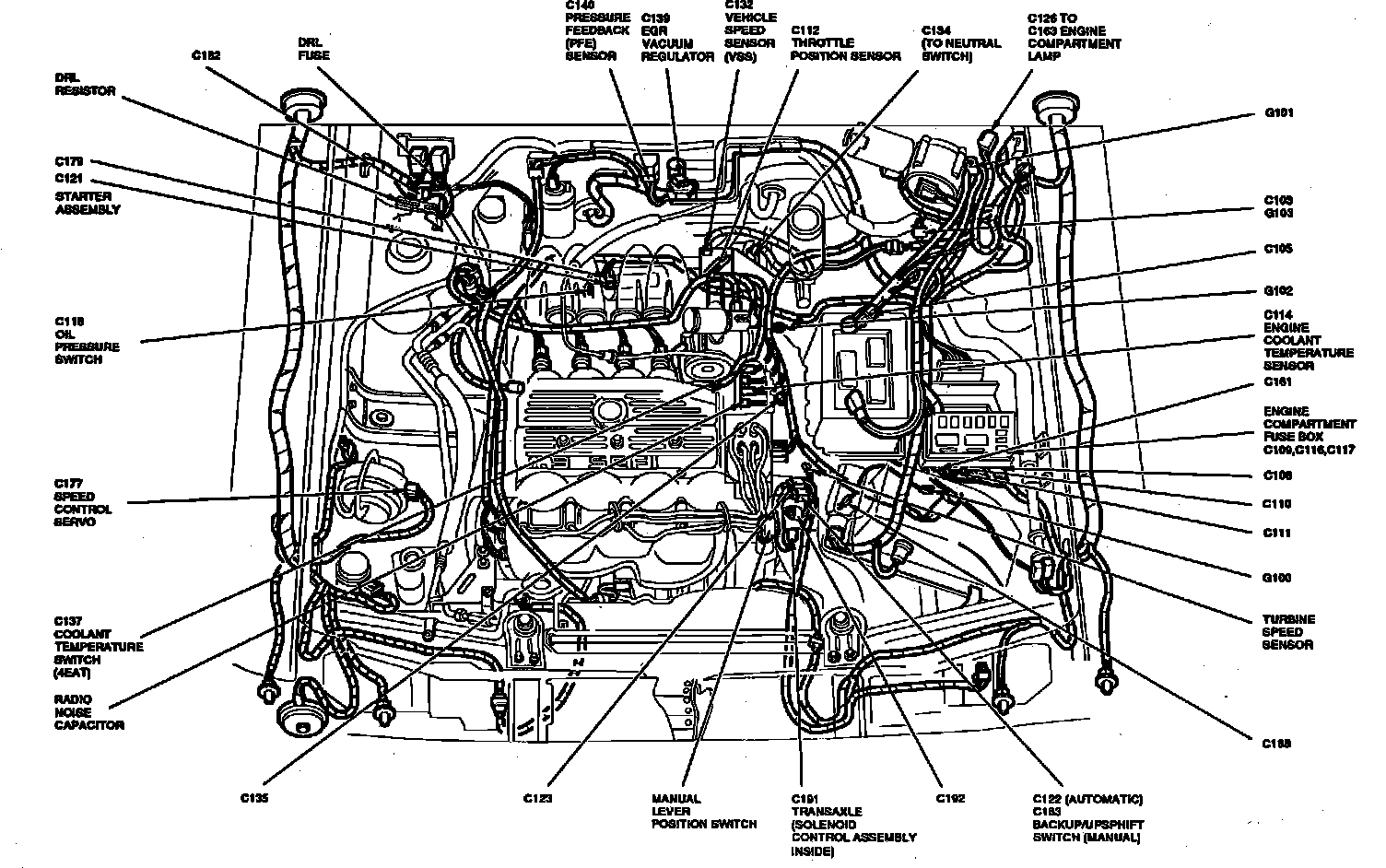

Engine Compartment Components.:




LH Side Of Engine Compartment, Top Of Transaxle

Applicable to: 1992 1.9L
