Home
>>
Ford
>>
1992
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse
>>
Fuse 12
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse 12

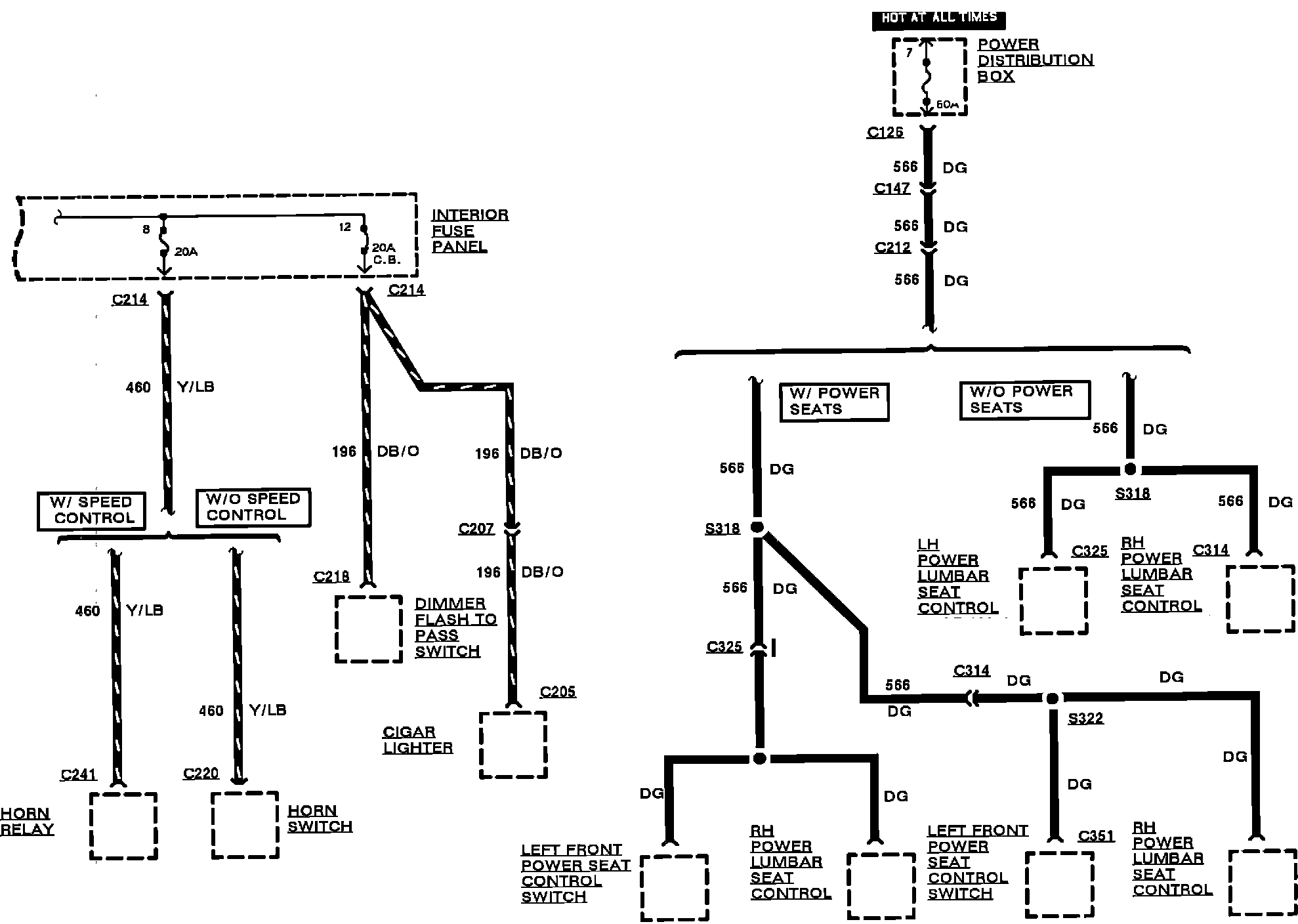

Power Distribution:

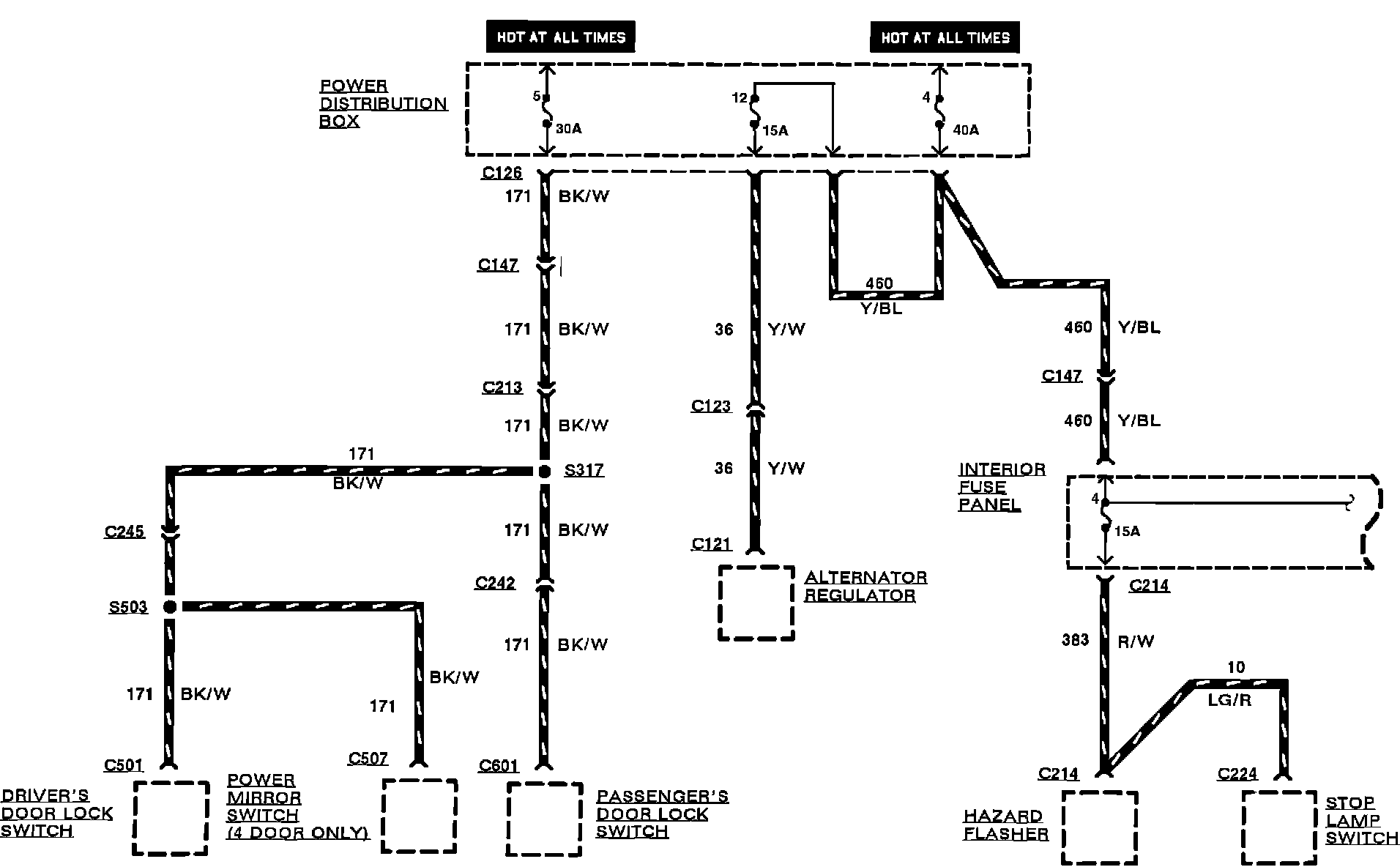

Power Distribution:
