Power Distribution Box

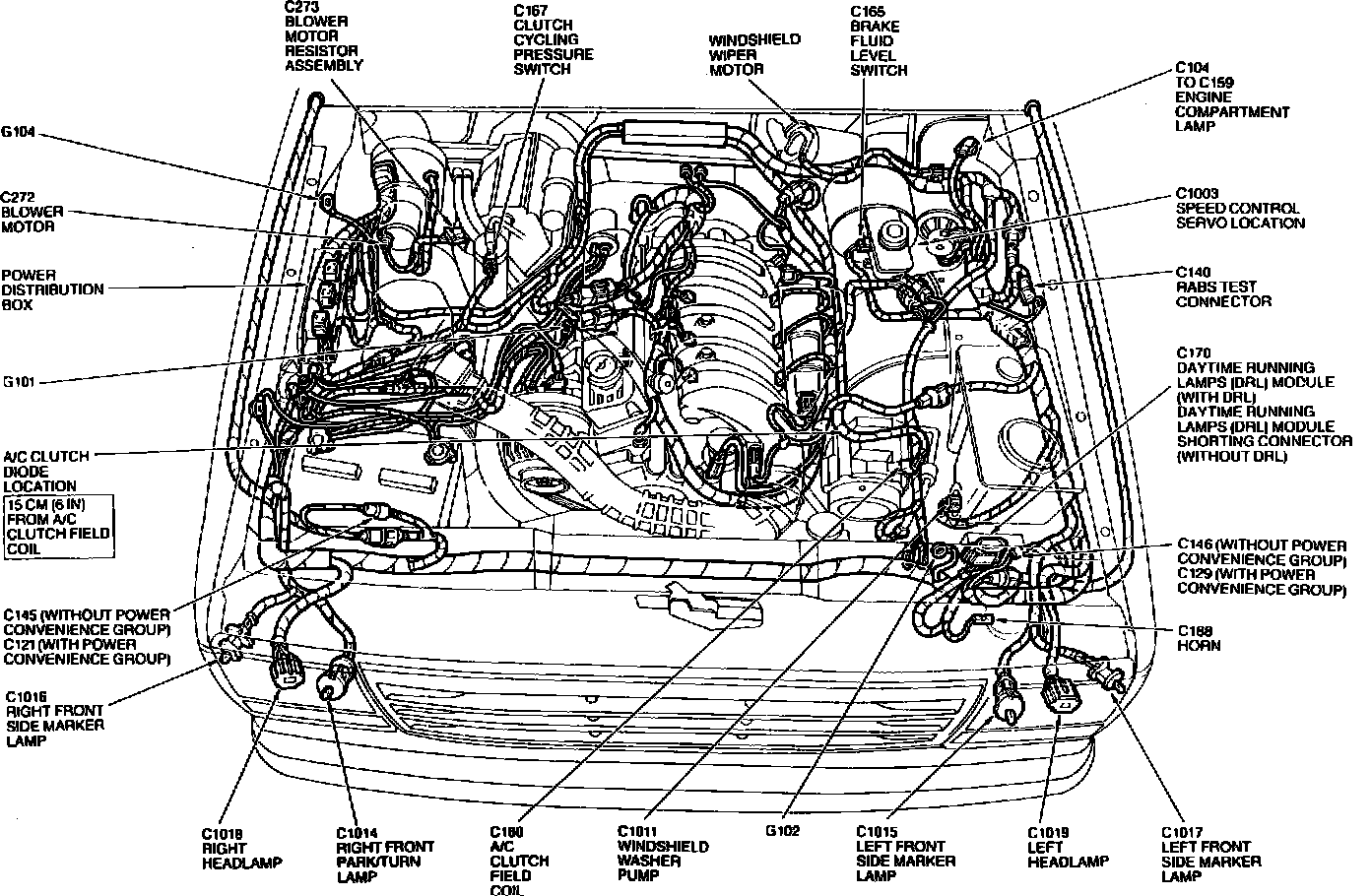

Engine Compartment Components.:




Center Of RH Fender Apron, Above Wheelwell

Applicable to: 2.3L/4-140

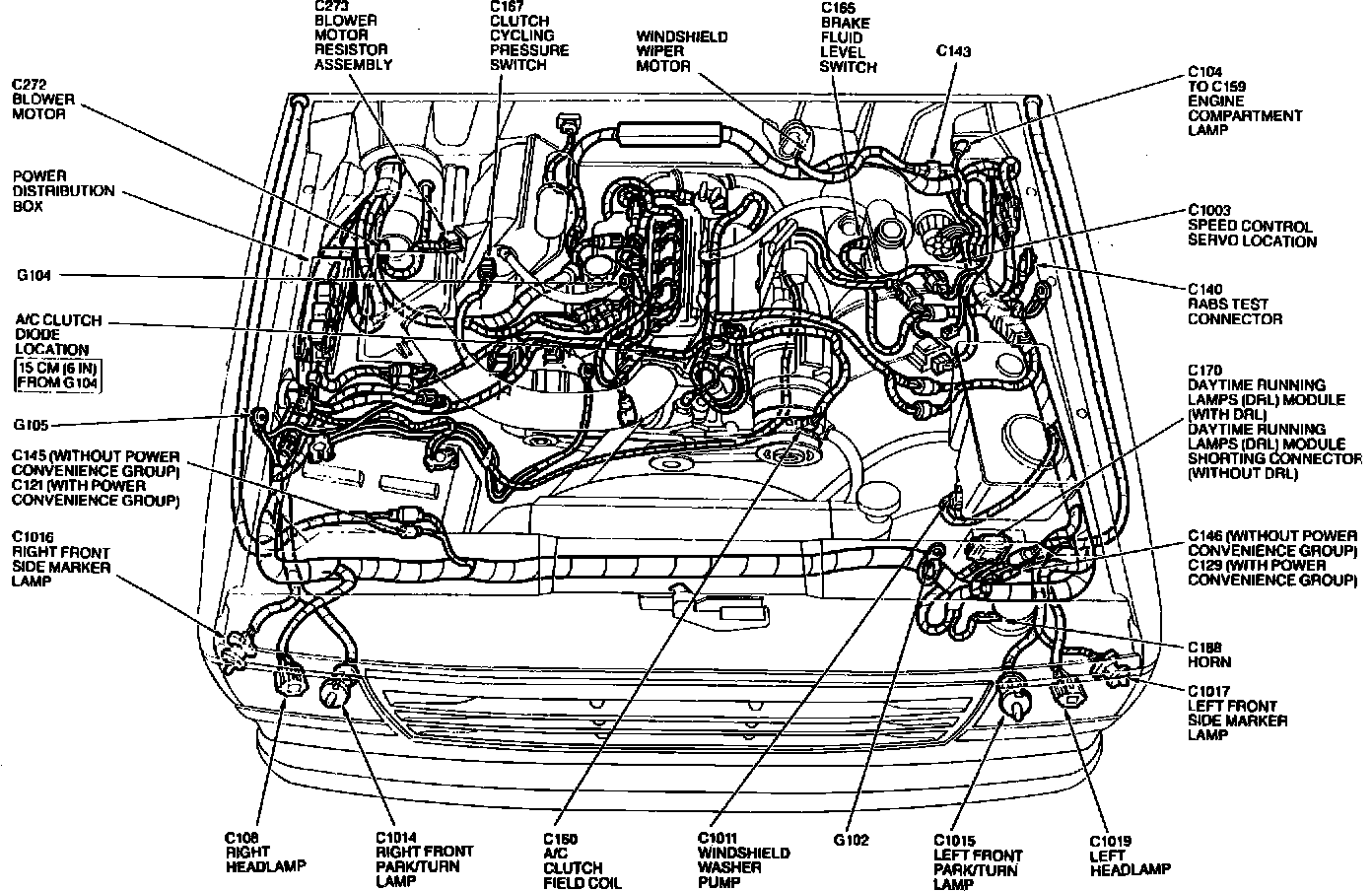

Engine Compartment Components.:




Center Of RH Fender Apron, Above Wheelwell

Applicable to: 2.9L/V6-179

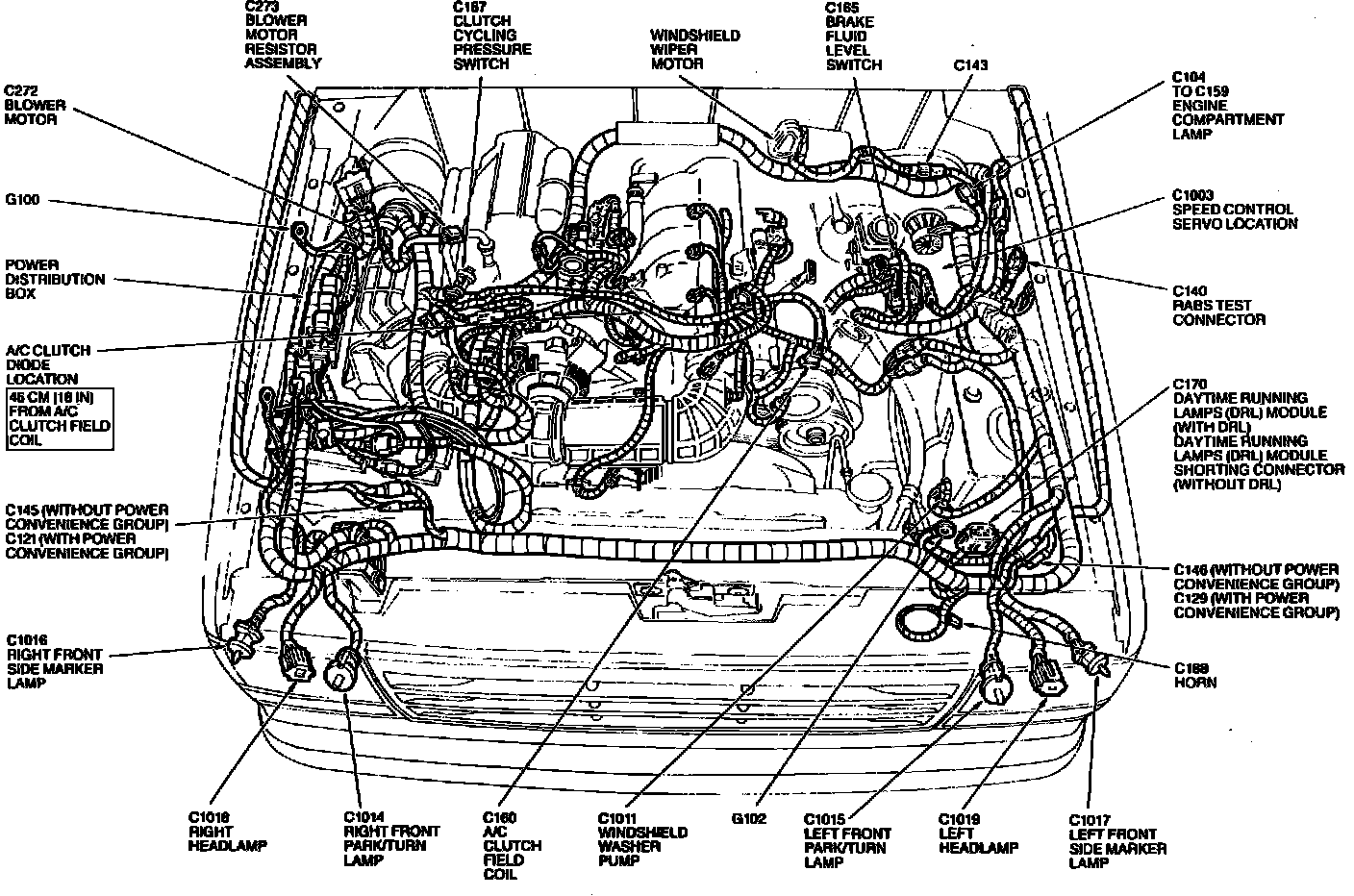

Engine Compartment Components.:




Center Of RH Fender Apron, Above Wheelwell

Applicable to: 3.0L/V6-181

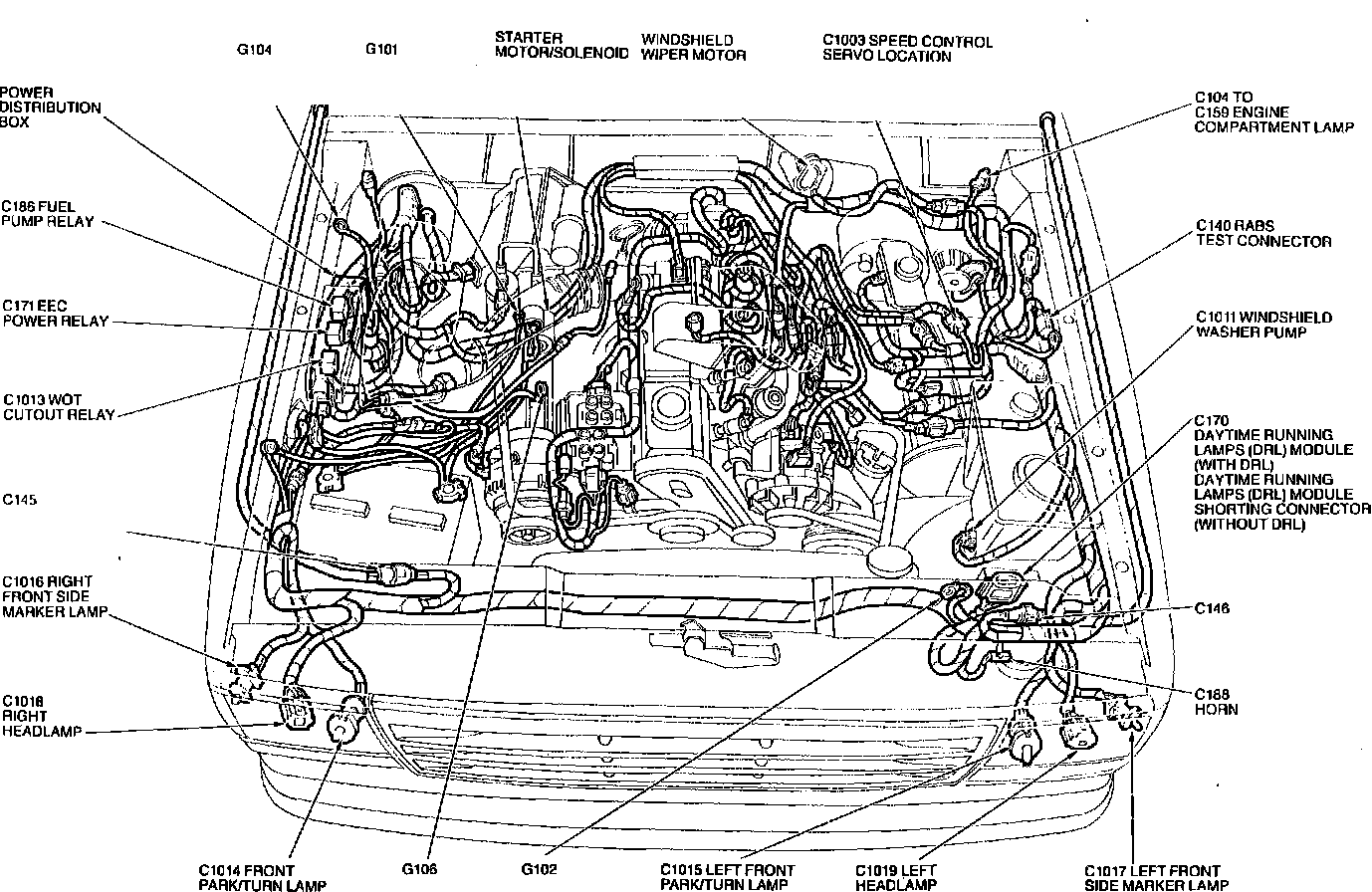

Engine Compartment Components.:




Center Of RH Fender Apron, Above Wheelwell

Applicable to: 4.0L/V6-244
