Passive Restraint Control Module

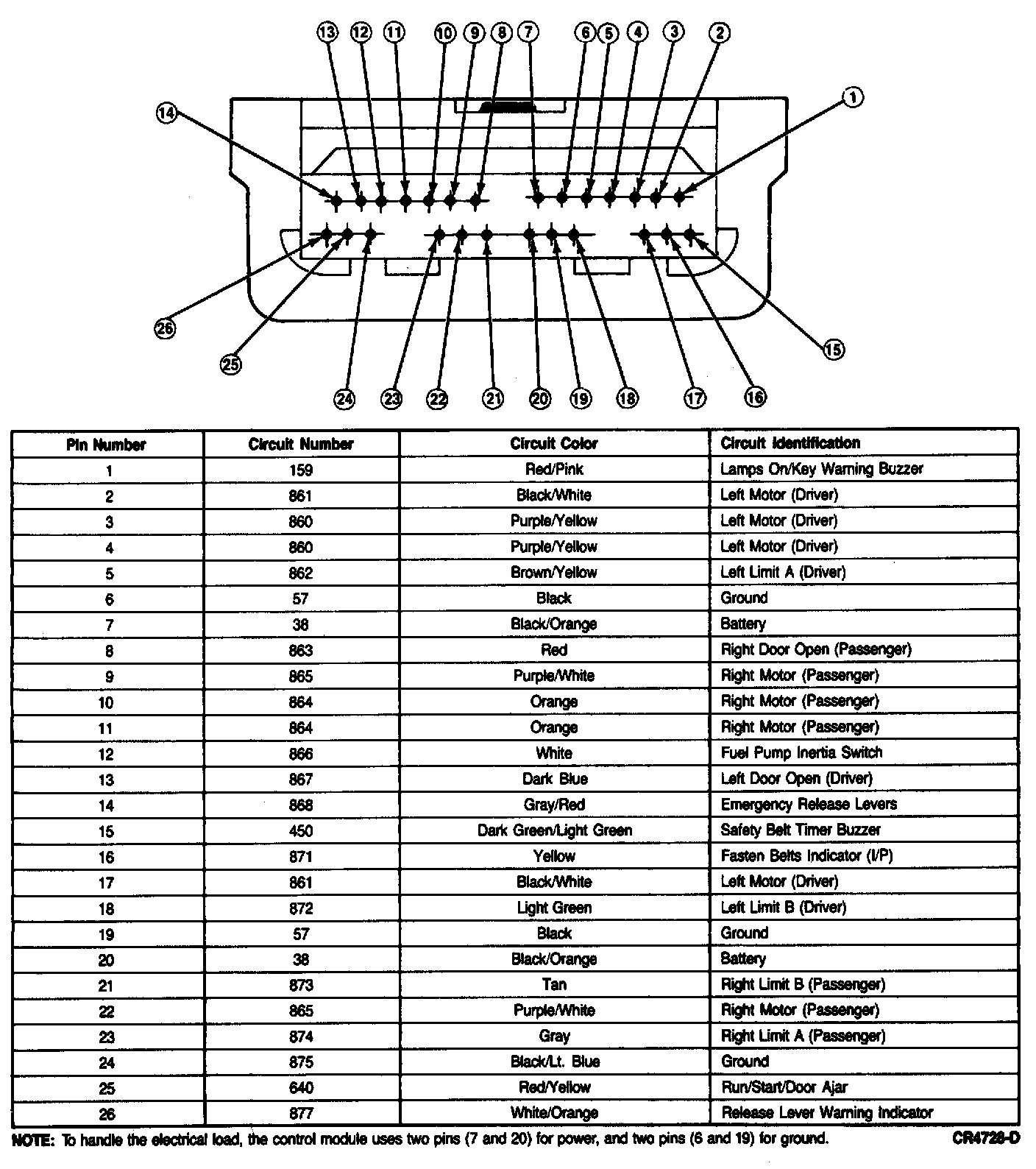

Harness View:

Connectors A and B are part of the 14401 wiring assembly. The control module is located beneath the instrument panel to the right of the steering column.

NOTE: To handle the electrical load, the control module uses two pins (7 and 20) for power, and two pins (6 and 19) for ground.
