Seat Belt Control Module: Service and Repair

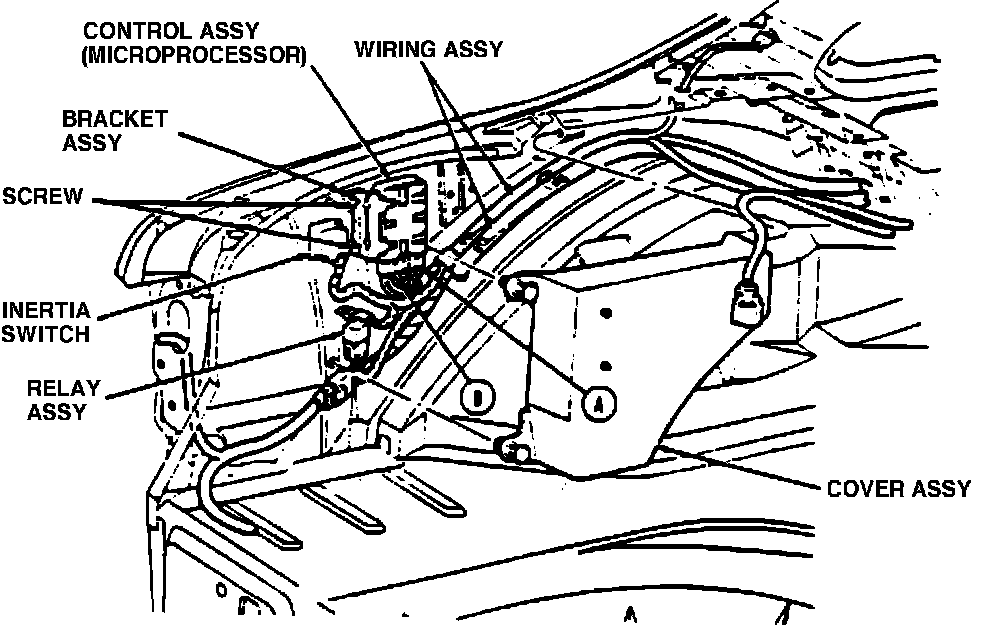

REMOVAL and INSTALLATION
1. Remove lefthand luggage compartment trim panel.
2. Disengage two cover retaining push pins and remove cover.
3. Remove processor assembly from bracket, processor snaps on bracket.
4. Disconnect electrical connectors and remove processor.
5. Reverse procedure to install.
