Wiring Diagrams

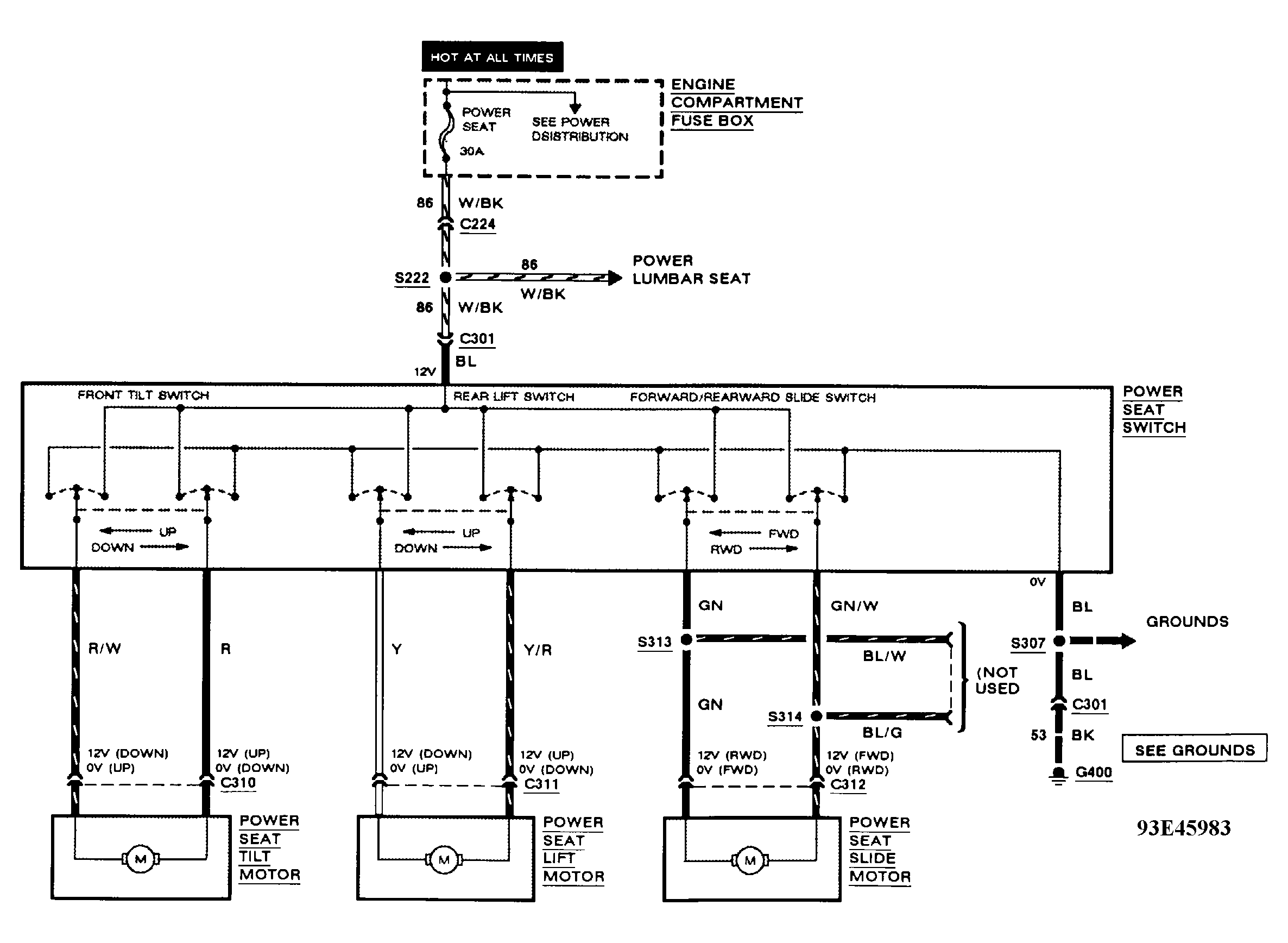

Fig 1: Power Seat Wiring Diagram (Probe)
G93E45983Courtesy of FORD MOTOR CO.

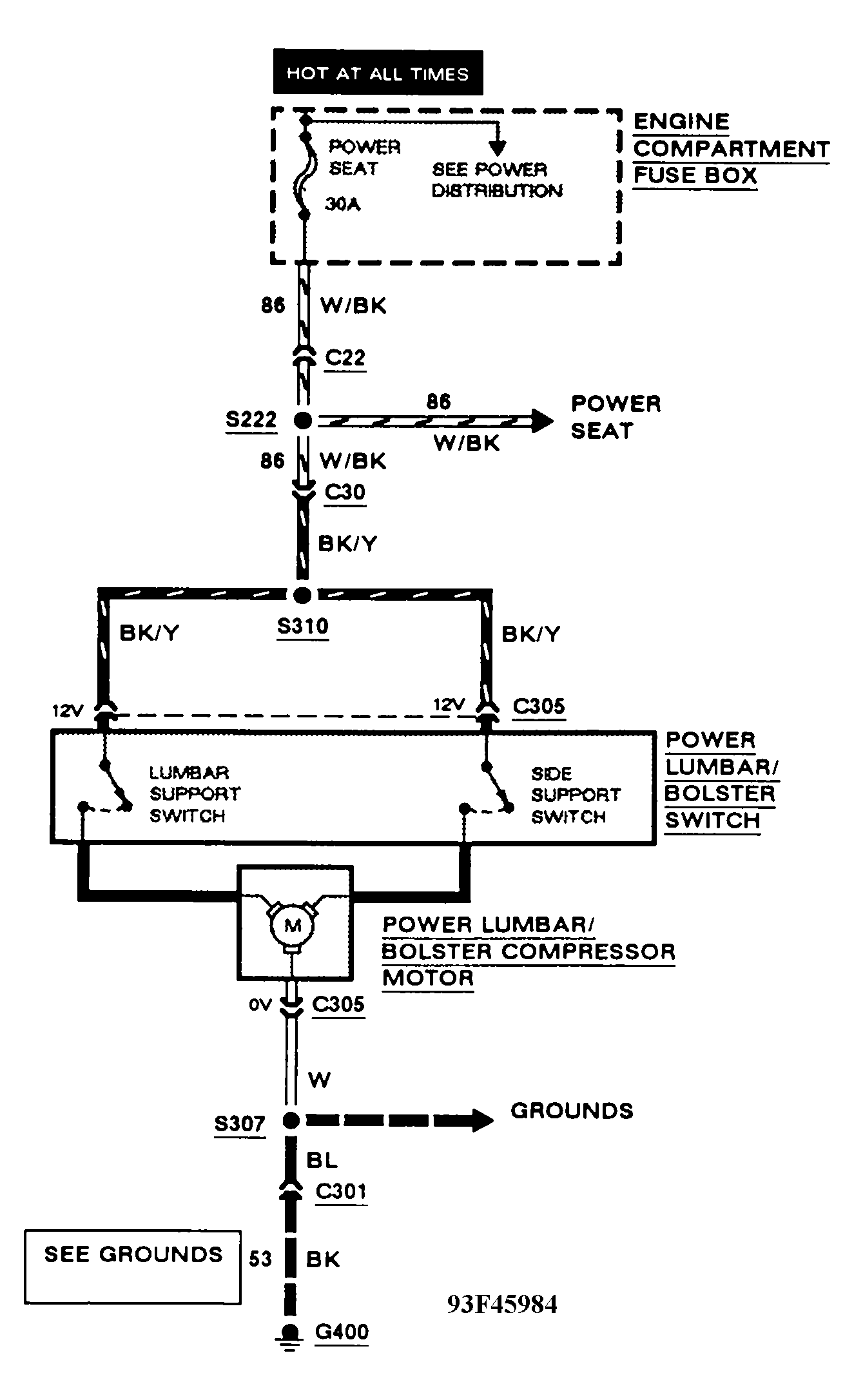

Fig 2: Power Lumbar Seat Wiring Diagram (Probe)
G93F45984Courtesy of FORD MOTOR CO.
