Passive Restraint Control Module: Removal

Disconnect negative battery cable. Remove 2 control module mounting bracket attaching bolts. See Fig 1 . Disconnect module connectors. See Fig 2 . Remove module.

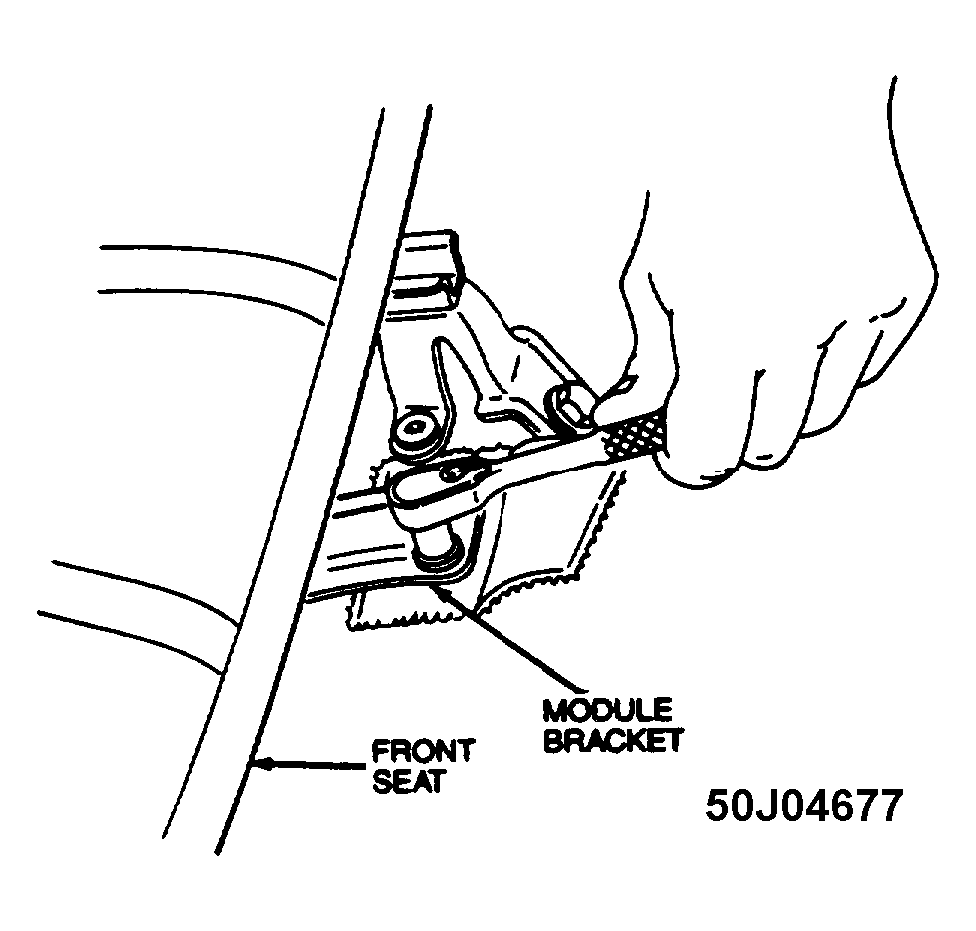

Fig 1: Location of Control Module Mounting Bracket

Courtesy of FORD MOTOR CO.

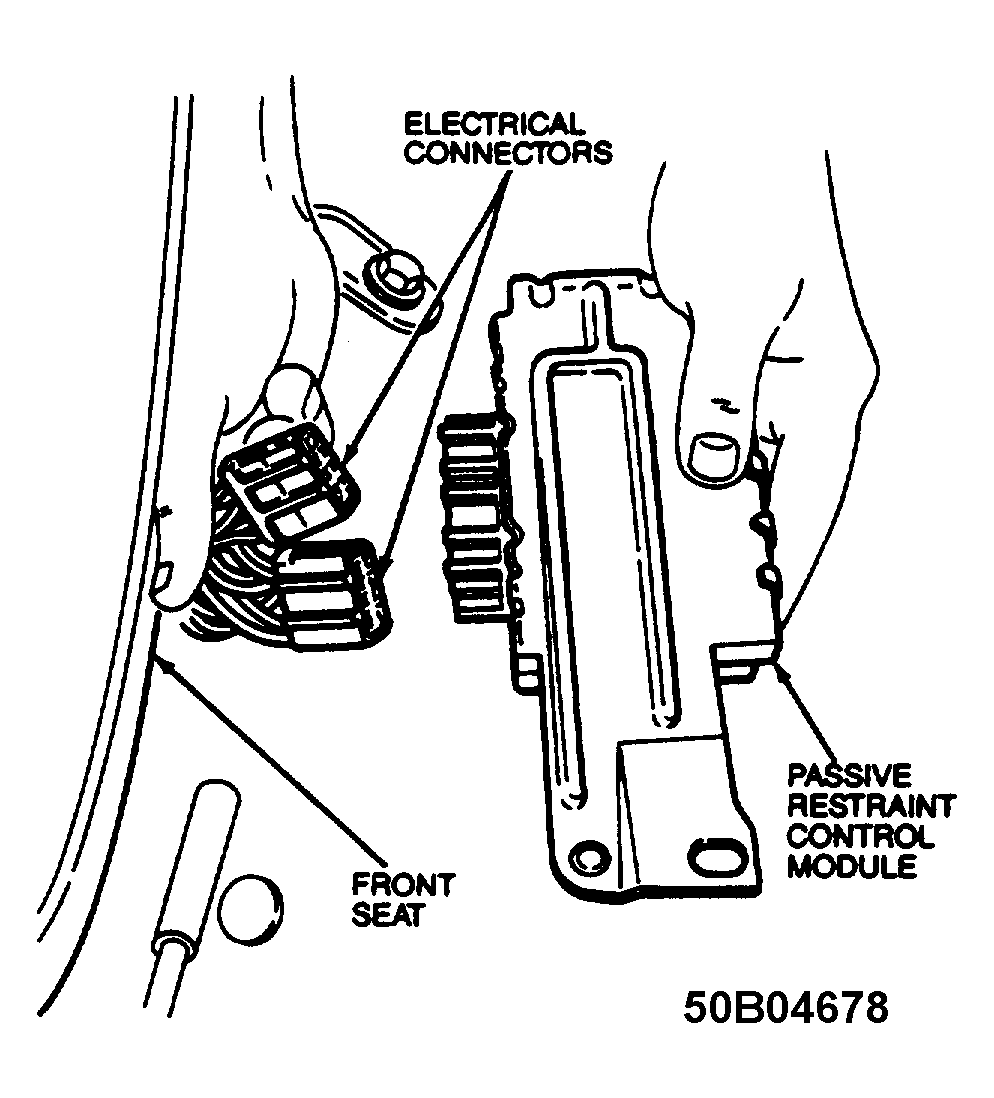

Fig 2: View of Passive Restraint Control Module

Courtesy of FORD MOTOR CO.
