STP - Testing Notes and Schematic

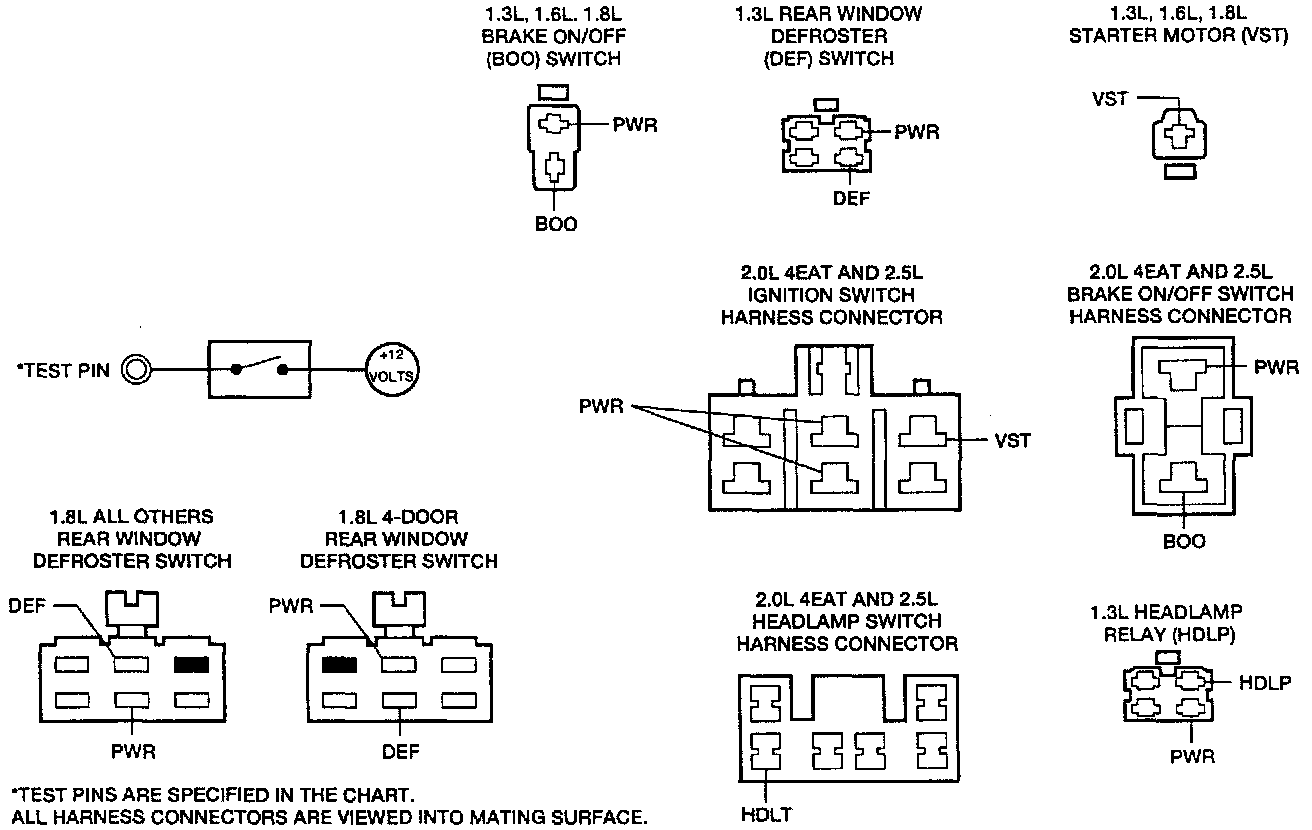

Pinpoint Test STP Schematic:

Enter this Pinpoint Test only when directed here by Quick Test step 9 or 11.

This test is only intended to diagnose the following:

- BOO (brake ON/OFF switch)
- DEF (rear window defroster switch)
- HDLP (head lamp switch)
- VST (vehicle start (ignition) switch)
