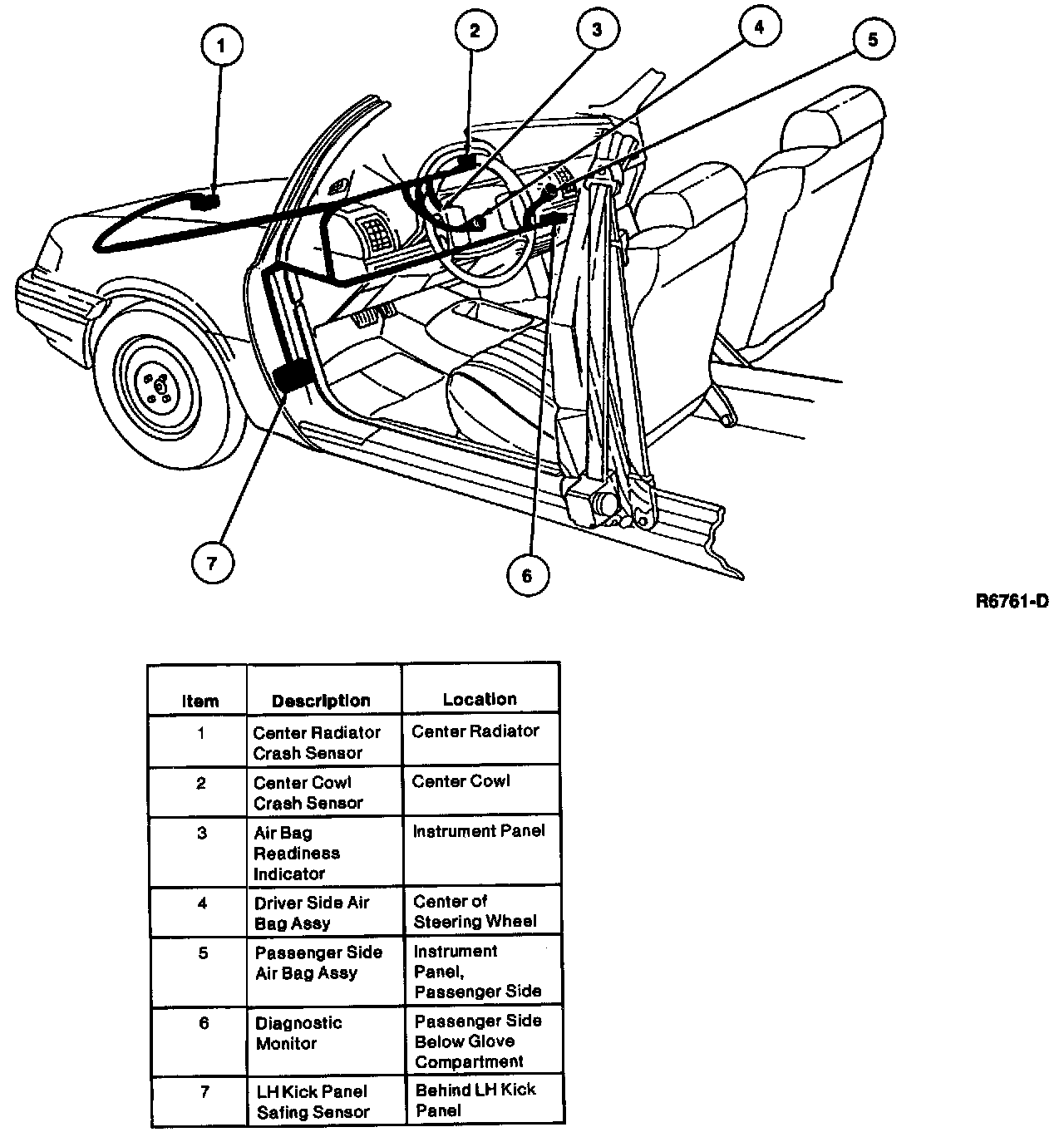

Air Bag Control Module: Locations

1. Center Radiator Crash Sensor-Center of radiator support
2. Center Cowl Crash Sensor-Center cowl top in engine compartment
3. LH kick Panel Safing Sensor-LH cowl panel behind trim panel
4. Driver Air Bag-Steering wheel
5. Passenger Air Bag (Optional)-Above glove compartment
6. Clockspring-Behind steering wheel
7. Diagnostic Monitor-Behind glove compartment
