Overhaul - AODE & AODE-W: Identification
Transmission AODE/AODE-W is identified by the code letter on the lower line of Vehicle Certification Label under TR. This label is attached to the left (driver's) side door lock post. Refer to the TRANSMISSION IDENTIFYING CODE LETTER CHART .

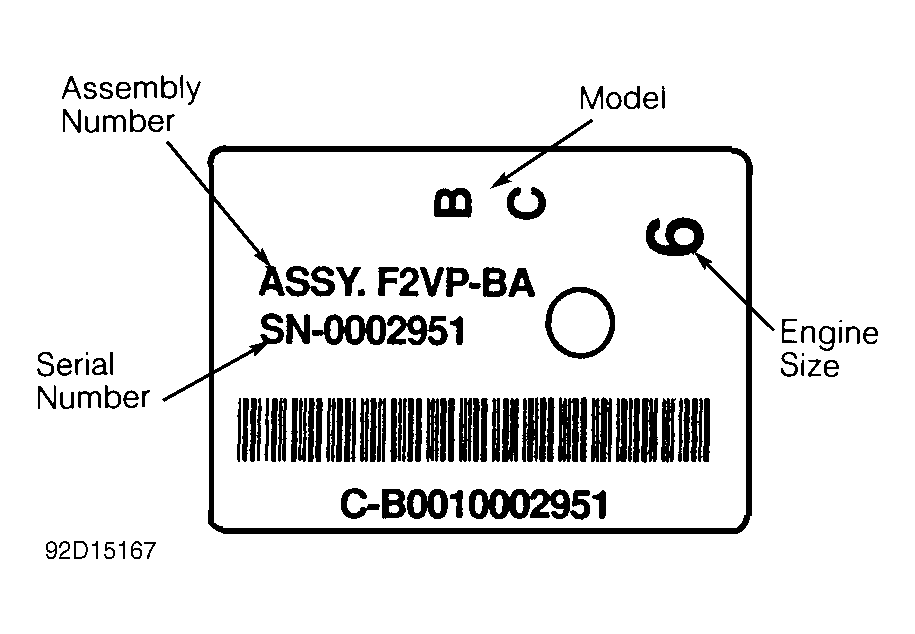

The transmission model may be identified by a metal tag attached to transmission on passenger side of transmission case. Tag shows transmission model, assembly number, serial number and engine size. See Fig 1.
TRANSMISSION IDENTIFYING CODE LETTER CHART
| Application | Letter ID |
|---|---|
| Cougar/Thunderbird | L |
| Crown Victoria, Grand Marquis, Mustang & Town Car | P |
| Mark VIII | L |
| E, F Series | U |
