A/T Technical Data

4R70W 4-spd A/T, Shift Solenoid Chart (Econoline):

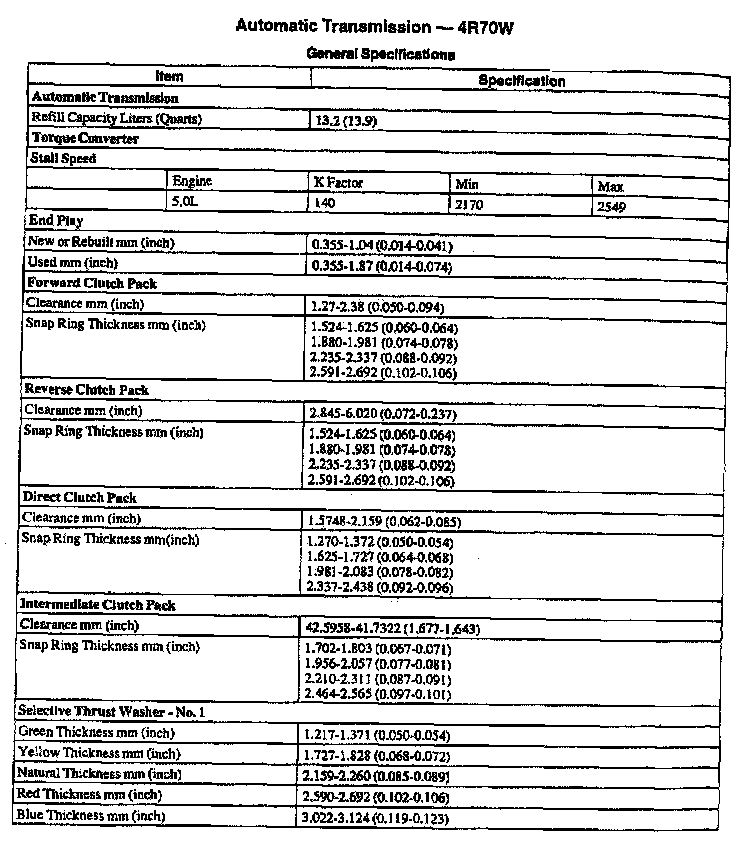

4R70W 4-spd A/T, End Play/Clutch Packs Thickness:

4R70W 4-spd A/T, Gear Ratio:

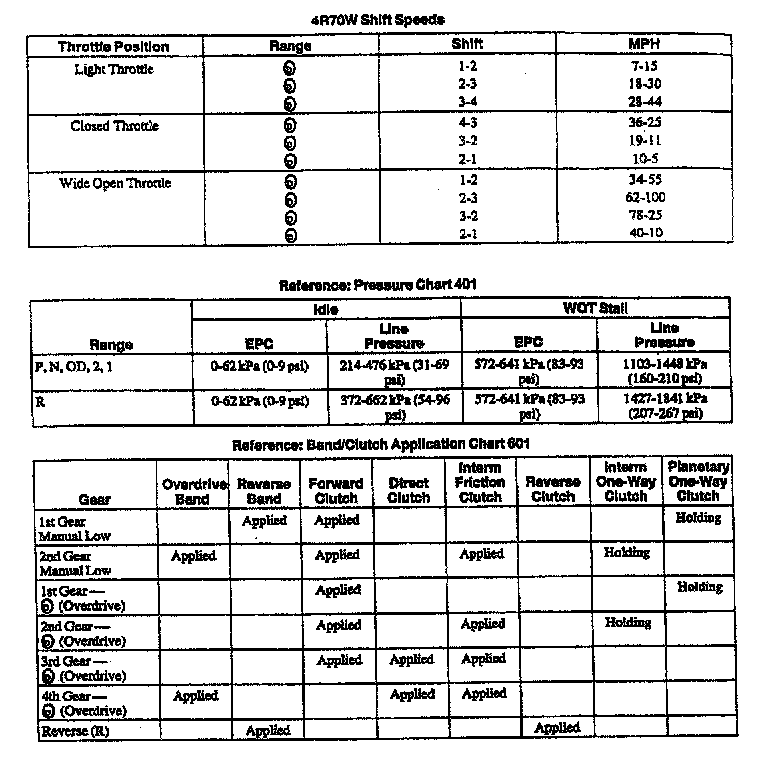

4R70W 4-spd A/T, Shift Speeds/Pressure/Band-Clutch Charts:

4R70W 4-spd A/T, Solenoid Application:

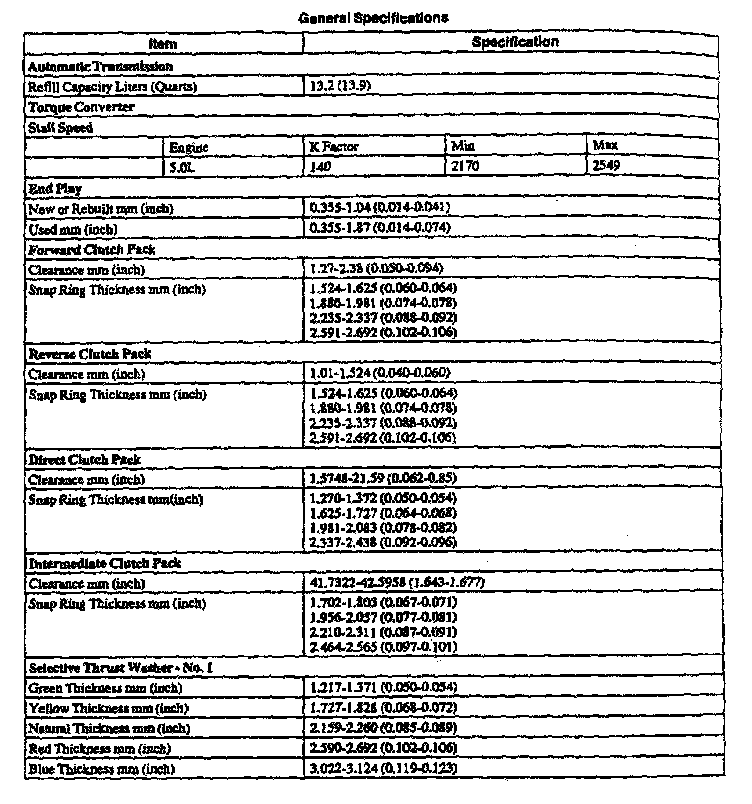

4R70W 4-spd A/T, Clutch Packs/End Play (Expedition):

4R70W 4-spd A/T, Gear Ratios (Expedition):

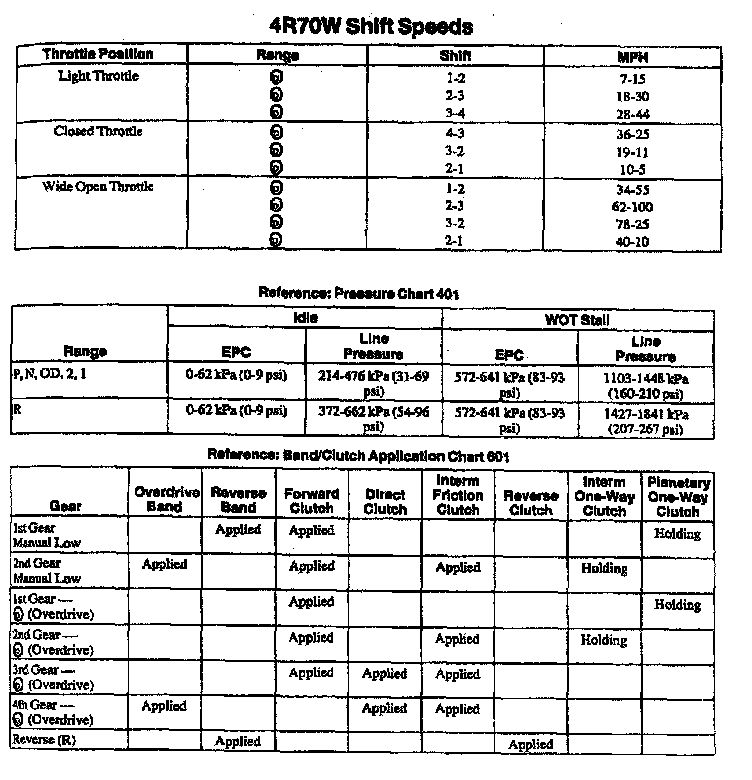

4R70W 4-spd A/T, Shift Speeds/Band-Clutch Application:

4R70W 4-spd A/T, Solenoid Application:

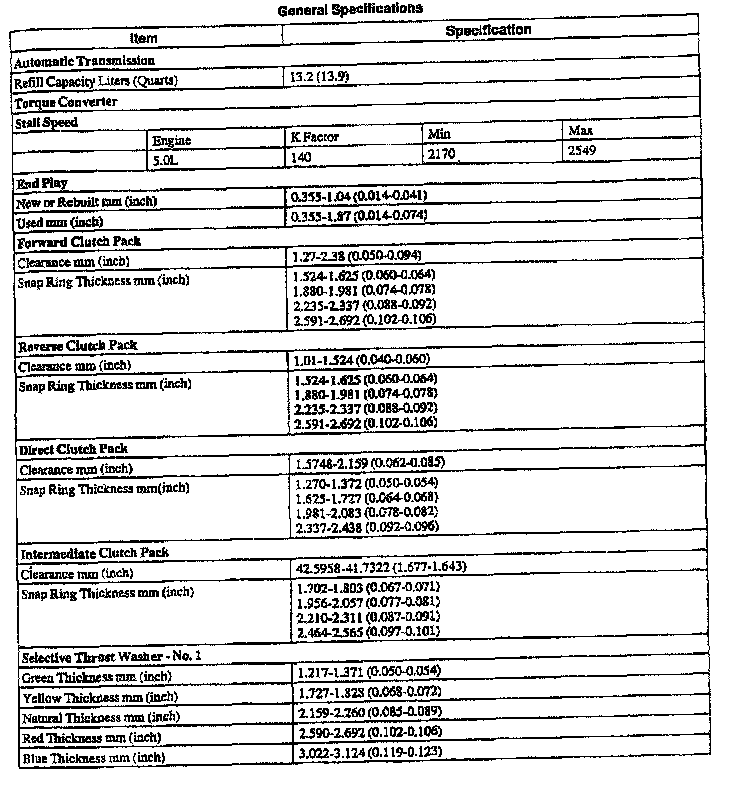

4R70W 4-spd A/T, Clutch Pack Thickness (Explorer/Mountaineer):

4R70W 4-spd A/T, Gear Ratios (Explorer/Mountaineer):

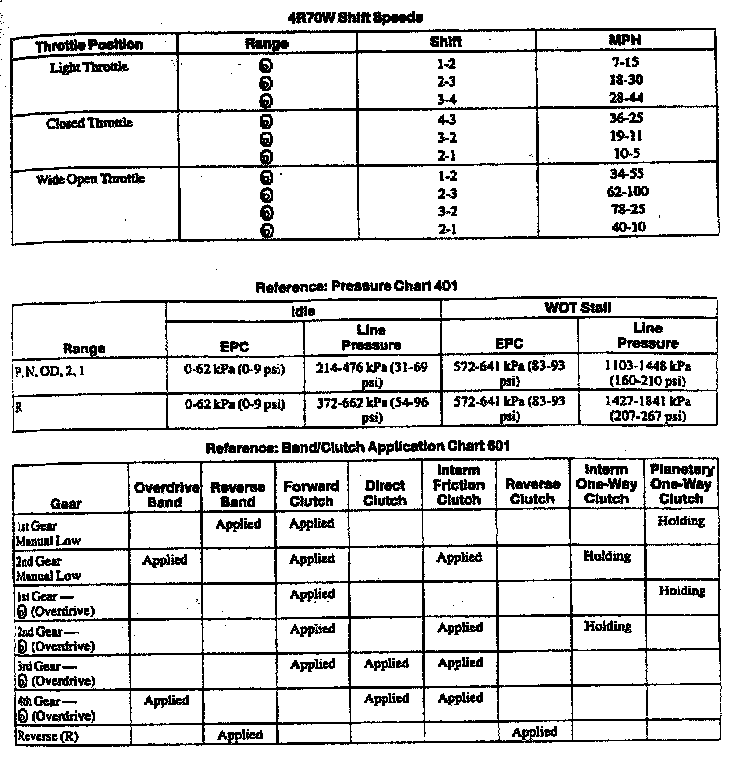

4R70W 4-spd A/T, Shift Speeds/Pressure Chart:

4R70W 4-spd A/T, Solenoid Application:

4R70W 4-spd A/T, Converter/End Play (F150/250):

4R70W 4-spd A/T, Clutch Pack Thickness:

4R70W 4-spd A/T, Gear Ratio/Shift Speeds (F150/250):

4R70W 4-spd A/T, Line Pressure-Band/Clutch Application:

4R70W 4-spd A/T, Solenoid Application:
