A/T Torque Data

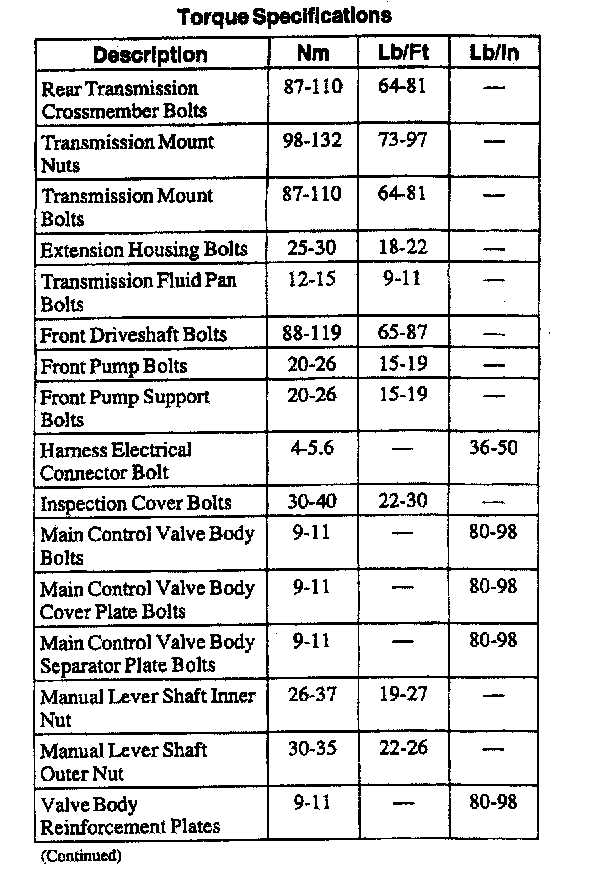

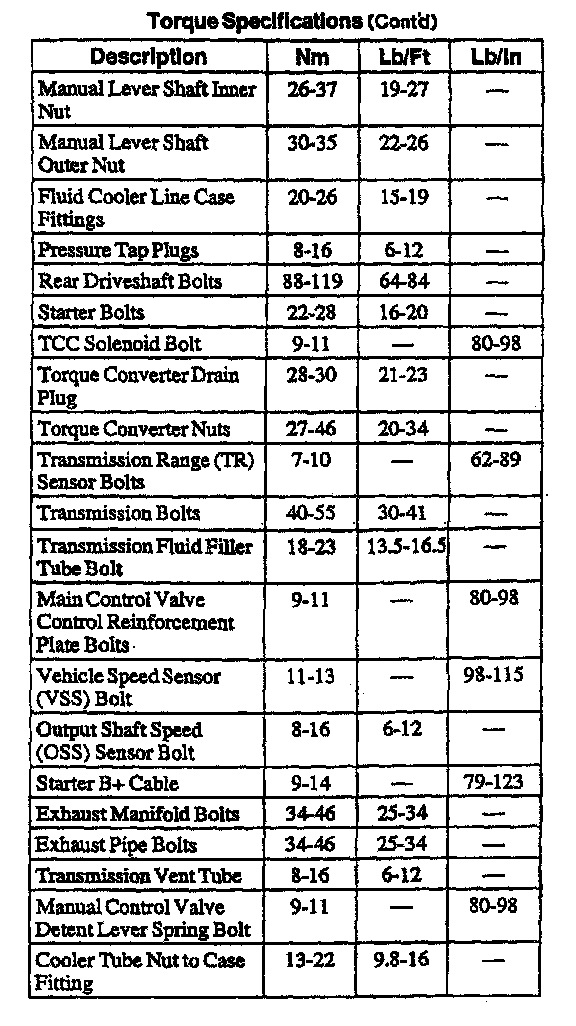

4R70w 4-spd A/T, Transmission Torque (Econoline):

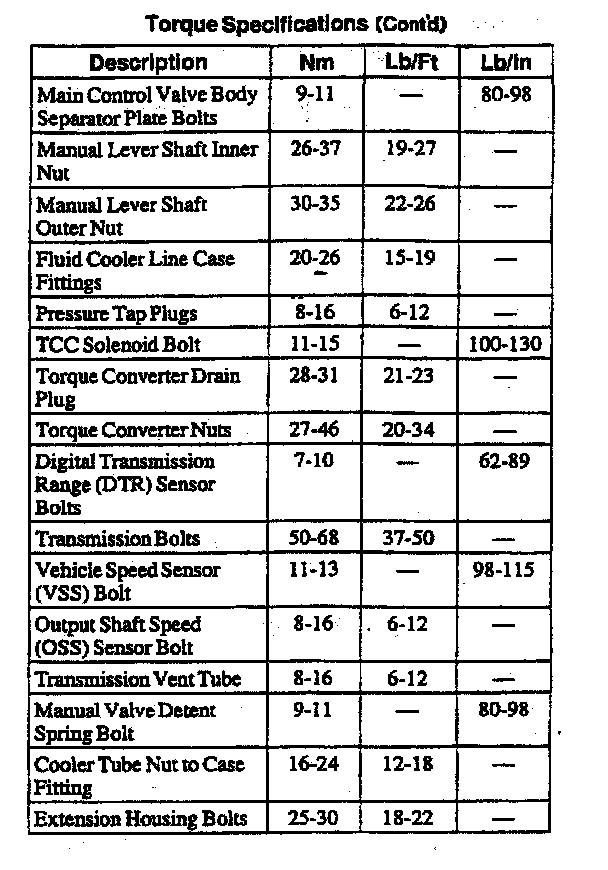

4R70W 4-spd A/T, Transmission Torque:





E4OD/4R70W 4-spd A/T, Transmission Cooler:

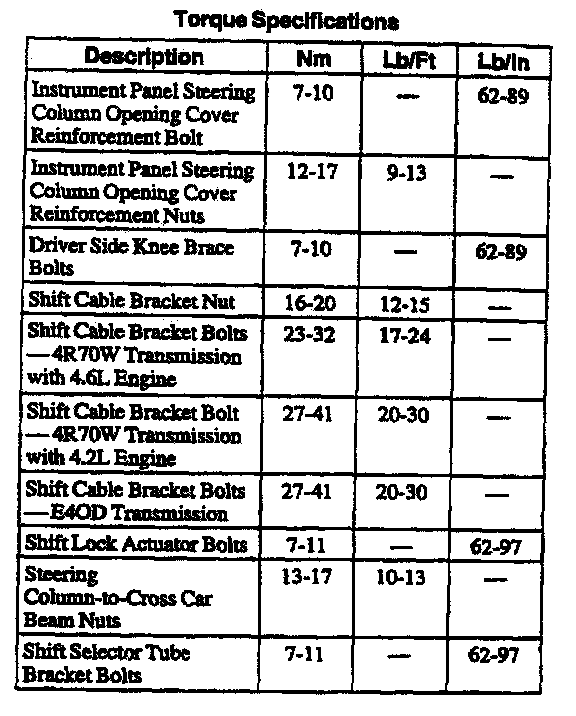

4R70W 4-spd A/T, External Controls:

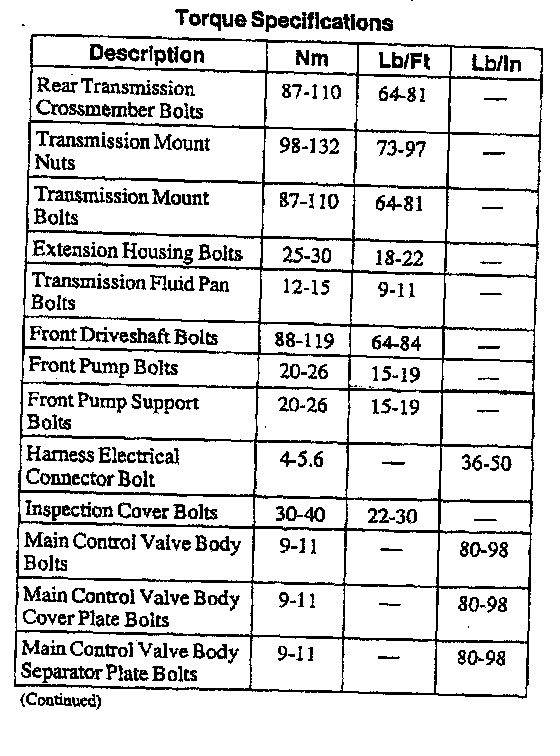

4R70W 4-spd A/T, Transmission Torque (Expedition):

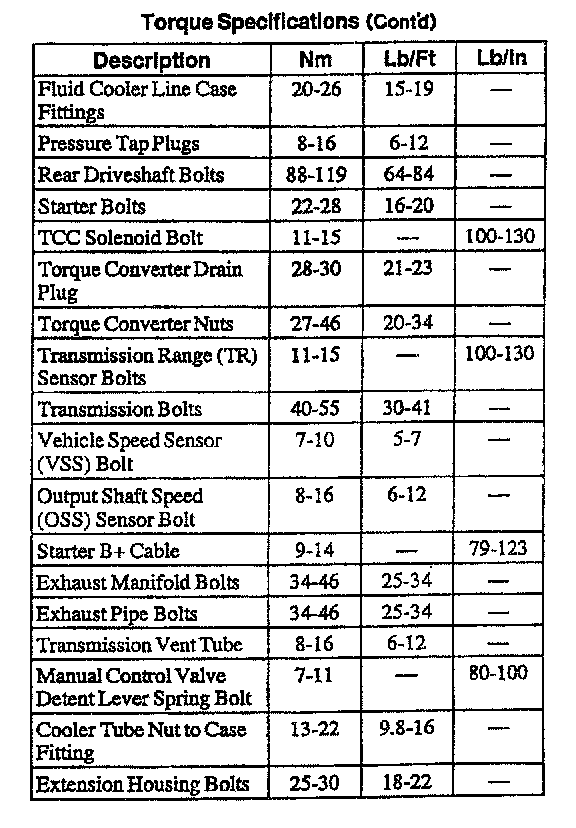

4R70W 4-spd A/T, Transmission Torque:

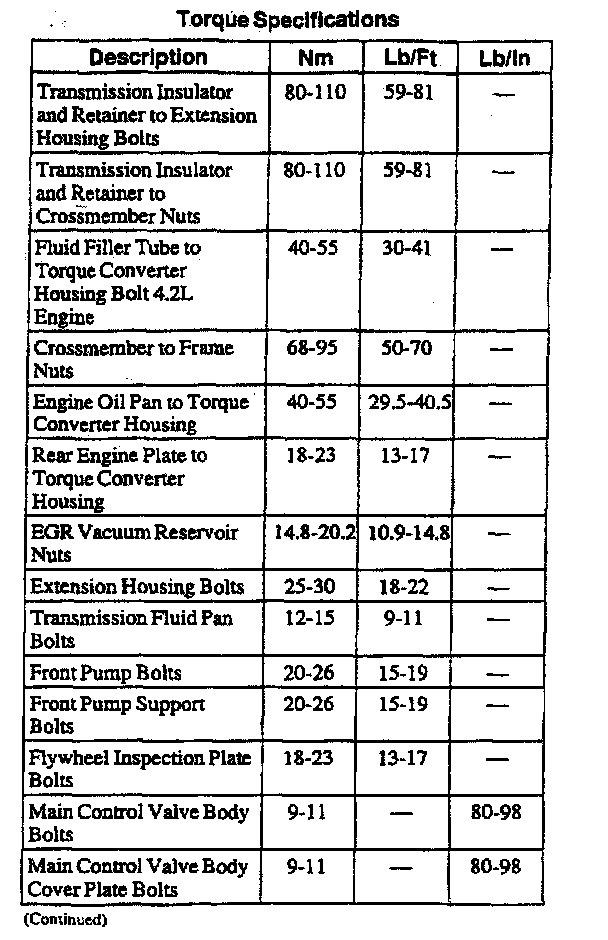

4R70W 4-spd A/T, Transmission Torque (Explorer/Mountaineer):





4R70W 4-spd A/T, Transmission Torque:





4R70W 4-spd A/T, Transmission Cooler:





4R70W 4-spd A/T, External Controls:

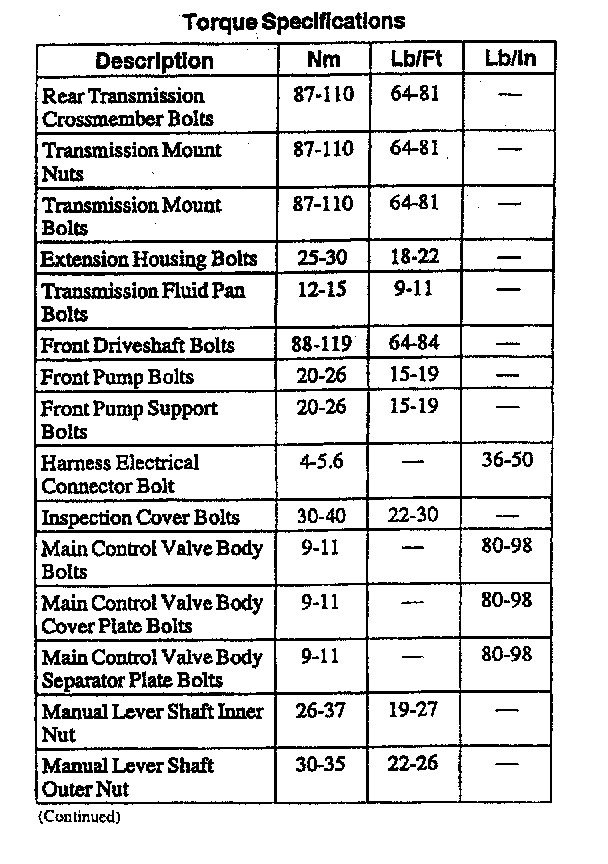

4R70W 4-spd A/T, Transmission Torque (F150/250):

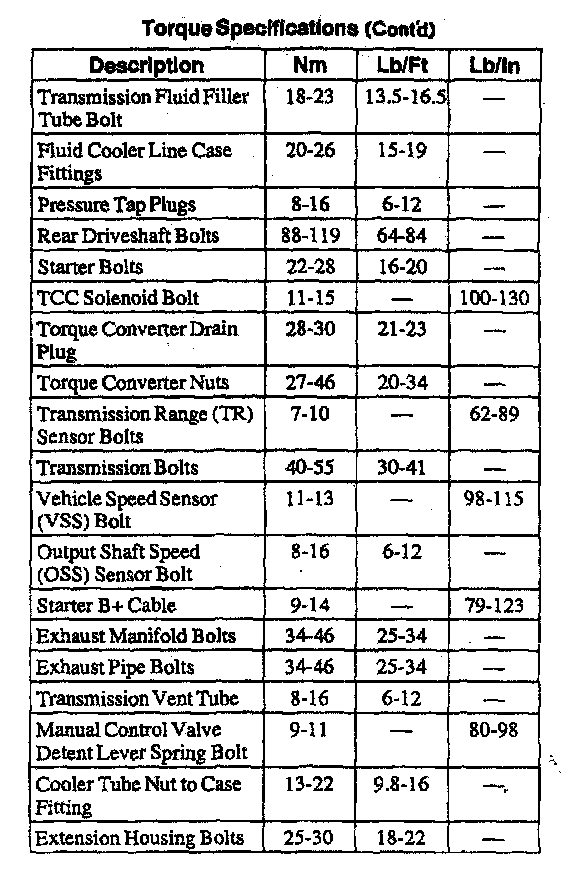

4R70W 4-spd A/T, Transmission Torque (F150/250):
