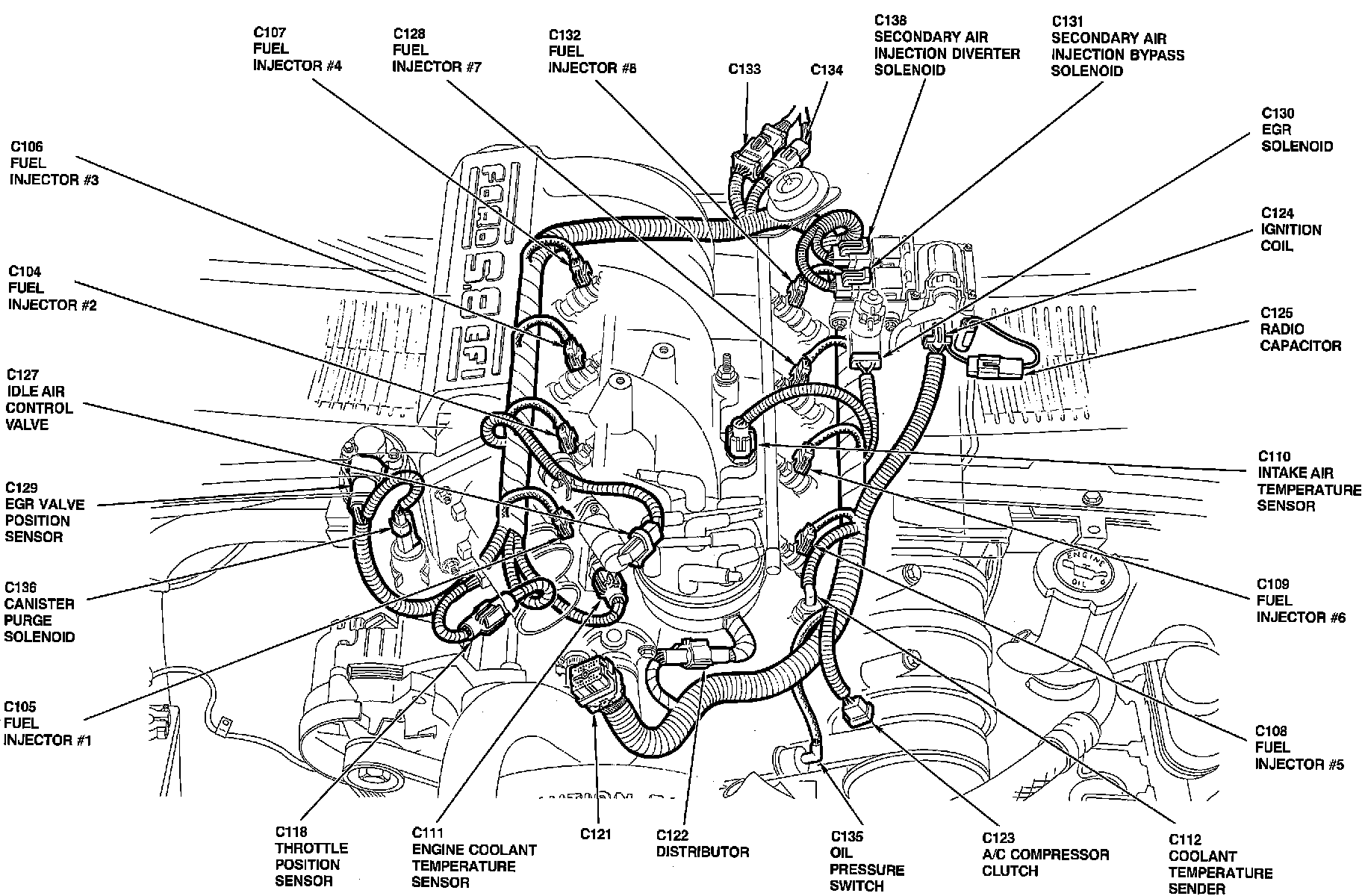

Engine Views

Component Locations:

A/C COMPRESSOR CLUTCH
CANISTER PURGE SOLENOID
COOLANT TEMPERATURE SENDER
DISTRIBUTOR
EGR SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
IDLE AIR CONTROL VALVE
IGNITION COIL
OIL PRESSURE SWITCH
PARK/NEUTRAL POSITION SWITCH
RADIO CAPACITOR
SECONDARY AIR INJECTION BYPASS (AIRB) SOLENOID
SECONDARY AIR INJECTION DIVERTER (AIRD) SOLENOID
THROTTLE POSITION SENSOR
