Audible Warning Device Control Module: Locations

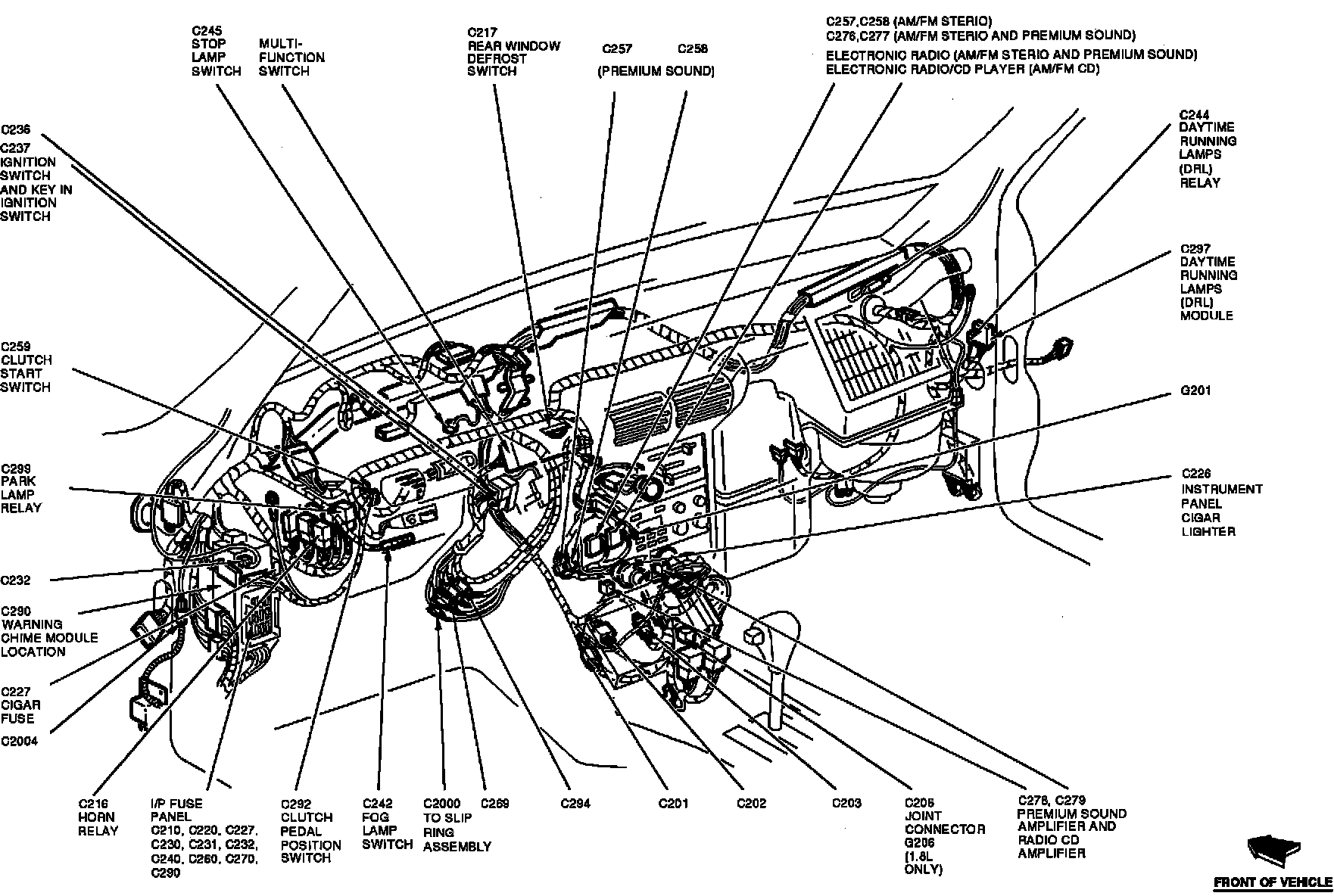

Component Locations:




The Warning Chime Module is located behind LH side of I/P, on rear of I/P fuse panel.
