Ford
>>
1994
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Master Window/Door Lock Control Switch
>>
Convertible
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Convertible

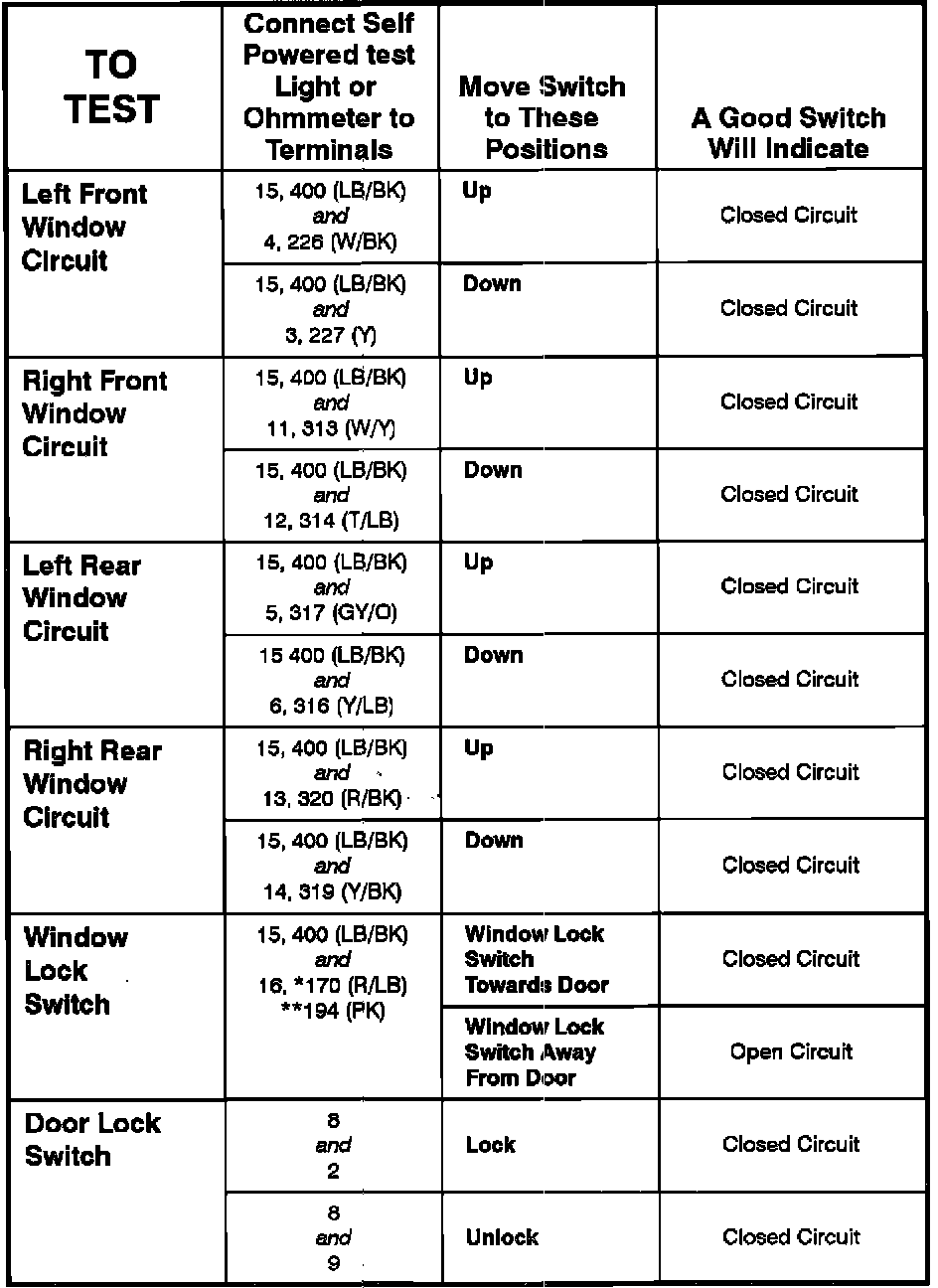

Component Testing Procedure:
Component Testing Procedure:
Terminal ID:

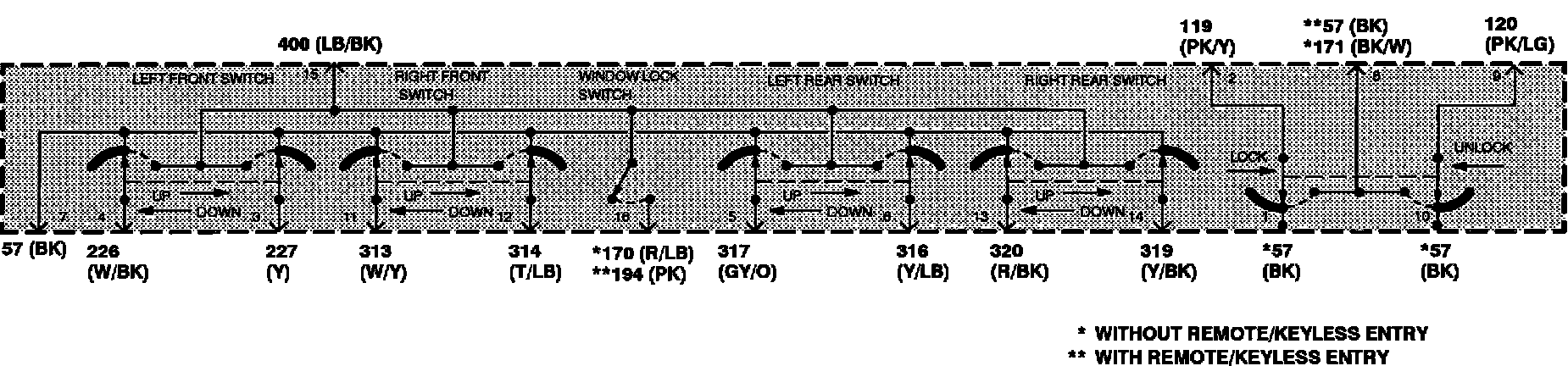

Schematic:
