Relay Box: Locations

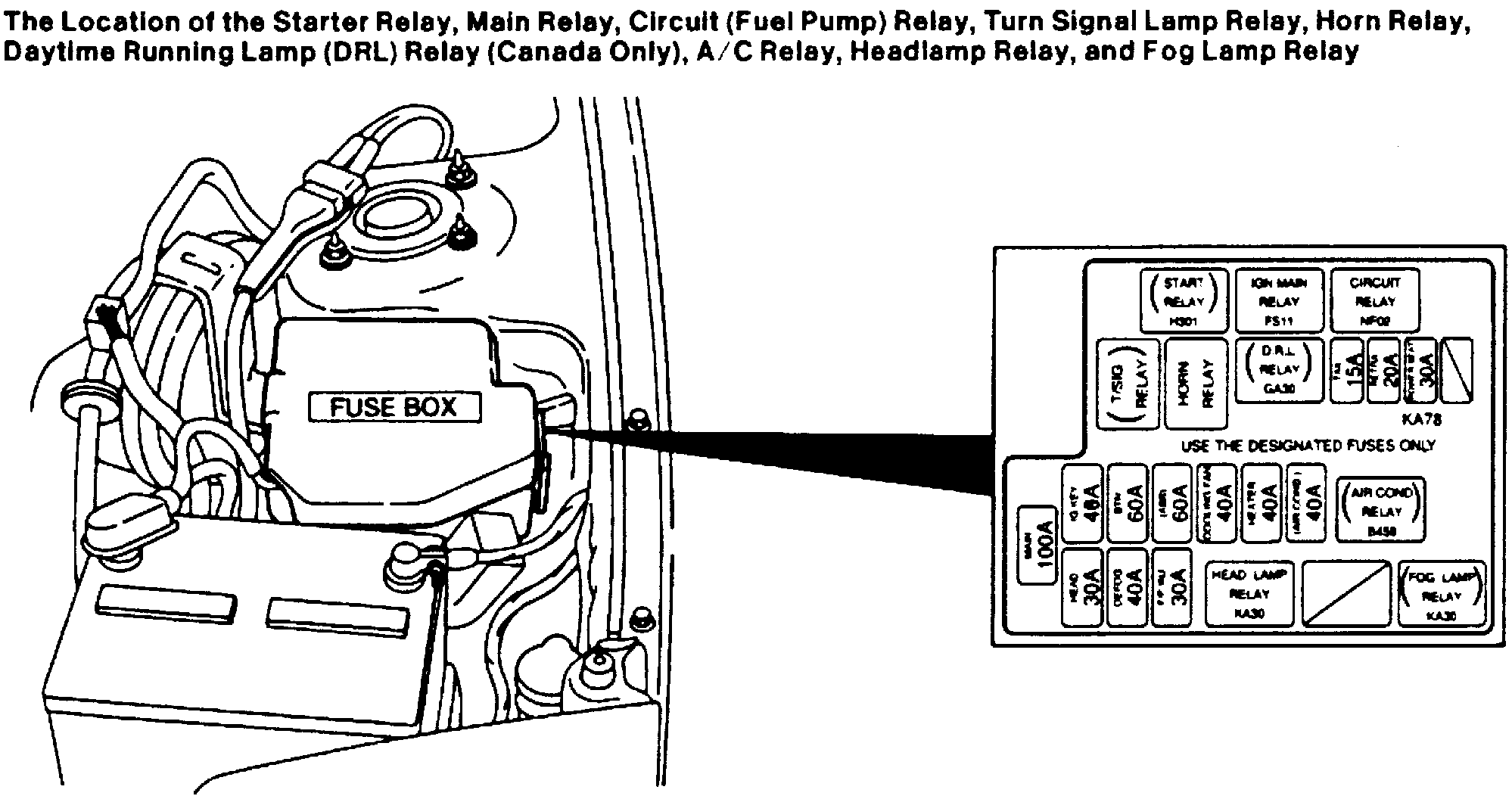

Fig. 1 Relay Center Location:





The relay center is located on left front inner fender, in the engine compartment, near battery.
