Manual Transmission

NOTE: For tests involving switches, the values will be: switch OFF (released)/switch ON (depressed).

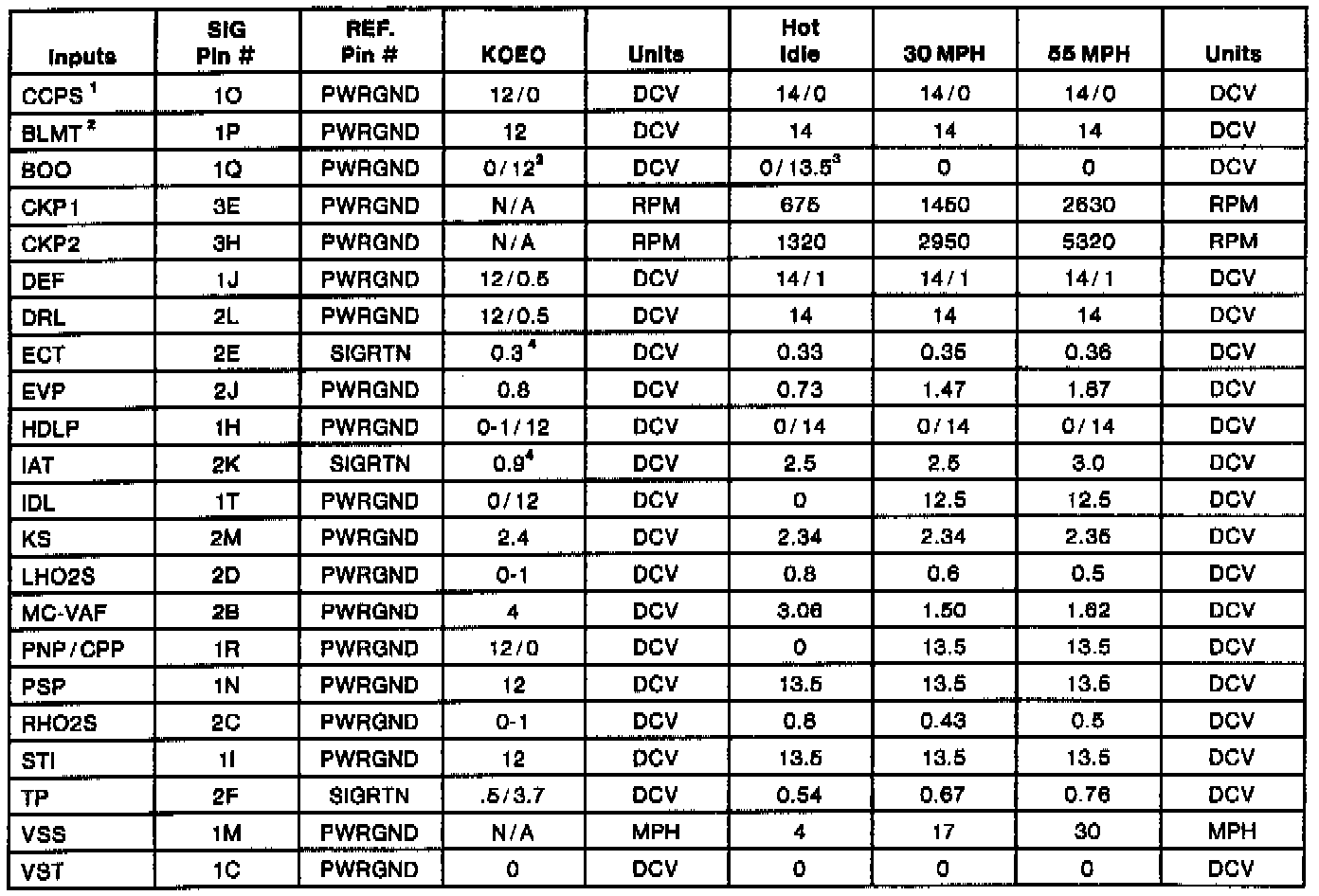

Inputs

Diagnostic Reference Values:

2.5L MTX Diagnostic Reference Values

1 Switch is ON with A/C ON, blower ON.

2 0 volts in position 3 or more.

3 12 volts with brake pedal depressed, 0 volts with brake pedal released.

4 At 20°C(68°F).

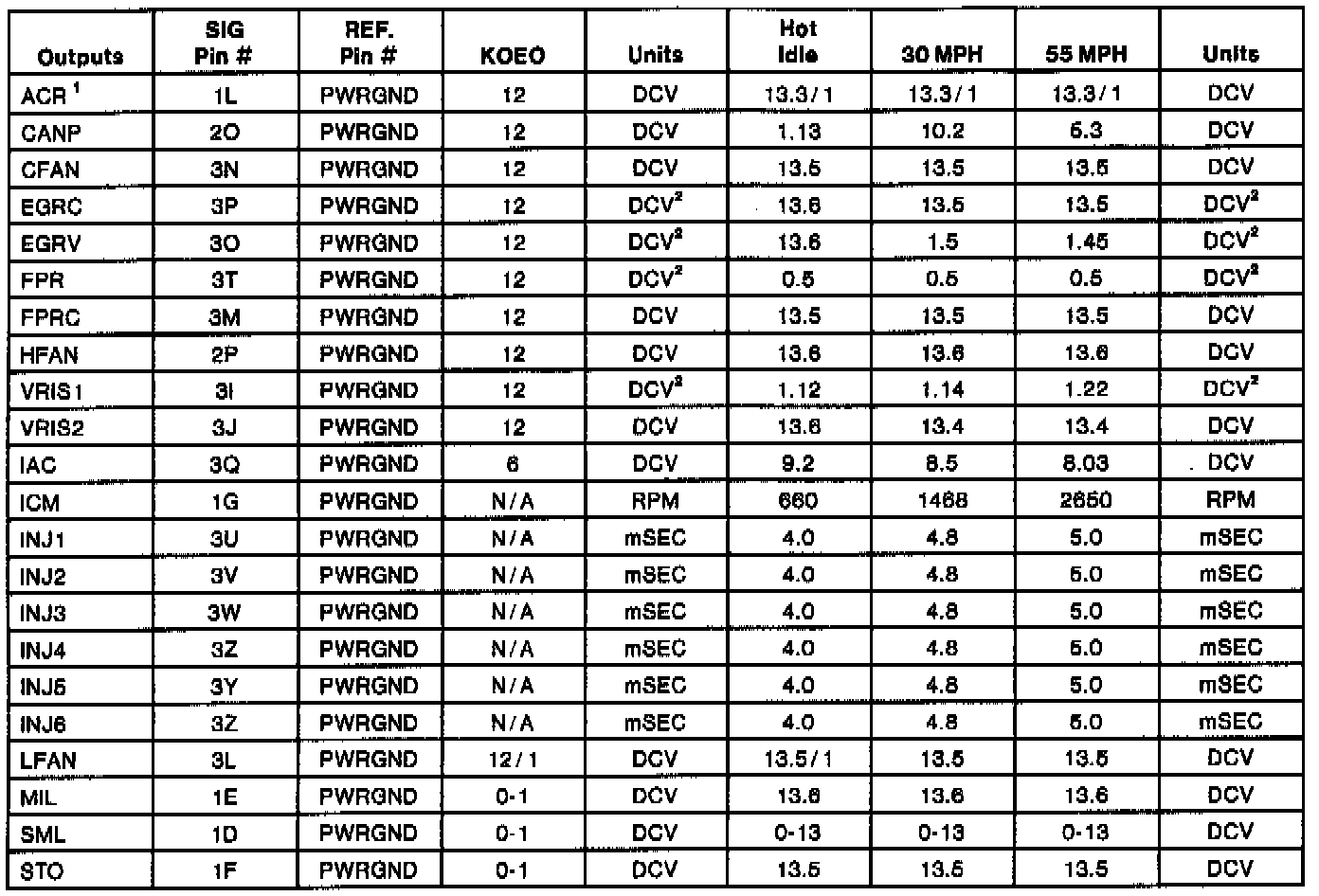

Outputs

Diagnostic Reference Values:

1 Switch is ON with A ICON, blower ON.

2 Use manual DC volts when making measurements.

NOTE: Reference values shown may vary approximately +/- 2O percent depending on operating conditions and other factors.
