Regular Cab

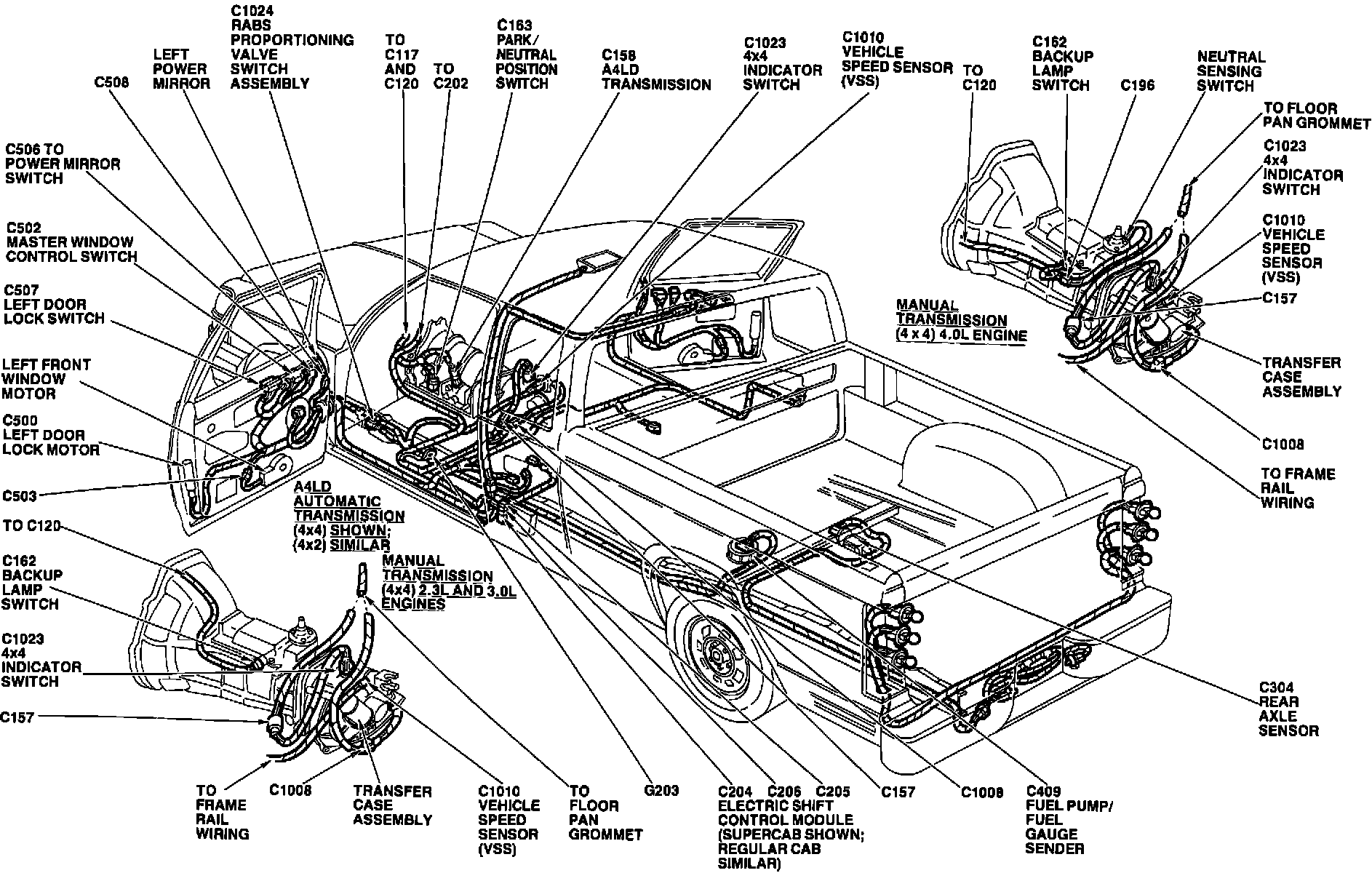

Component Locations:

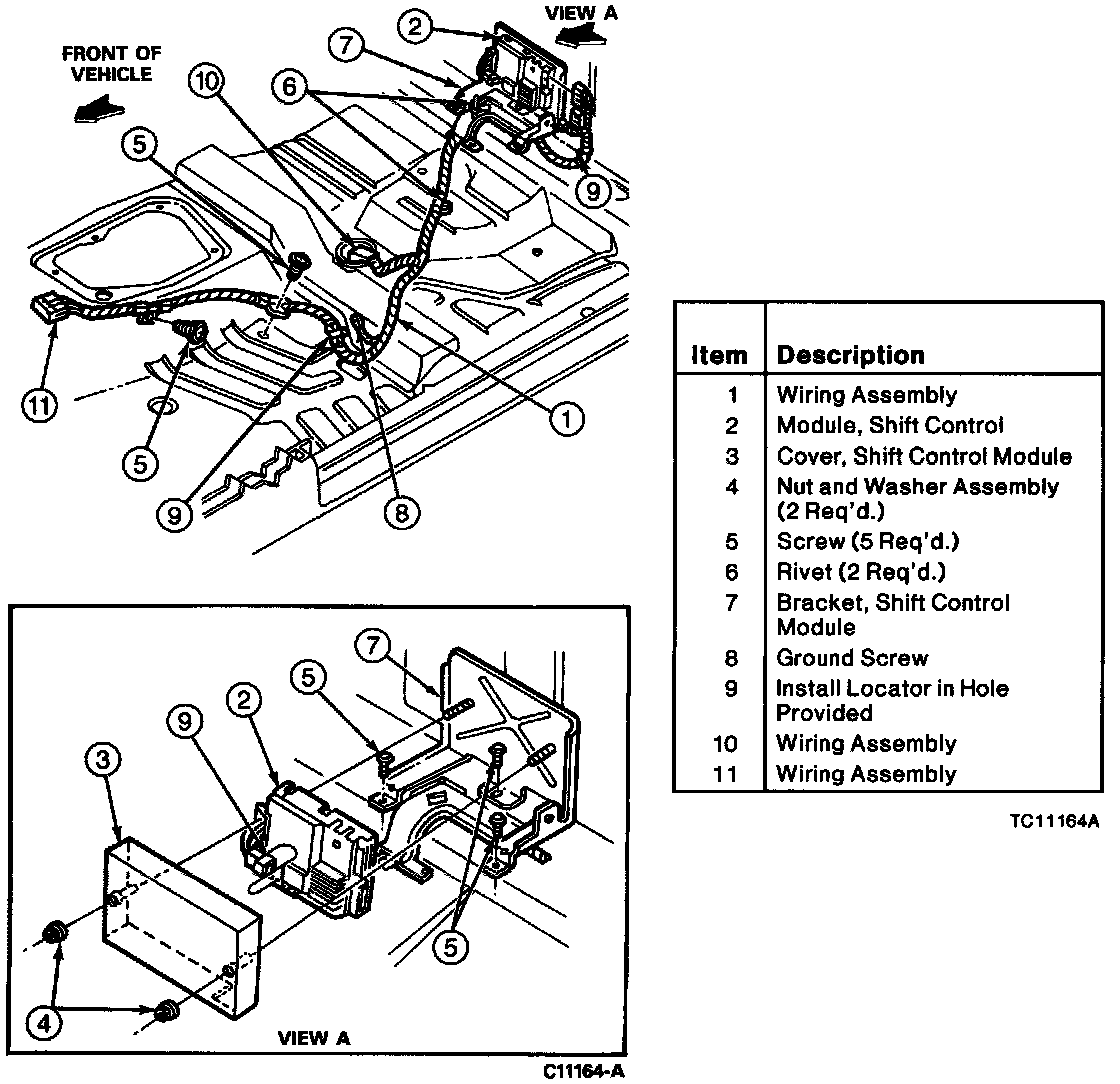

Control Module And Wiring Harness, Ranger Regular Cab:





The Electric Shift Control Module is located at the lower Left Hand rear corner of cab.
