Refrigerant Pressure Sensor / Switch: Locations

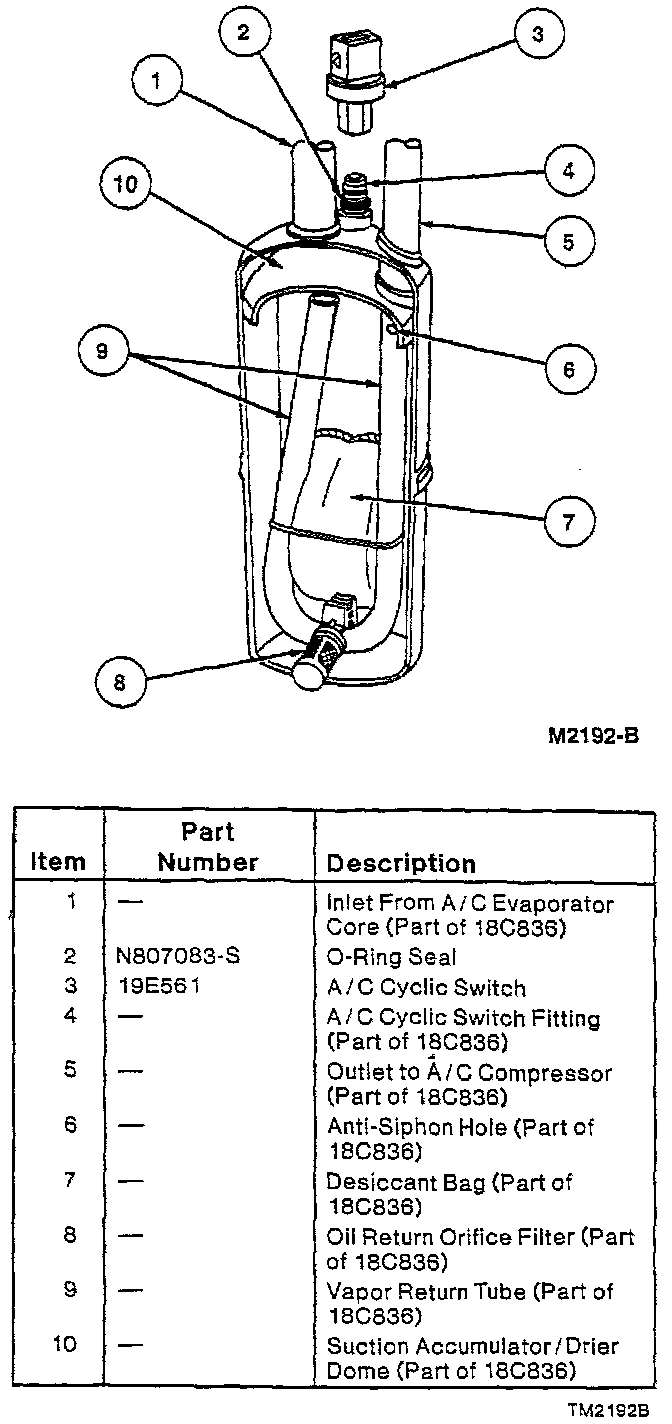

Accumulator/Drier:






The A/C Cycling Switch is located on top of the accumulator.
