Throttle Position Sensor: Locations

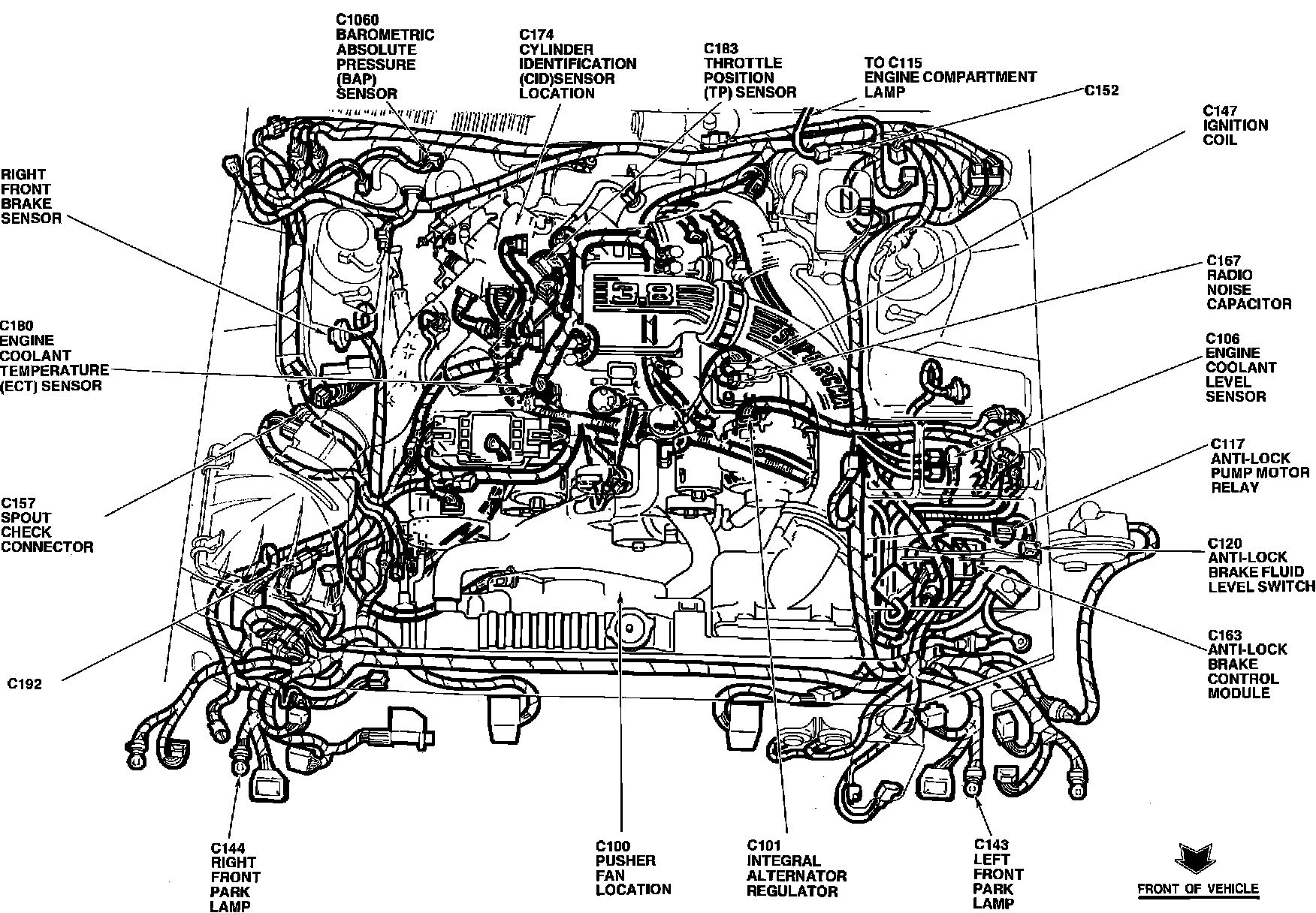

Component Locations:





The Throttle Position Sensor is located at top RH side of engine, on throttle body.
