Engine Views

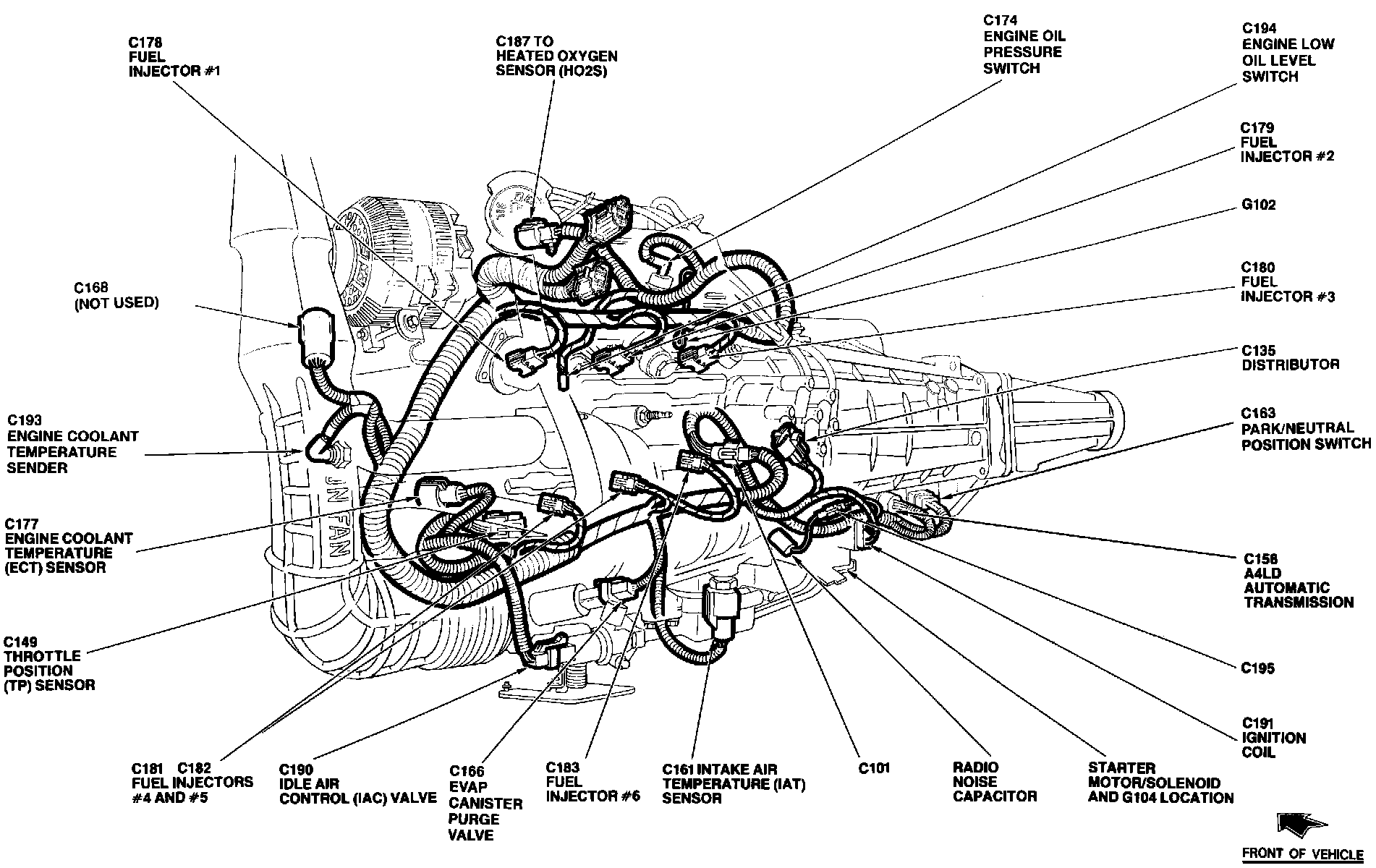

Engine View:

A4LD AUTOMATIC TRANSMISSION
DISTRIBUTOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE LOW OIL LEVEL SWITCH
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
FUEL INJECTORS
HEATED OXYGEN SENSOR
IDLE AIR CONTROL VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE SENSOR
PARK/NEUTRAL POSITION SWITCH
RADIO NOISE CAPACITOR
STARTER MOTOR/SOLENOID
THROTTLE POSITION SENSOR
