Audible Warning Device Control Module: Locations

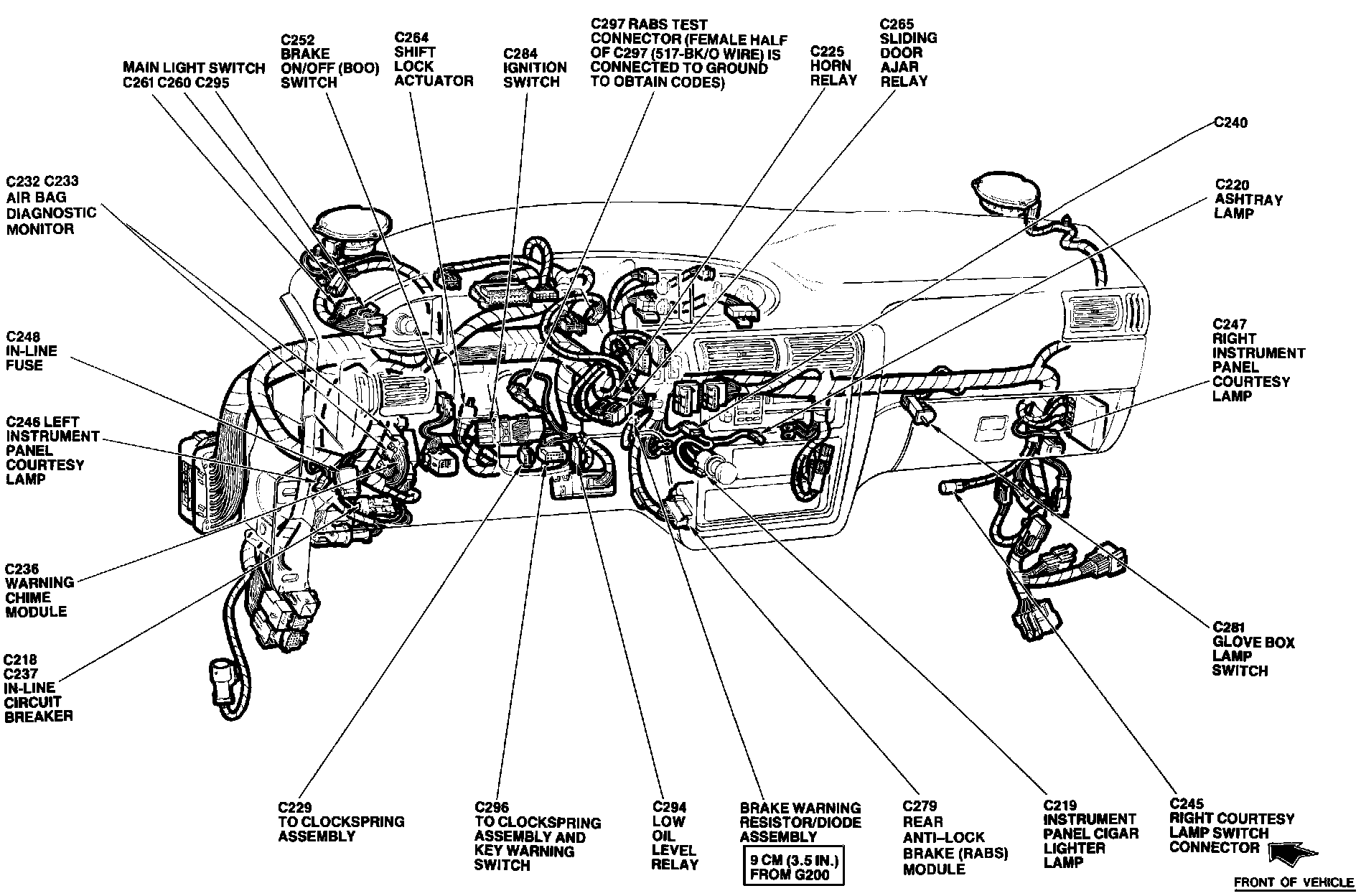

Behind Instrument Panel View:
The Warning Chime Module is located behind LH side of the instrument panel, near top of cowl panel.
