Barometric Pressure Sensor: Locations

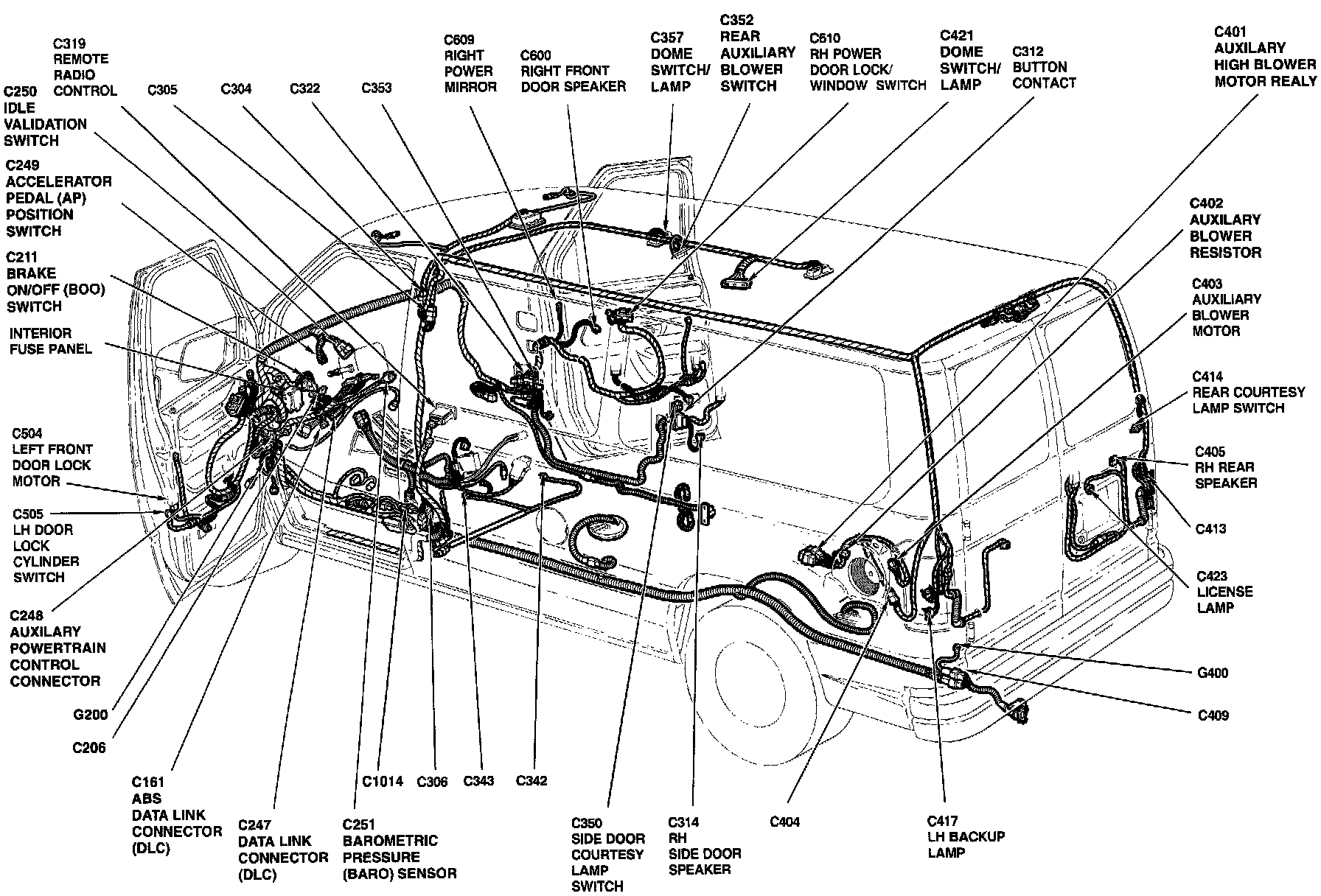

Full Body View (Part 3 Of 3):





The Barometric Pressure Sensor is located behind the LH side of the instrument panel.
